Partiron

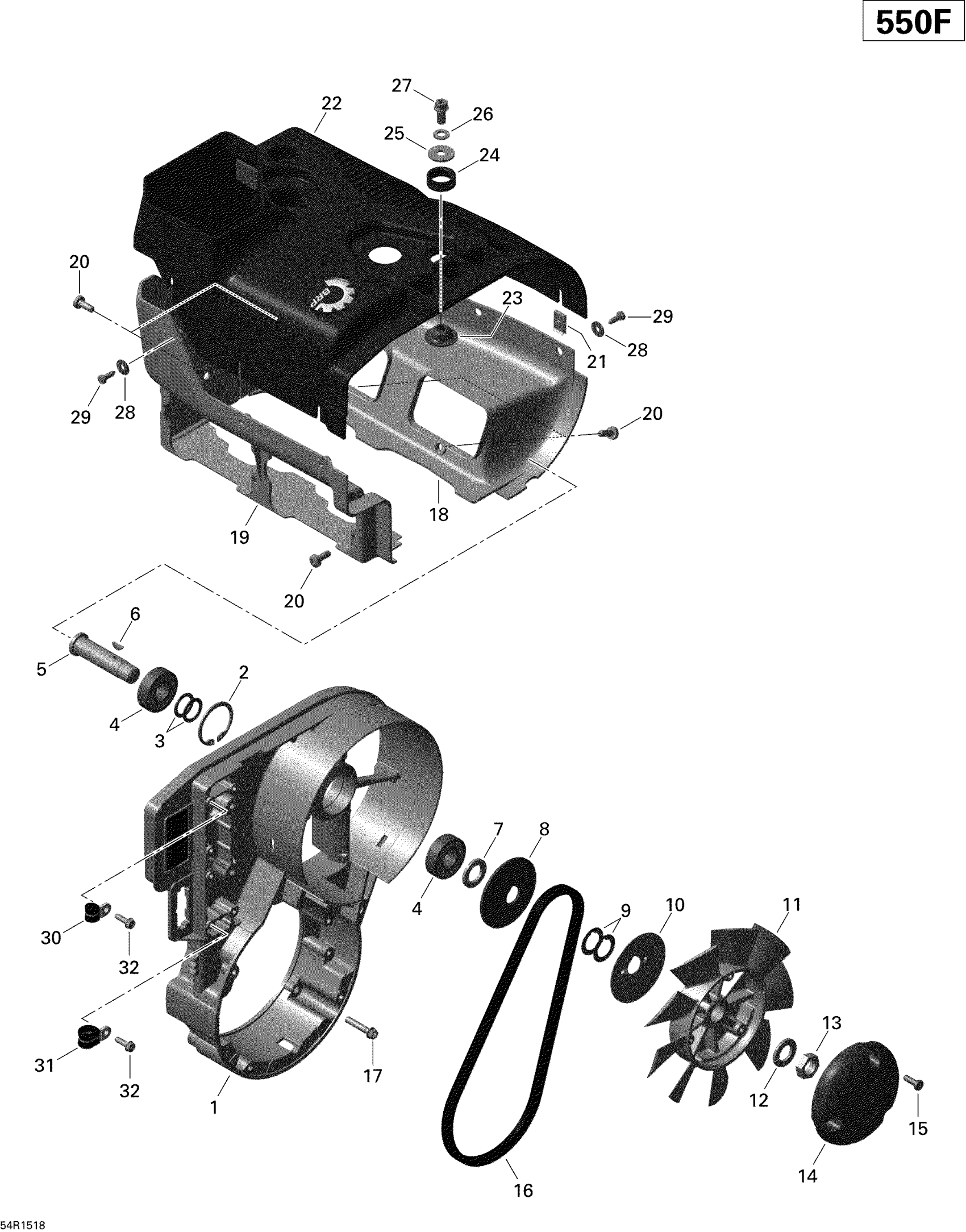

Ski-Doo Expedition Sport 550F XP154, 2015 Fan And Cylinder Cowls _54R1518 Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

Unavailable

2

Lock Ring

420945880

Unavailable

3

Shim

420244585

Unavailable

4

Ball Bearing

420832161

Unavailable

5

Fan Axle This part replaces 420937940.

420937941

Unavailable

6

Woodruff Key

420246015

Unavailable

7

Spacer Bushing

420827650

Unavailable

8

Flange

420980496

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

9

Shim 0.2 mm

420827082

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

9

Shim 0.2 mm

420827082

Unavailable

10

Protection Washer

420980523

Unavailable

11

Fan

420866294

Unavailable

12

Lock Washer

420945756

Unavailable

13

Nut M16 This part replaces 420942285.

420942289

Unavailable

14

Fan Cover

420975900

Unavailable

15

Screw

420841971

Unavailable

16

V-Belt

420980514

Unavailable

17

Torx Flange Screw M6 X 30

420440647

Unavailable

18

Lower Cowling | 550 F.

420811392

Unavailable

19

Lower Cowling

420812605

Unavailable

20

Torx Screw M6 X 16

420640324

Unavailable

21

Spring Nut

420842390

Unavailable

22

Lower Cowling

420910837

Unavailable

23

Cup Washer

420827817

Unavailable

24

Rubber Bushing

420460210

Unavailable

25

Washer This part replaces 420227935.

420227936

Unavailable

26

Washer-Lock Din.128

420945832

Unavailable

27

Torx Flange Screw M8 X 16

420440852

Unavailable

28

Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185.

420841492

Unavailable

29

Tapping Screw M4.8 X 16

417300006

Unavailable

30

Clamp

420851110

Unavailable

31

Clamp

420851250

Unavailable

32

Taptite Screw M5 X 16

420941928

Unavailable
