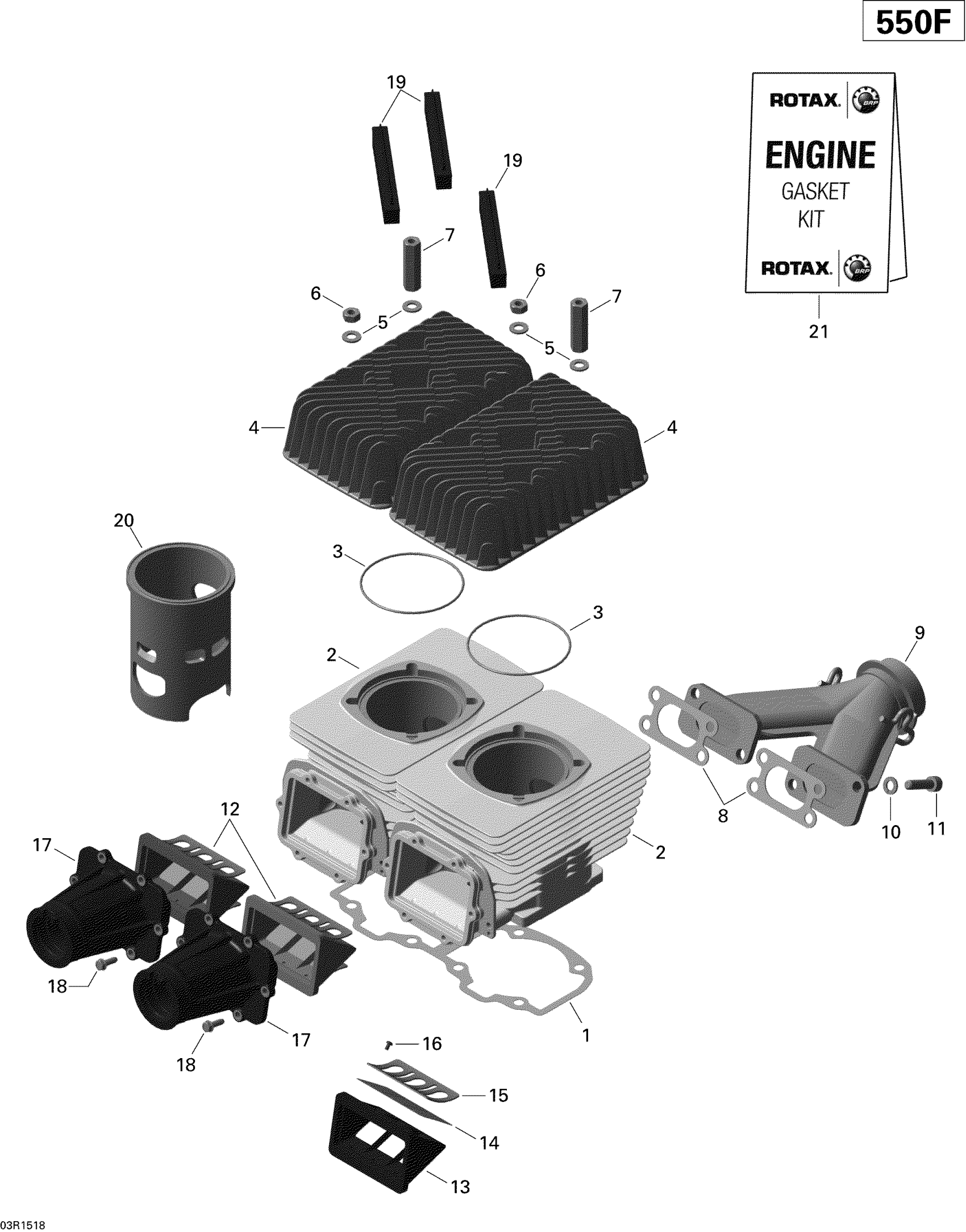

Ski-Doo Expedition Sport 550F XP154, 2015 Cylinder, Exhaust Manifold And Reed Valve _03R1518 Diagram

#

Description

Price

1

Gasket 0.3

420950910

Unavailable

1

Gasket 0.4

420950911

Unavailable

1

Gasket 0.6

420950912

Unavailable

2

Cylinder With Sleeve

420623142

Unavailable

2

Cylinder With Sleeve

420623142

Unavailable

3

O-Ring This part replaces 420850540.

293300026

Unavailable

4

Head Cylinder

420923597

Unavailable

5

Flat Washer 8.4 mm

420250315

Unavailable

6

Hex. Nut M8

232081414

Unavailable

7

Distance Nut M8 X 47

420842204

Unavailable

8

Gasket 1.0 mm

420831849

Unavailable

9

Exhaust Manifold

420673065

Unavailable

10

Washer-Lock Din.128

420945832

Unavailable

11

Socket Head Screw M8 X 30

205083044

Unavailable

12

Reed Valve Ass'y

420924519

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Reed Pedal

420924532

Unavailable

15

Reed Pedal Stop

420924539

Unavailable

16

Phillips Screw M3 X 5

420941215

Unavailable

17

Carburetor Socket

420667600

Unavailable

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Noise Damper

420860091

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Gasket Set, Engine

420889911

Unavailable
