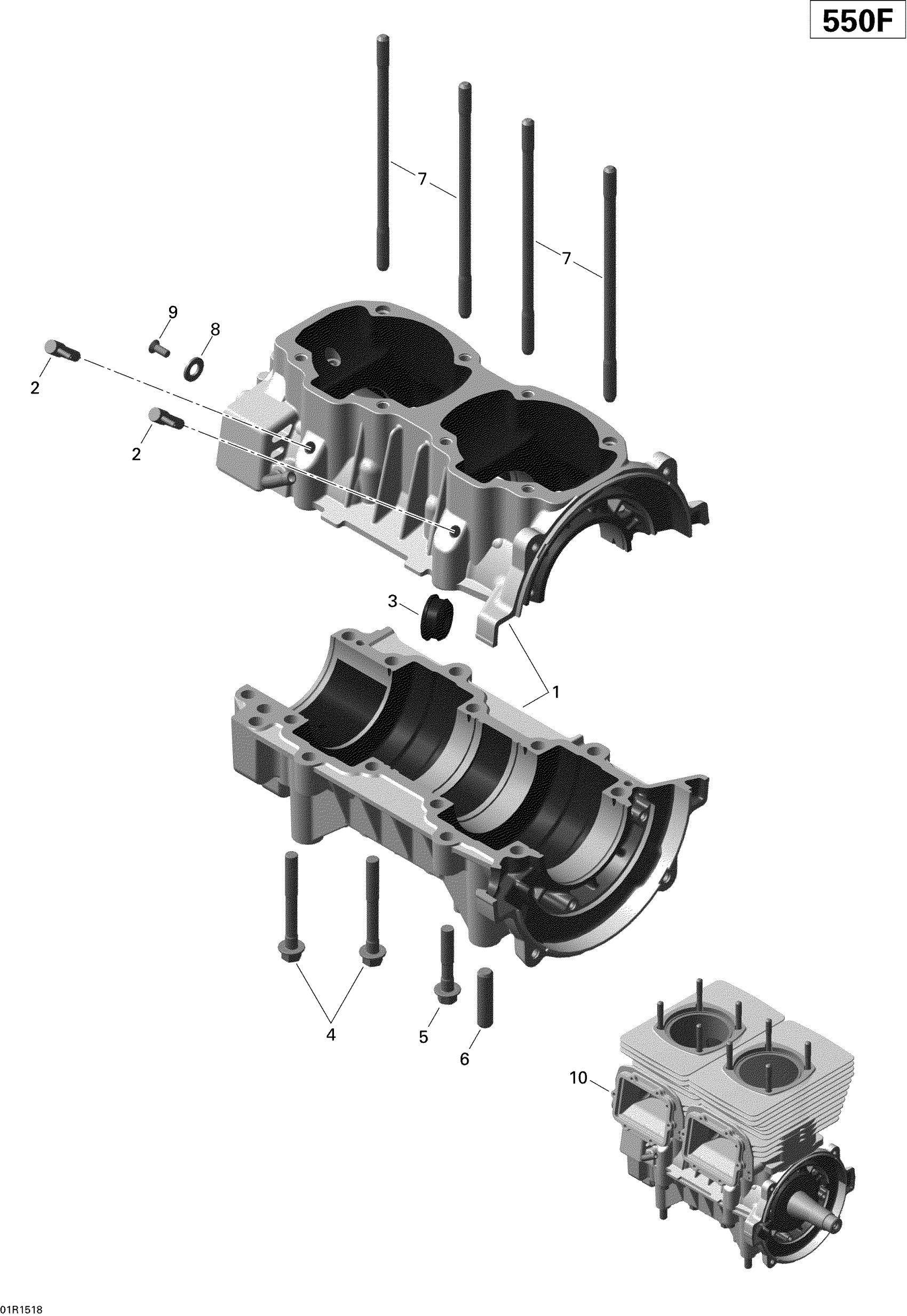

Ski-Doo Expedition Sport 550F XP154, 2015 Crankcase _01R1518 Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

Unavailable

2

Check Valve

420956511

Unavailable

3

Cable Grommet

420860962

Unavailable

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

5

Hex. Collar Screw M8 x 45

420640432

Unavailable

6

Stud M10 X 45

420840266

Unavailable

7

Stud M8 X 173.5

420840556

Unavailable

8

Flat Washer 8.4 mm

420250315

Unavailable

9

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

Unavailable

10

Short Block 552 XP

420055208

Unavailable

10

Short Block 552 XP

420055208

Unavailable
