Description

Price

1

Indicator | Includes 10 to 10c

515177279

$569.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Ignition Swirch

515177063

$50.99

6a

Not Available As Spare Part - Friction Washer

Unavailable

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Brake Switch

515175653

$19.49

8

Switch Nut

515145900

$12.12

9

Plunger Cap

570151100

$9.85

10

Flat Washer

250200084

$3.38

11

RH Threaded Hex. Jam Nut M10

732610010

$0.74

12

Cap Ass'y

515178283

$38.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Visor Harness

515177837

$33.99

16

Cap

572103300

$10.49

17

Extension

515175851

$11.12

18

Voltage Regulator

515176699

$153.49

19

Hex. Flange Screw M6 X 20

210262040

$2.11

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Lock

515176681

$20.99

25

Adhesive Patch

518325560

$4.69

31

Ground Wire

515176745

$28.99

32

Lock Washer Serrated M6

250200041

$1.15

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

35

Serrated Lock Washer 8 mm

234481608

$1.15

53

Protector Cap

710000495

$10.99

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

54

Tie Wrap 142 mm

293750002

$1.25

54

Tie Wrap 368 mm

293750008

$1.04

54

Tie-Rap 173 mm

293750009

$1.04

54

Tie-Rap 180 mm

414115200

$0.11

55

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

55

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

56

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

57

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

58

Cap

515176498

$12.99

59

Rubber Cap Protector

219800280

$19.49

60

Torx Screw M6 X 20

250000722

$1.68

61

Panel Nut M6 X 1.0

250100198

$2.11

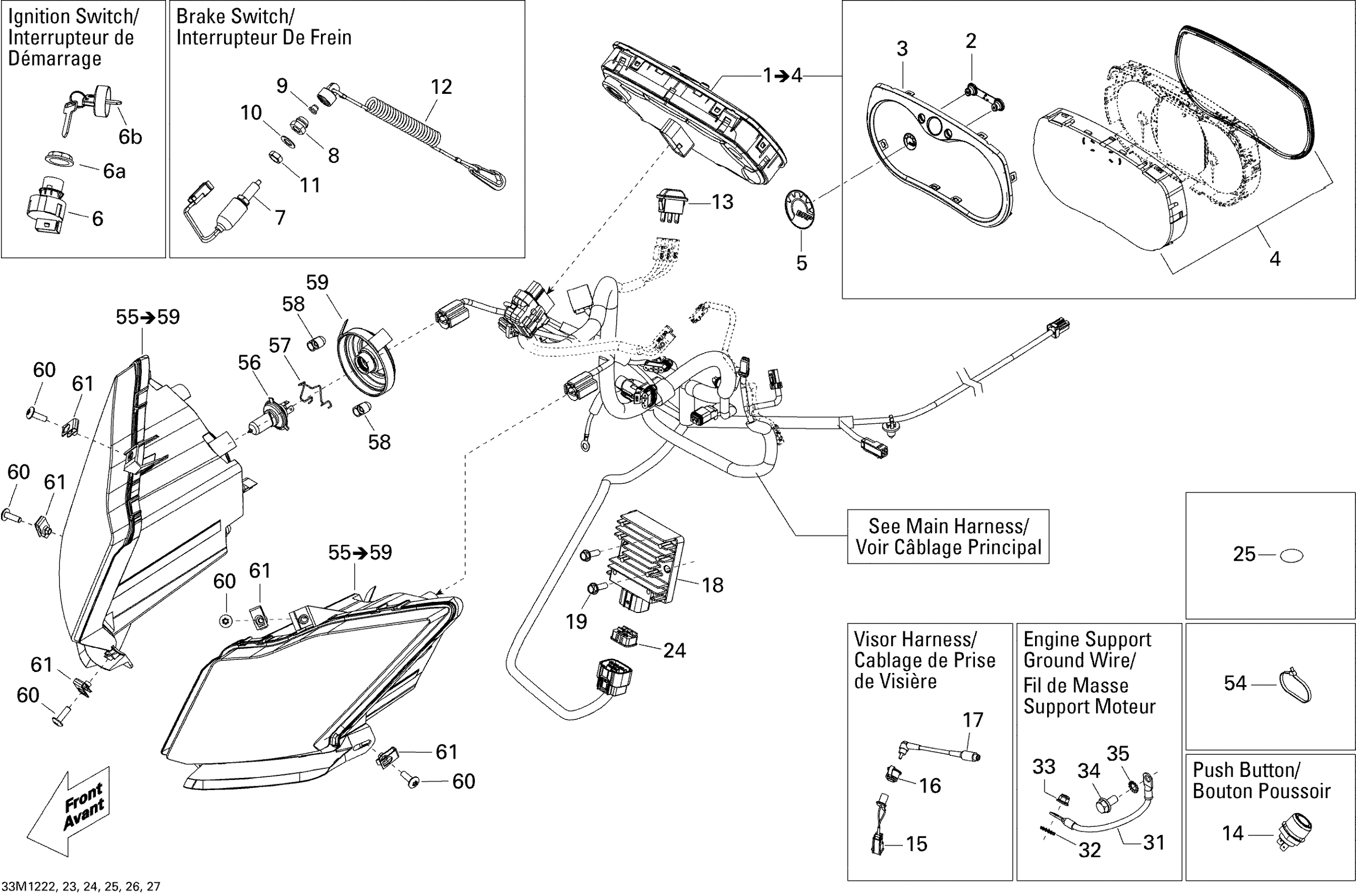

Ski-Doo Expedition Sport 550F XP-FAN, 2012 10- Electrical System Diagram
