Description

Price

1

Front Seat Base

510004775

$93.99

2

Seat Cover

510005181

$219.99

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

6

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

7

Foam Support

510004423

$38.99

8

Pop Rivet 3/16”

390410100

$0.57

9

Pop Rivet 3/16"

293150100

$1.09

10

Rear Seat Cover

510005399

$230.99

11

Rear Seat Foam

510004791

$294.99

12

Black, Dart

414644300

$0.98

13

Backrest Foam

510004782

$124.99

14

Backrest Cover | Not Shown

510005309

$176.99

15

Upper Backrest Axle

510004377

$44.99

16

Washer

510004379

$10.01

17

Rubber Shim

510004378

$10.99

18

RH ARM, BLACK - Call your local BRP dealership

510005548

Unavailable

19

LH ARM, BLACK - Call your local BRP dealership

510005549

Unavailable

20

Hex Torx Truss M8 X30

250000745

$3.17

21

Hex Torx Truss M8 X30

250000745

$3.17

22

Flat Washer 8 mm

250200128

$4.44

23

COURROIE DE SIEGE - Call your local BRP dealership

510004768

Unavailable

24

Rivet | Model-T3

293150067

$2.89

25

Spacer

271000558

$8.89

26

Flat Washer

224061201

$1.37

27

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

28

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

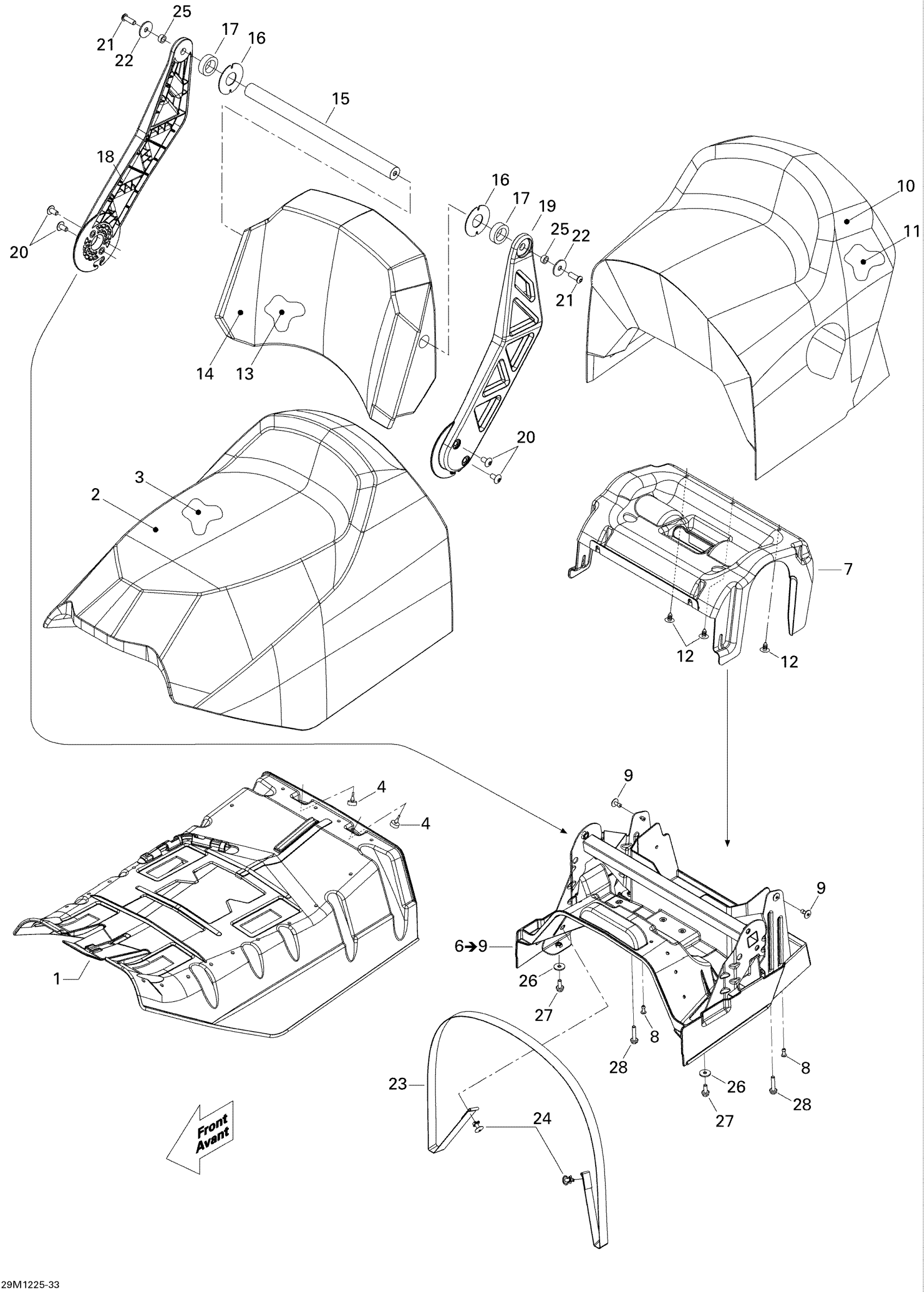

Ski-Doo Expedition Sport 550F XP-FAN, 2012 09- Seat Diagram

Front Seat Base

Seat Cover

Front Seat Foam

Rubber Stopper

Seat Base Ass'y | Includes 20a to 20a3

Foam Support

Pop Rivet 3/16”

Pop Rivet 3/16"

Rear Seat Cover

Rear Seat Foam

Black, Dart

Backrest Foam

Backrest Cover | Not Shown

Upper Backrest Axle

Washer

Rubber Shim

RH ARM, BLACK - Call your local BRP dealership

LH ARM, BLACK - Call your local BRP dealership

Hex Torx Truss M8 X30

Hex Torx Truss M8 X30

Flat Washer 8 mm

COURROIE DE SIEGE - Call your local BRP dealership

Rivet | Model-T3

Spacer

Flat Washer

Hex. Screw M6 X 16, Scotch Grip | Europe

Hex. Flange Screw M6 X 30, Scotch Grip
