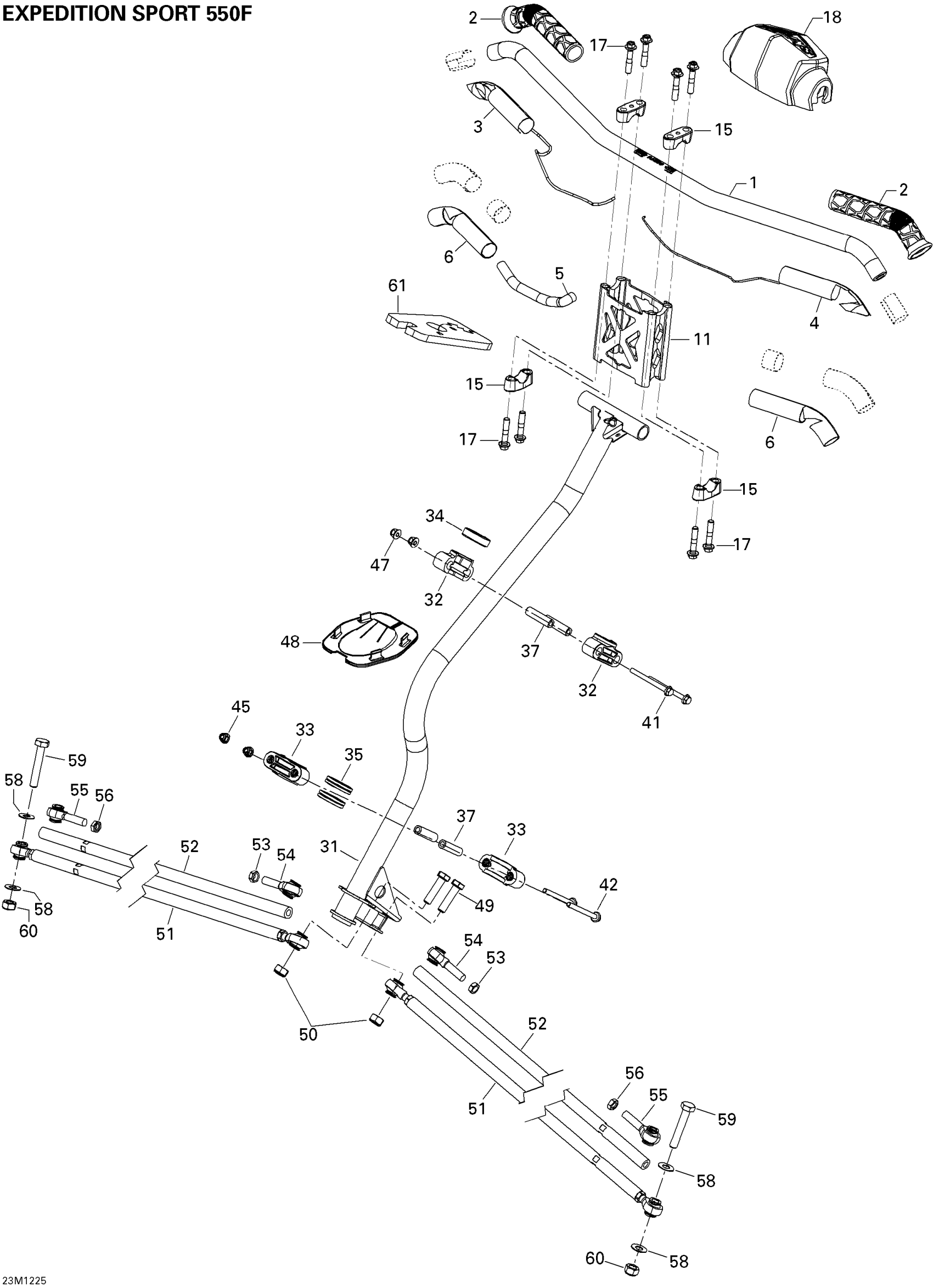

Ski-Doo Expedition Sport 550F XP-FAN, 2012 07- Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152710

Unavailable

2

Grip

506152486

$16.34

3

Heating Element 20W

506152484

Unavailable

4

Heating Element 20W

506152516

Unavailable

5

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

6

Insulant

506152360

$6.29

11

Riser Kit

860200820

$84.99

15

Steering Support | Includes 40 to 40a

506152751

$13.99

17

Hex. Flange Screw M8 X 40

250000352

$3.38

18

Steering Pad

506152192

$58.99

31

Steering Column

506152963

$309.99

32

Upper Half-Housing

506152508

$9.23

33

Lower Half-Housing

506152217

$7.62

34

Upper Anti-Vibration Gasket

506152509

$4.79

35

Lower Vibration Ring

506152518

$4.79

37

Housing Bushing

506152297

$12.99

41

Hex. Flange Screw M6 X 70

207667056

$4.44

42

Hex. Flange Screw M6 X 70

207667044

$0.85

45

Elastic Flange Nut M6 X 1.0

233261416

$2.11

47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

48

Plate

506152163

$12.99

49

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

50

Elastic Stop Nut M10

232500416

$1.90

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Tie-Rod

506152498

$38.99

53

LH Thread Ball Joint

506152081

$41.49

54

LH Threaded Hex. Jam Nut M10

250100016

$0.74

55

RH Threaded Ball Joint

506152019

$41.49

56

RH Threaded Hex. Jam Nut M10

732610010

$0.74

58

Washer

506152194

$4.55

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.90

61

Bushing

506152521

$15.79
