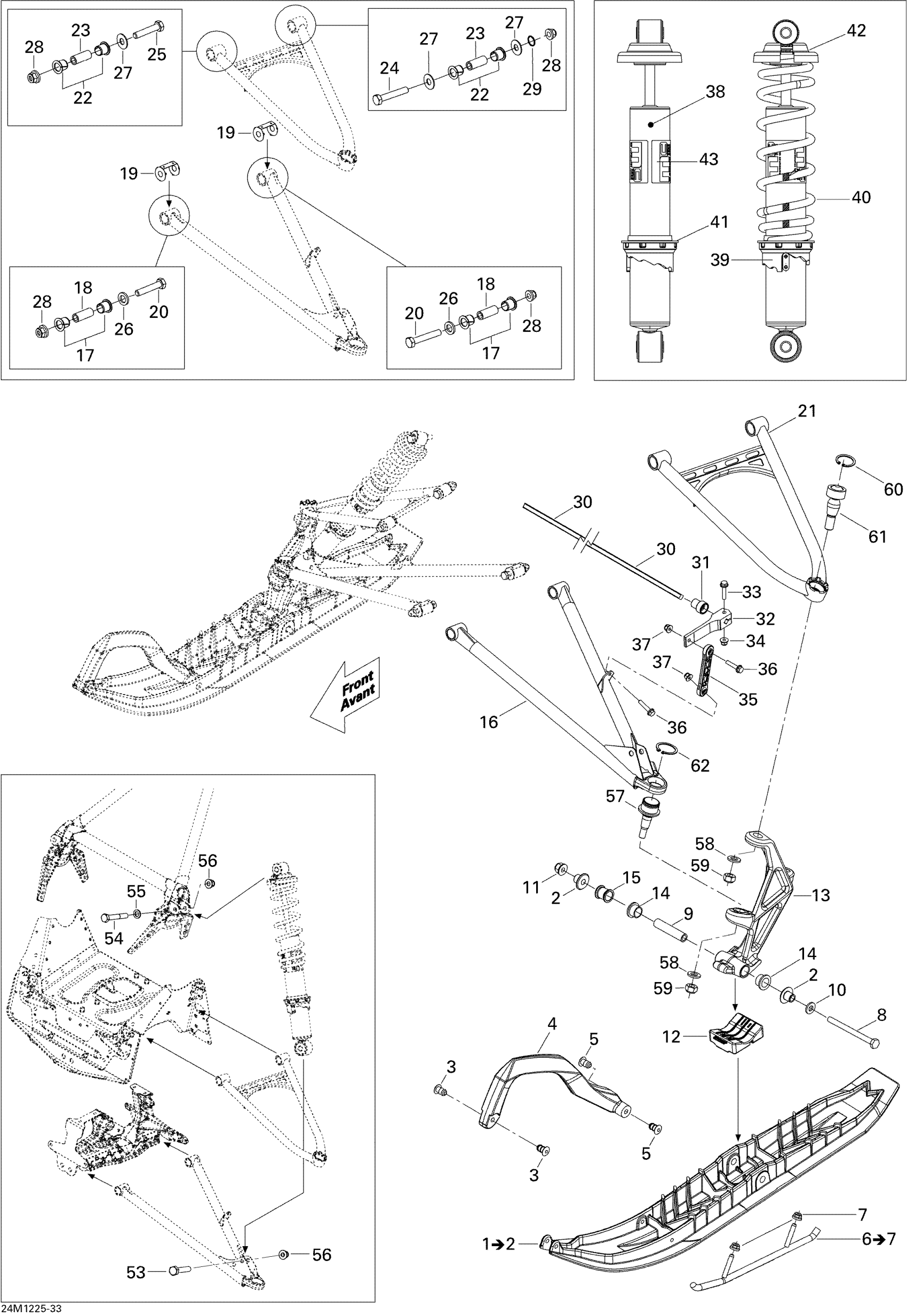

Ski-Doo Expedition Sport 550F XP-FAN, 2012 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505072976

$34.30

5

Retainer 23mm Long

505072133

$4.88

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

9

Spacer

506133300

$19.37

10

Washer

732900049

$0.55

11

Hex. Flange Elastic Nut M10

233201414

$1.45

12

Ski Stopper

505072594

$17.13

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$183.55

13

Clear RH Ski Leg

505073012

$226.09

14

Leg Bushing

505072690

$5.75

15

Spacer

505071999

$12.31

16

Black, RH Lower Arm

505072497

$184.30

16

Black, LH Lower Arm

505072498

$184.30

17

Bushing

505072208

$3.04

18

Sleeve

505072209

$13.96

19

Wear Plate

505072634

$4.31

20

Screw Hex. M10 X 70

250001024

$2.00

21

LH Upper Arm 39"

505073468

$138.03

21

RH UPPER ARM - Call your local BRP dealership

505073076

Unavailable

22

Bushing

505072250

$3.04

23

Sleeve

505072143

$8.36

24

Screw Hex. M10 X 60

250001023

$2.00

25

Screw Hex. M10 X 50

250001022

$1.63

26

Washer

503189564

$0.70

27

Washer

505072392

$4.51

28

Hex. Flange Elastic Nut M10

250100165

$0.81

29

O-Ring

505072448

$2.18

30

Stabilisator

505072602

$70.12

31

Bushing

505072064

$2.15

32

Stabilisator Lever

505072394

$15.64

33

Hex. Flange Screw M6 X 30

207663046

$1.63

34

Elastic Flange Nut M6 X 1.0

233261416

$2.00

35

Sway Bar Double Joint Link

505072204

$18.63

36

Hex. Flange Screw M6 X 30

207663046

$1.63

37

Elastic Flange Nut M6 X 1.0

233261416

$2.00

38

Front Shock

505073181

$152.96

39

Adjustment Cam

505073625

$11.82

40

Full Moon Spring

505072897

$64.90

41

Spring Guide

503187500

$8.46

42

Spring Stopper

706200881

$11.82

43

SHOCK DECAL - Call your local BRP dealership

516004534

Unavailable

53

Hex. Screw M10 X 55

207005544

$2.12

54

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

55

Washer

503189564

$0.70

56

Hex. Flange Elastic Nut M10

233201414

$1.45

57

Ball Joint

505073636

$48.48

58

Flat Washer 12 mm

234021410

$0.66

59

Hex. Elastic Hex. Nut M12

250100089

$0.45

60

Circlip

293370070

$6.81

61

Upper Ball Joint

505072913

$67.88

62

Circlip

293370035

$2.48
