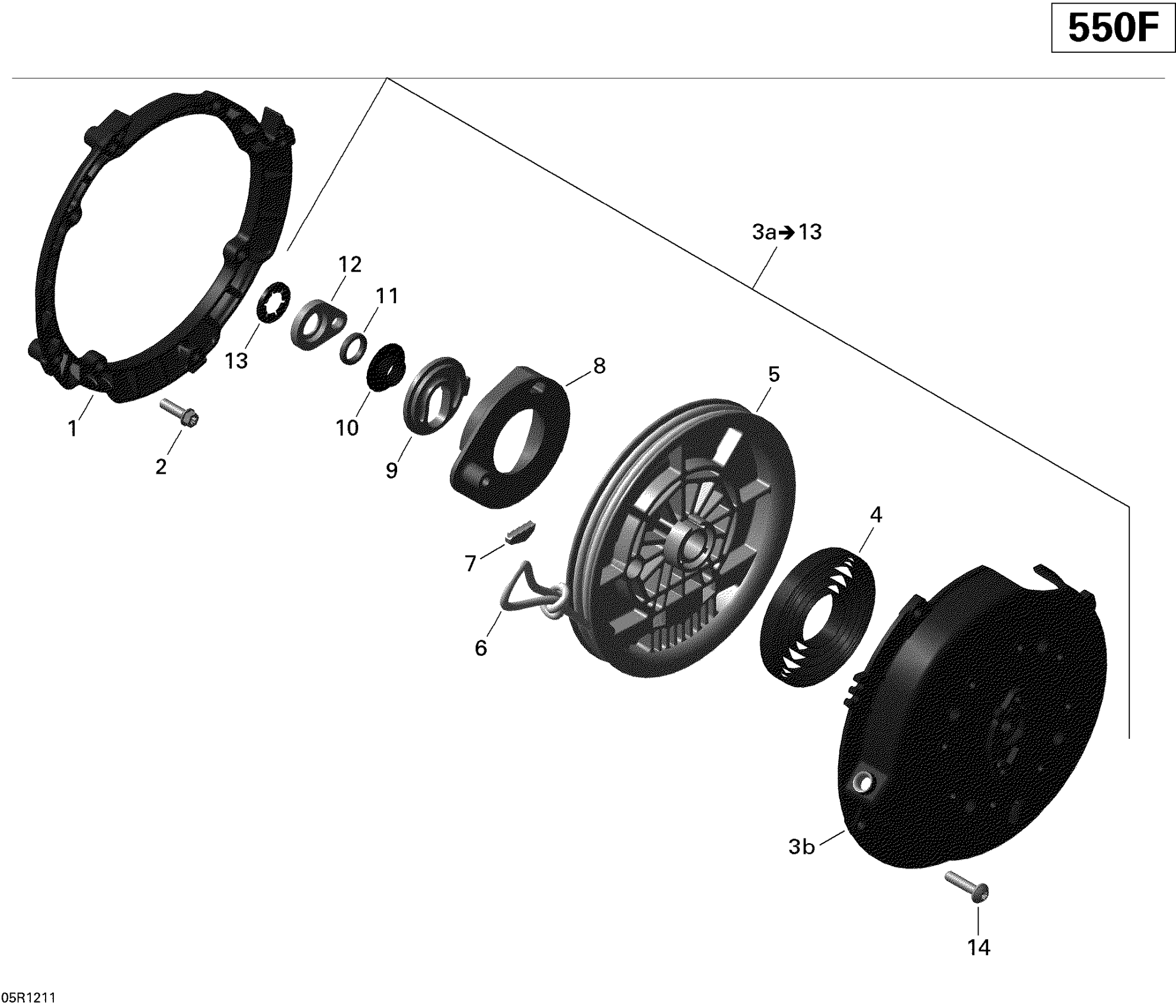

Ski-Doo Expedition Sport 550F XP-FAN, 2012 Rewind Starter Diagram

#

Description
Price

1

Flange Connector

420810955

$110.99

2

Torx Flange Screw M6 X 20

420440207

$3.06

3a

Rewing Starter Ass'y | Includes 3a to 13

420890175

$185.49

3b

Not Available As Spare Part - Friction Washer

Unavailable

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852480

$63.99

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Key Clamp

420852070

$4.23

8

Pawl

420852296

$20.99

9

Pawl Lock | Includes no. 8-9

420852640

$6.99

10

Stage Sleeve

420847926

$16.33

11

O-Ring

420250400

$5.39

12

Lock Ring

420852520

$9.27

13

Locking Element

420845560

$2.11

14

Plastite Screw

420940431

$7.65
