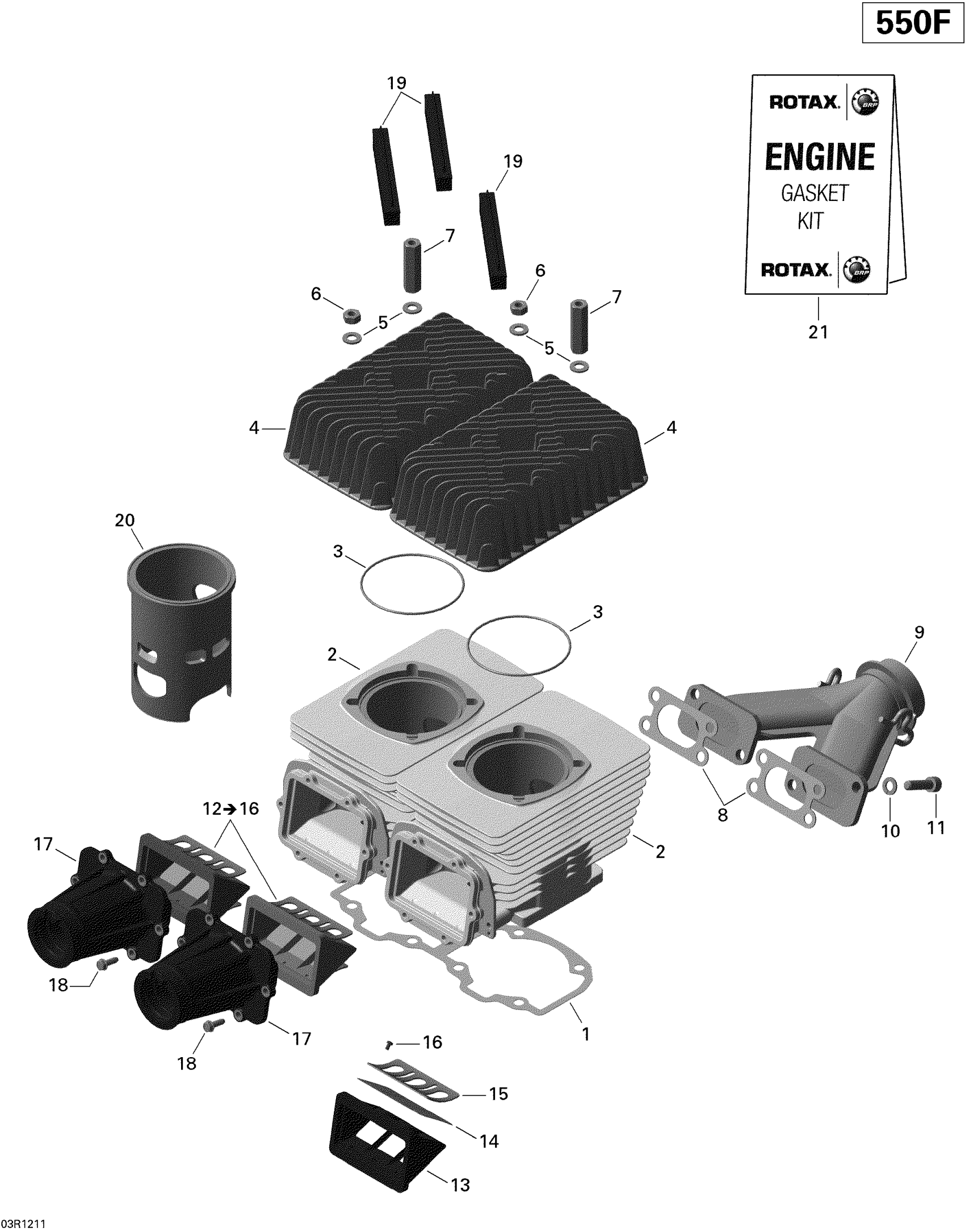

Ski-Doo Expedition Sport 550F XP-FAN, 2012 01- Cylinder, Exhaust Manifold And Reed Valve Diagram

#

Description

Price

1

Gasket 0.3

420950910

$17.39

1

Gasket 0.4

420950911

$19.99

1

Gasket 0.6

420950912

$19.99

2

Cylinder With Sleeve

420623142

$393.99

2

Cylinder With Sleeve

420623142

$393.99

3

O-Ring This part replaces 420850540.

293300026

$3.39

4

Head Cylinder

420923597

$212.99

5

Flat Washer 8.4 mm

420250315

$1.15

6

Hex. Nut M8

232081414

$0.72

7

Distance Nut M8 X 47

420842204

$16.33

8

Gasket 1.0 mm

420831849

$8.85

9

Exhaust Manifold

420673065

$339.99

10

Washer-Lock Din.128

420945832

$1.15

11

Socket Head Screw M8 X 30

205083044

$1.15

12

Reed Valve Ass'y

420924519

$54.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Reed Pedal

420924532

$42.49

15

Reed Pedal Stop

420924539

$13.16

16

Phillips Screw M3 X 5

420941215

$1.69

17

Carburetor Socket

420667600

$116.49

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Noise Damper

420860091

$14.83

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Gasket Set, Engine

420889911

$91.99
