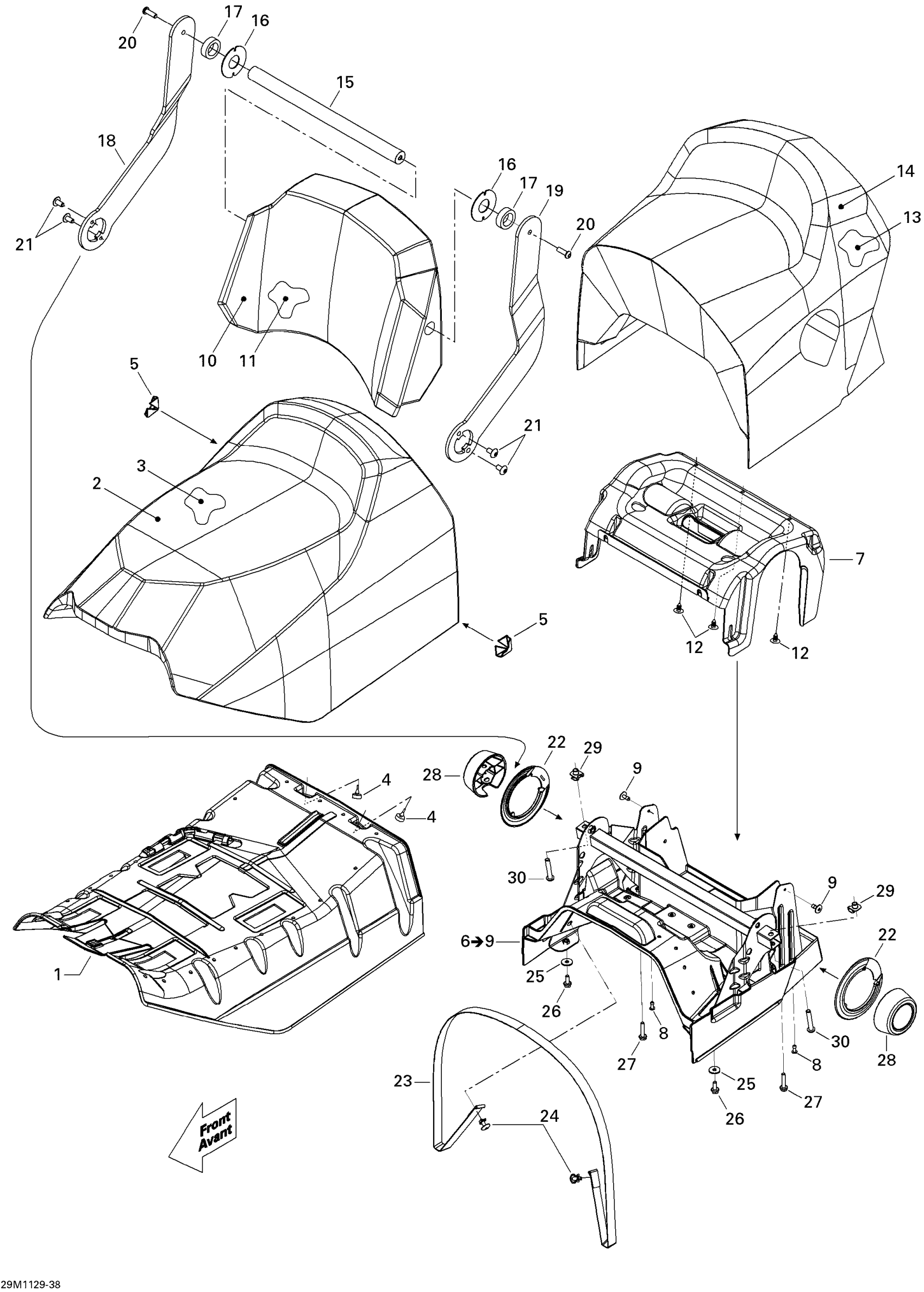

Ski-Doo Expedition Sport 550F XP-FAN, 2011 09- Seat Diagram

#

Description
Price

1

Front Seat Base

510004775

$93.99

2

Seat Cover

510005181

$219.99

3

Front Seat Foam

510004777

$219.99

4

Rubber Stopper

708000759

$4.19

5

SEAT CORNER, BLACK - Call your local BRP dealership

510004963

Unavailable

6

Seat Base Ass'y | Includes 6 to 9

510005182

Unavailable

7

Foam Support

510004423

$38.99

8

Pop Rivet 3/16”

390410100

$0.57

9

Pop Rivet 3/16"

293150100

$1.09

10

Rear Seat Cover

510005399

$230.99

11

Rear Seat Foam

510004791

$294.99

12

Black, Dart

414644300

$0.98

13

Backrest Foam

510004782

$124.99

14

Backrest Cover | Not Shown

510005309

$176.99

15

Upper Backrest Axle

510004377

$44.99

16

Washer

510004379

$10.01

17

Rubber Shim

510004378

$10.99

18

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

19

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

20

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

21

Torx Truss Screw M8 X 16

250000746

$3.38

22

SPACER - Call your local BRP dealership

510004713

Unavailable

23

COURROIE DE SIEGE - Call your local BRP dealership

510004768

Unavailable

24

Rivet | Model-T3

293150067

$2.89

25

Flat Washer

224061201

$1.37

26

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

27

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

28

CAP - Call your local BRP dealership

510004481

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable
