Description

Price

1

Luggage Rack

511000705

$121.99

2

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

3a

Not Available As Spare Parts

XXX

Unavailable

3b

RH Cap

520000985

$19.99

3c

LH Cap

520000986

$18.49

4

Rear Light Ass'y

520000679

$105.99

5

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

6

Male Housing, 3 Circuits

515175494

$16.18

7

Male Terminal

515175232

$1.58

8

Bulb

520000758

$9.10

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

Stopper Rubber

705014429

$5.95

11

Rear Light Support

511000625

$45.99

12

Rear Cover Support | Not Shown

511000701

$37.99

13

Tie Wrap 142 mm

293750002

$1.25

14

Pop Rivet 3/16"

293150103

$0.55

15

Hex. Flange Screw M6 X 20

207662044

$2.00

16

Flat Washer 6 mm

234062410

$0.77

17

Screw M4 X 16

250000725

$3.49

18

Panel Nut M5 X 0.8

250000958

$4.23

19

Torx Screw M5 X 20

250000724

$1.69

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

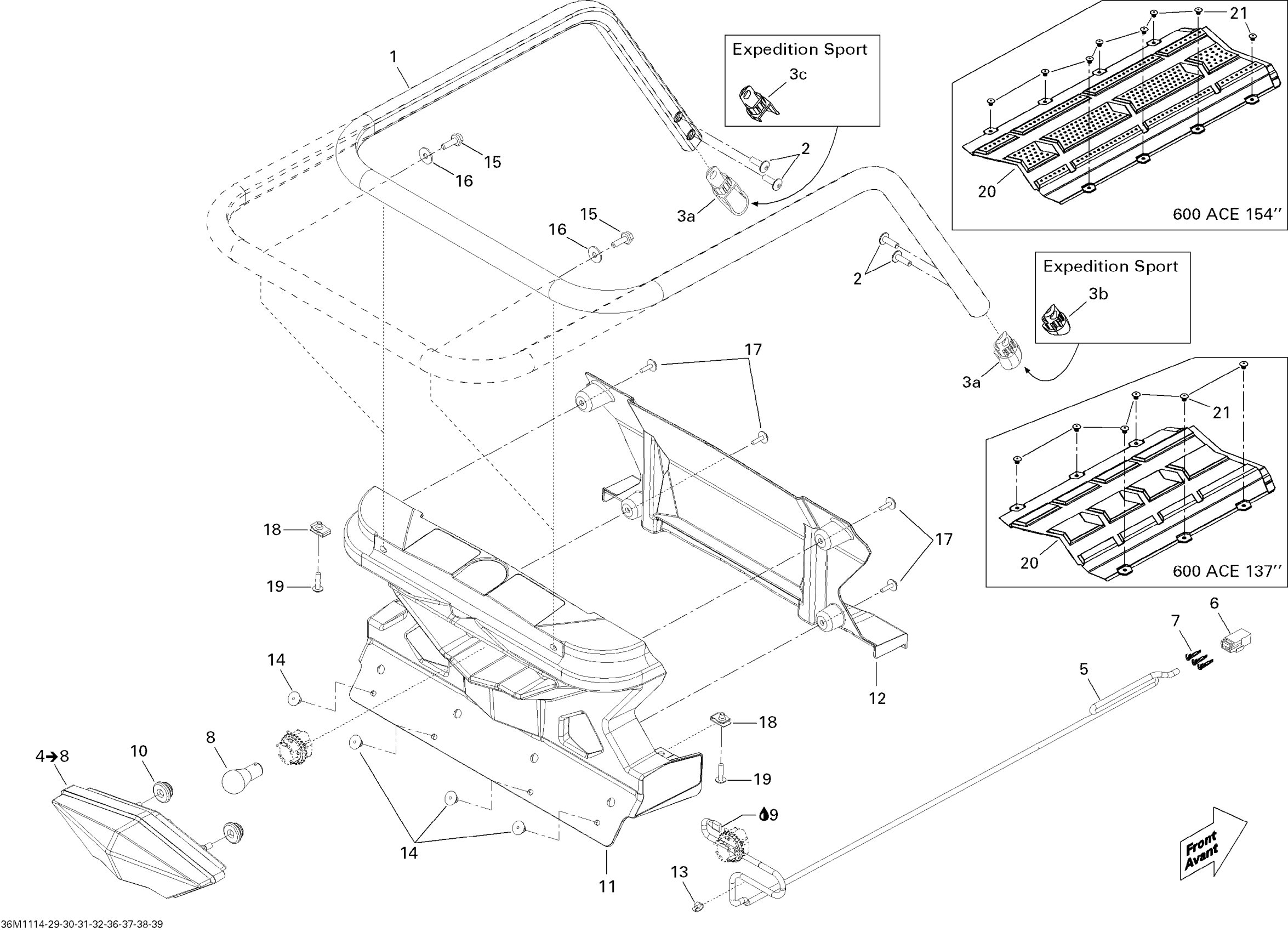

Ski-Doo Expedition Sport 550F XP-FAN, 2011 09- Luggage Rack Diagram

Luggage Rack

Torx Screw M6 X 20, Scotch Grip

Not Available As Spare Parts

RH Cap

LH Cap

Rear Light Ass'y

WIRING HARNESS ASS'Y - Call your local BRP dealership

Male Housing, 3 Circuits

Male Terminal

Bulb

Was 293550004 Dielectric Grease, 150 g

Stopper Rubber

Rear Light Support

Rear Cover Support | Not Shown

Tie Wrap 142 mm

Pop Rivet 3/16"

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Screw M4 X 16

Panel Nut M5 X 0.8

Torx Screw M5 X 20

Not Available As Spare Parts

Not Available As Spare Parts
