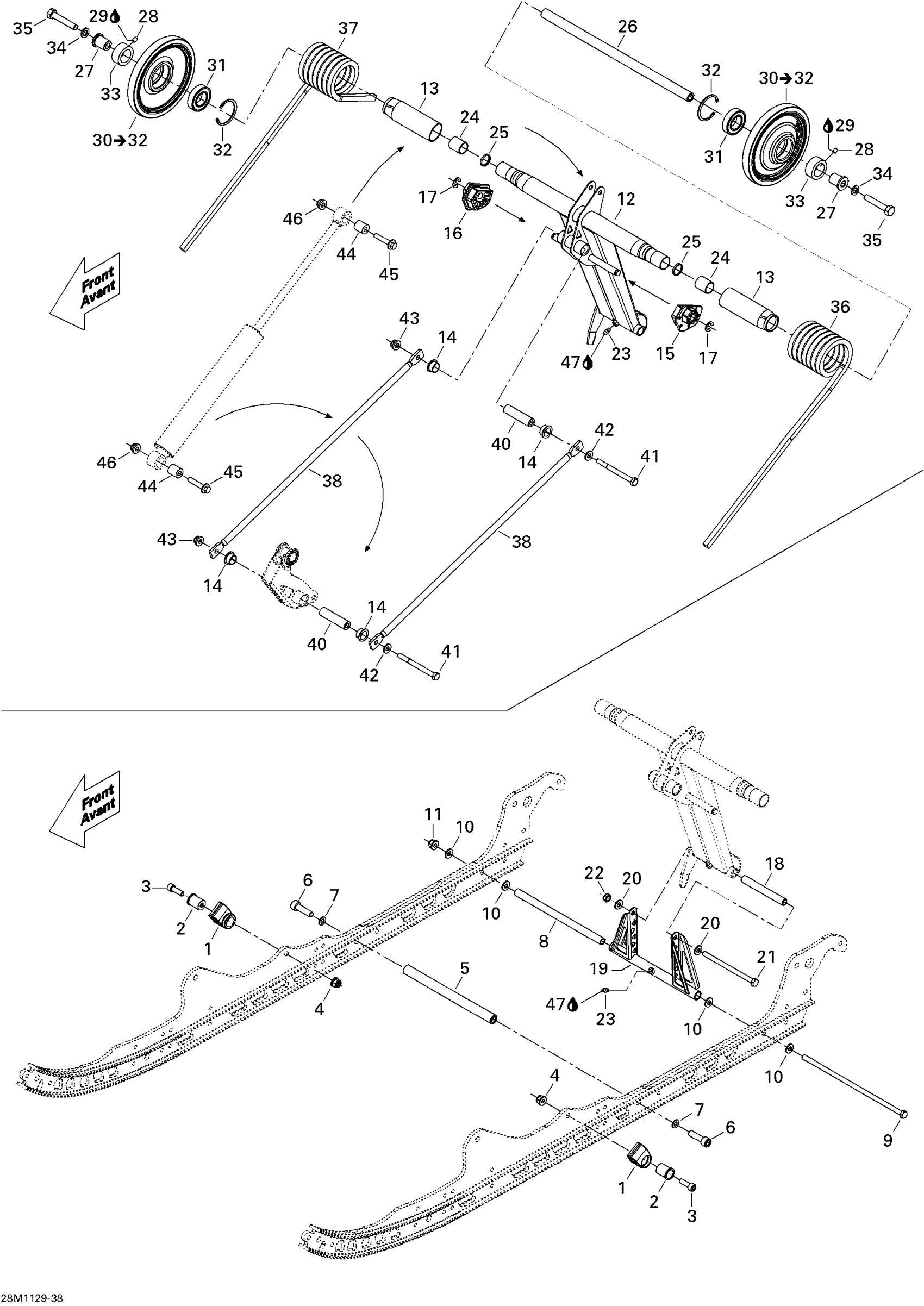

Ski-Doo Expedition Sport 550F XP-FAN, 2011 08- Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Elastic Flange Nut M8

250100131

Unavailable

5

Axle Strap

503191260

$30.99

6

SOCKET SCREW M10 X 35 - Call your local BRP dealership

250000478

Unavailable

7

Washer

503192496

$0.77

8

Pivot Arm Axle

503189156

$21.99

9

Bolt M8 X 248mm

503192440

$30.49

10

Washer

503189157

$3.28

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

13

Bushing

572080700

$17.39

14

Swivel Bushing

503191555

$7.83

15

LH Cam Adjuster

503191565

$16.49

16

RH Cam Adjuster

503191566

$16.49

17

E-Circlip

293370013

$0.65

18

Upper Axle, Pivot Arm

503144300

$11.65

19

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

20

Washer

503189157

$3.28

21

Bolt M8, Short

732601197

$15.36

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Grease Fitting

408200700

$3.49

24

Extended Bushing

503191556

$7.83

25

Washer

503191651

$8.32

26

Upper Shaft

503191215

$38.99

27

Bushing

503191262

$15.79

28

Socket Set Screw M6 X 8

206260844

$1.48

29

Loctite 243, 10 ml

293800060

$21.49

30

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

31

Ball Bearing

503193548

$17.99

32

Retaining Ring

415129371

$12.01

33

Retaining Ring

503168800

$14.99

34

Washer

503189564

$0.74

35

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

36

Black, LH Spring Square

503192271

$80.49

37

Black, RH Spring Square

503192270

$80.49

38

Link Rod

503191765

$18.49

40

Axle Bar (Long)

503190643

$17.39

41

Hex. Screw M8 X 90

207089044

$3.48

42

Washer

503189157

$3.28

43

Hex. Flange Elastic Nut M8

233281414

$1.47

44

Bushing

414936000

$13.99

45

Hex. Flange Screw M8 X 40

207684044

$1.48

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
