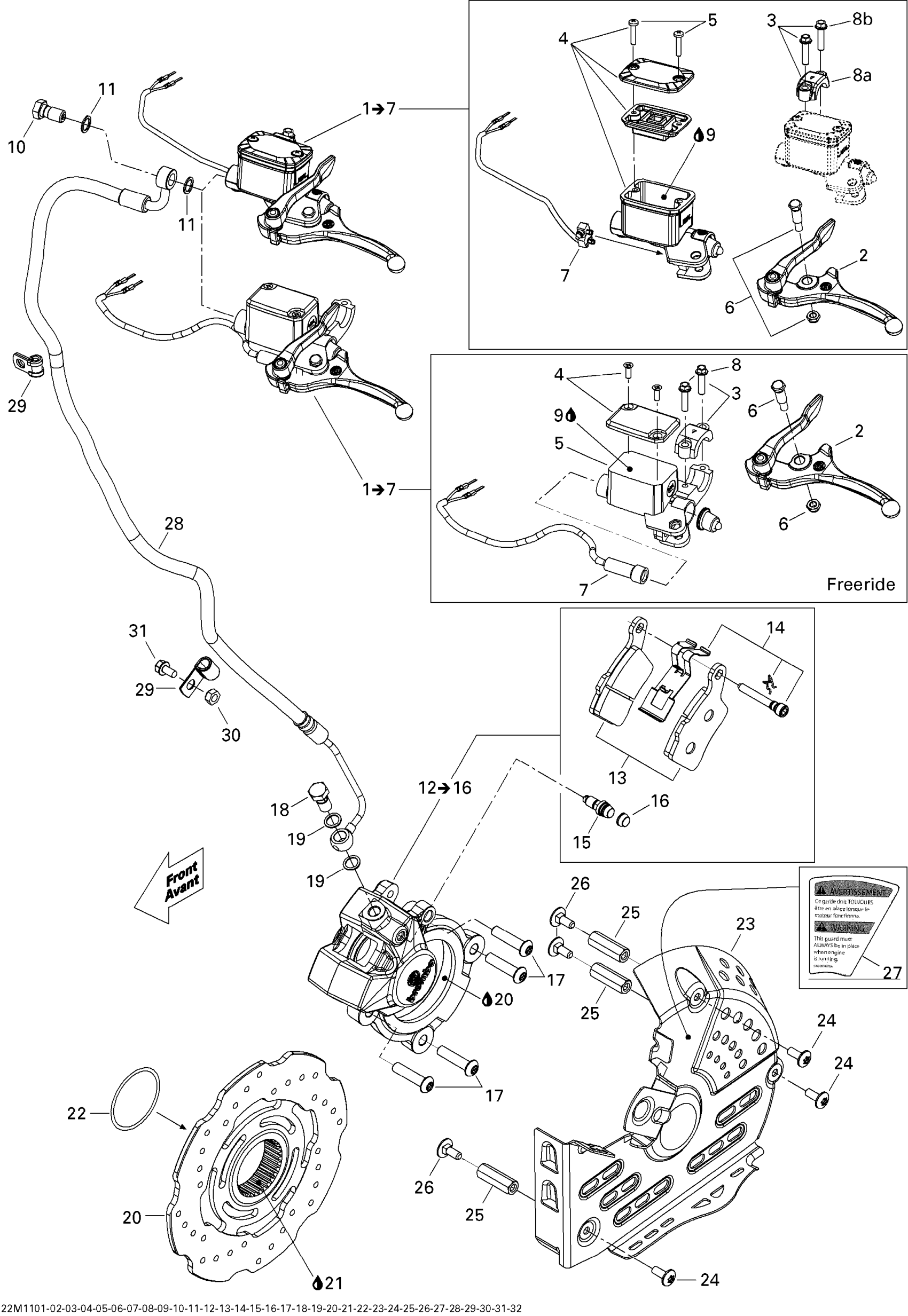

Ski-Doo Expedition Sport 550F XP-FAN, 2011 06- Hydraulic Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

2

Lever With Parking Lock

507032476

$99.99

3

Clamp And Screw Kit

507032477

$23.99

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

5

Screw M4 X 20

415129356

$2.22

6

Pin Ass'y

415030000

$19.99

7

Microswitch | Grand Touring

507032479

$99.49

8a

Clamps | Includes 75a to 75b

719000049

$14.83

8b

Hex. Flange Screw M6 X 25

250000447

$2.11

9

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

10

Banjo Bolt

414920500

$8.68

11

Washer

414920600

$1.90

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

13

Brake Pads Kit

507032473

$52.99

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Disc

507032487

$185.49

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.32

23

Aluminum Disk Protector

507032446

$28.99

24

Torx Screw M6 X 16

250000365

$2.11

25

Threaded Tube

507032497

$15.72

26

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

27

Not Available As Spare Parts

XXX

Unavailable

28

HOSE - Call your local BRP dealership

507032515

Unavailable

29

Clamp

293650256

$5.49

30

Not Available As Spare Parts

XXX

Unavailable

31

Hex. Flange Screw M6 X 12

210261250

$1.90
