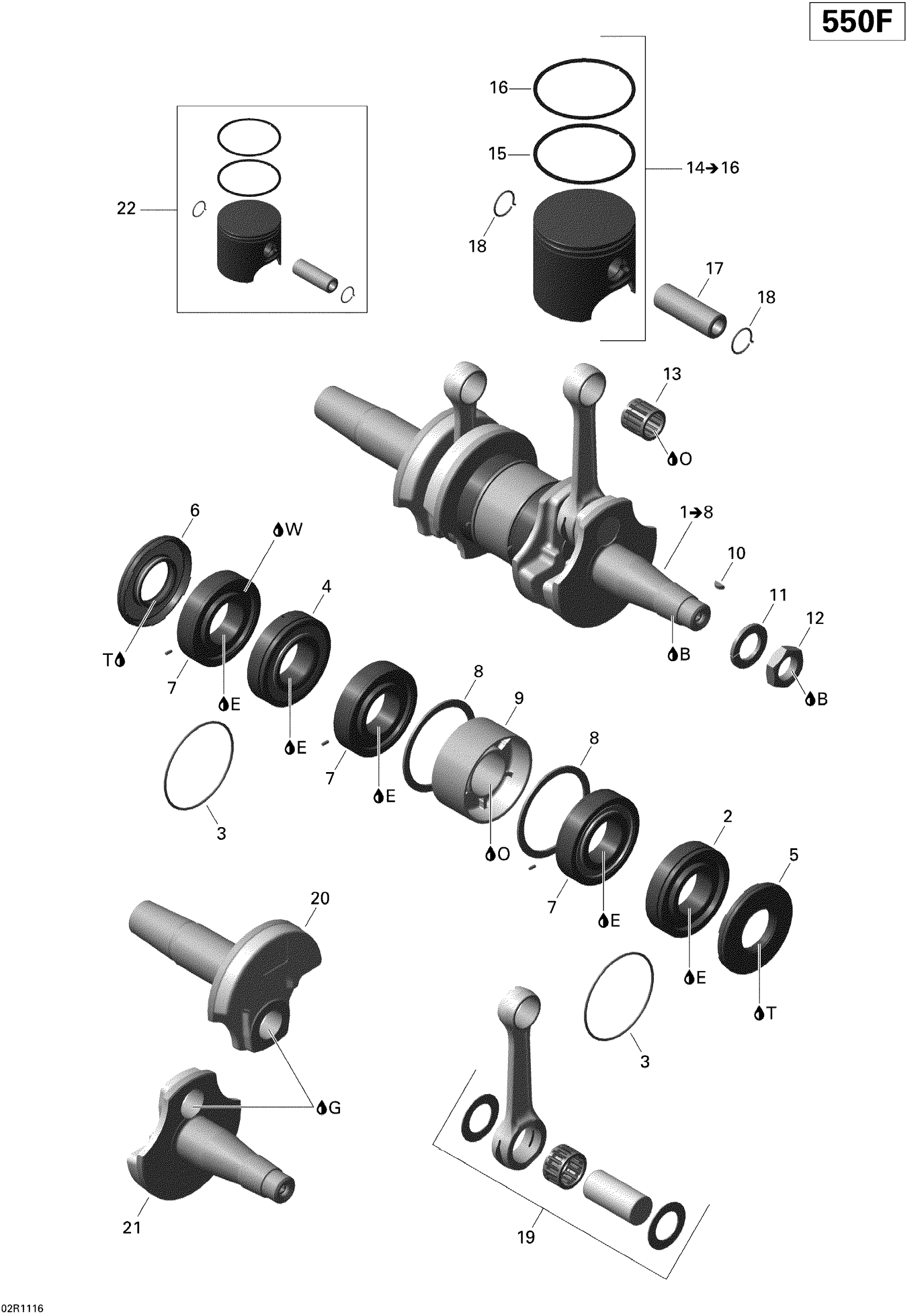

Ski-Doo Expedition Sport 550F XP-FAN, 2011 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft | Includes 1 to 8

420686042

$787.99

1

REBUILT - CRANKSHAFT 552

421000673

Unavailable

2

Ball Bearing

420832571

$79.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Ball Bearing

420832632

$104.99

5

Oil Seal This part replaces 290831952.

420831952

$18.01

6

Oil Seal

420831955

$27.49

7

Ball Bearing

420832573

$44.49

8

Retaining Disk

420927710

$7.41

9

Labyrinth Sleeve

420850149

$35.99

10

Woodruff Key

420246055

$2.43

11

Lock Washer, 22 mm

420945759

$1.90

12

Hex. Nut, M22 X 1.5

420842239

$17.53

13

Needle Bearing

420832445

$27.49

14

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$169.99

14

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$169.99

14

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$169.99

15

Rectangular Ring, Standard

420815300

$24.49

15

Rectangular Ring, 1st

420815301

$24.49

15

Rectangular Ring, 2nd

420815302

$24.49

16

Semi-Trapez Ring, Standard

420815155

$51.99

16

Semi-Trapez Ring, 1st

420815156

$51.99

16

Semi-Trapez Ring, 2nd

420815157

$50.99

17

Piston Pin

420916407

$25.49

18

Piston Circlip

420845106

$3.93

19

Rod Repair Kit

420889068

$313.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Half Crankshaft (MAG)

420819213

Unavailable

22

Piston Kit

415129542

$212.99

B

Loctite 243, 10 ml

293800060

$21.49

E

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

G

Sealant Loctite 648

219703000

$45.99

O

Not Available As Spare Part - Friction Washer

Unavailable

T

Petamo Grease, GHY133N, 400 g

420899271

$67.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
