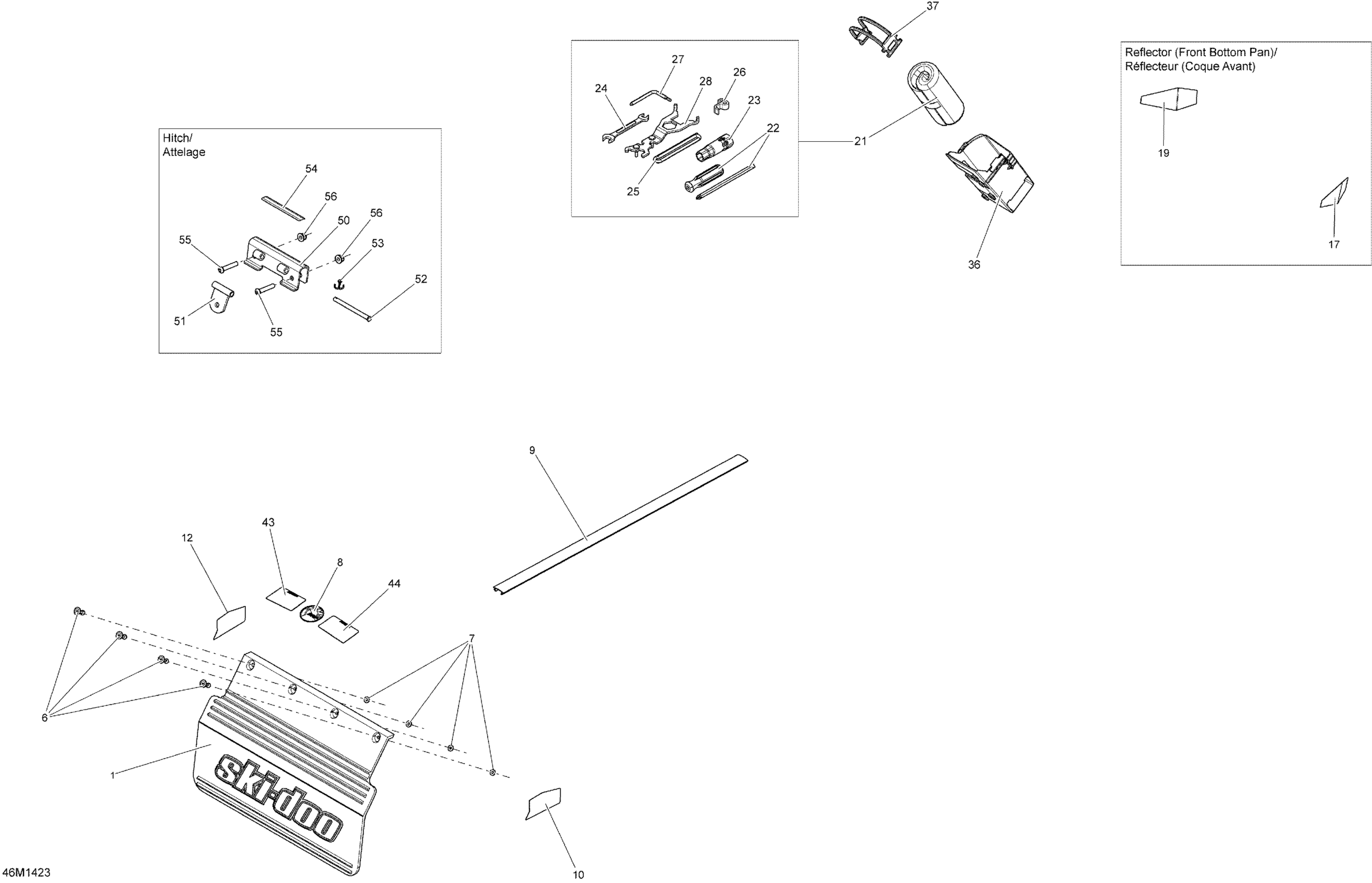

Ski-Doo EXPEDITION SPORT 550F XP, 2014 09- Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000606

Unavailable

6

Pop Rivet 3/16”

293150101

$2.09

7

Washer

517124300

$0.19

8

BRP Logo 48 mm

219903947

$17.49

9

Radiator Trim

520000829

$21.99

10

Red, RH Rear Reflector

520000881

$16.99

12

Red, LH Rear Reflector

520000880

$16.99

17

Yellow, RH Front Reflector

520000718

$15.99

19

Yellow, LH Front Reflector

520000719

$15.99

21

Tool Kit | Includes 20 To 28

529000065

$55.99

22

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

23

Set Key, 16/21 mm

529000046

$14.49

24

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

25

Was 412500100 Rope-Starter

219704403

$158.99

26

Starter Grip

529000060

$14.15

27

Spacing Tool

520001142

$10.52

28

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

36

Tool Kit Rack

520000894

$14.99

37

Latch

520000528

$7.69

43

LH Warning Decal, Safety

516006431

Unavailable

44

RH Warning Decal, Safety

516005587

Unavailable

50

Support

511000768

$31.99

51

Hitch Plate Welded

511000521

$16.33

52

Lock Pin

511001451

$9.49

53

Cotter Pin

371800200

$0.53

54

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

55

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

56

Elastic Flange Nut M8

233281466

$1.01
