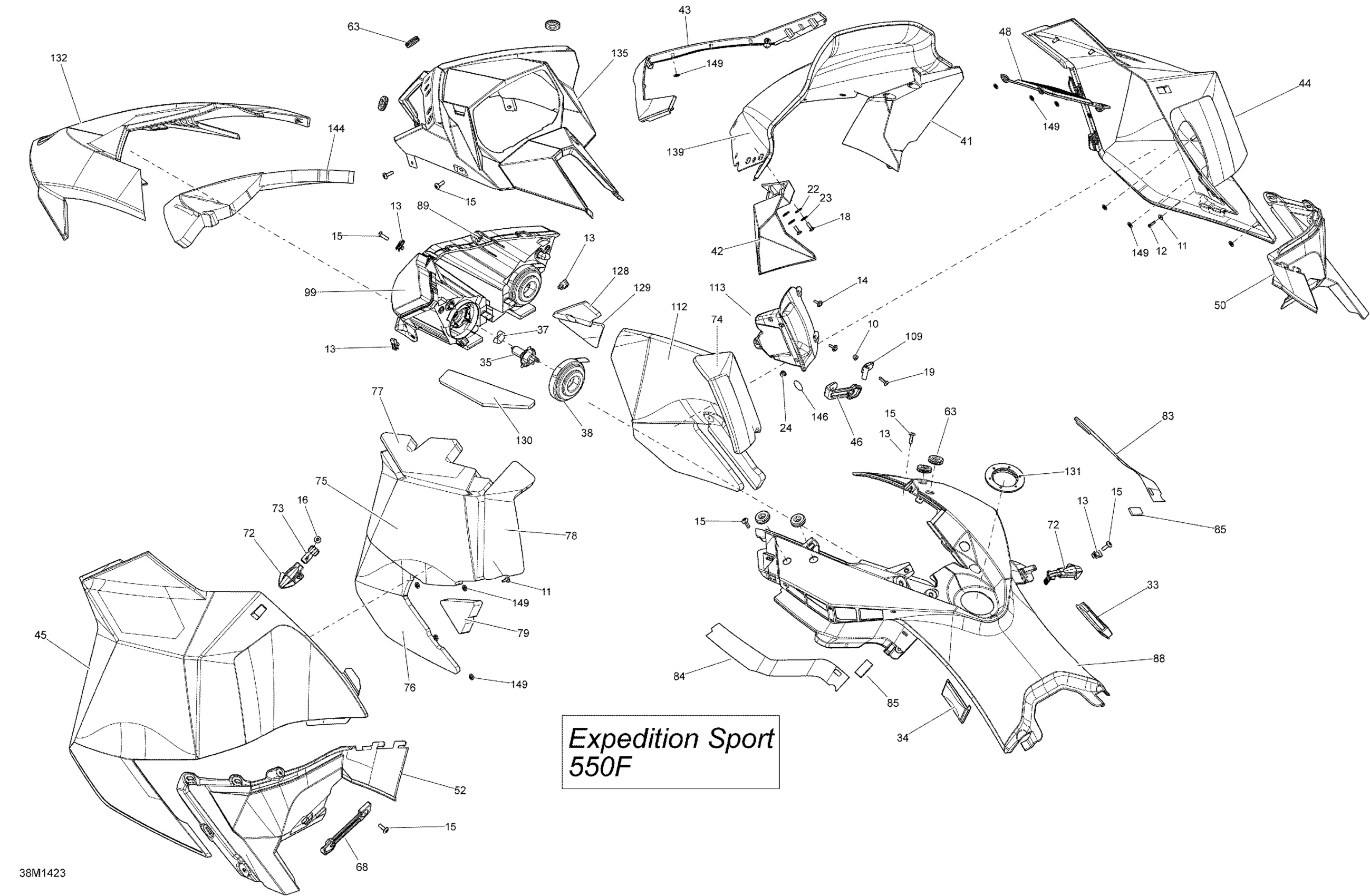

Ski-Doo EXPEDITION SPORT 550F XP, 2014 Hood, Windshield And Console Diagram

#

Description
Price

10

Hex. Flange Elastic Nut M5

233251414

$1.91

11

Flat Washer 4 mm, Stainless

234042600

$1.49

12

Hex. Flange Screw K40 X 16

241141660

$1.49

13

Panel Nut M6 X 1.0

250100198

$2.19

14

Screw M4 X 16

250000725

$3.59

15

Torx Screw M6 X 20

250000722

$1.69

16

Torx Truss Screw M6 X 16

250000721

$1.69

18

Torx Screw K50 X 16

250000720

$1.69

19

Torx Screw M5 X 20

250000792

$2.19

22

Rubber Washer 5 mm

250200024

$2.29

23

Washer M5

250200025

$1.49

24

Black, Cap

275500241

$3.59

33

RH Panel Clip

513033471

$7.19

34

LH Panel Clip

513033472

$5.99

35

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$24.49

37

Cap

515176498

$13.49

38

Rubber Cap Protector

219800280

$19.49

41

RH Air Deflector

517303604

$44.99

42

LH Air Deflector

517303605

$44.99

43

Windshield Support

517303607

$35.99

44

Deep Black, RH Panel

517304029

$219.99

45

Deep Black, LH Panel

517304030

$219.99

46

RH Panel Latch

517303612

$10.99

48

Grille

517303622

$31.99

50

Deep Black RH Moulding Panel

517303671

$29.99

52

Deep Black, LH Moulding Panel

517303673

$29.99

63

Grommet

517303756

$4.09

68

LH Panel Latch

517303808

$11.99

72

Black Latch Kit | Includes 390 to 400

860200239

$16.99

73

Panel Latch

517303981

$12.99

74

RH Panel Rear Foam

517304884

$19.99

75

LH Panel Center Foam

517304887

$28.99

76

LH Panel Lower Foam

517304888

$22.49

77

LH Panel Upper Foam

517304889

$21.99

78

LH Panel Rear Foam

517304890

$18.49

79

Foam

517304891

$21.99

83

RH Decal

517304103

$19.99

84

LH Decal

517304104

$19.99

85

Console Decal

517304105

$14.49

88

White Console | Bright White

517305274

$224.99

89

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$154.99

99

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$154.99

109

Latch Support

517304221

$9.39

112

RH Center Foam

517304883

$44.99

113

Black, RH Console | Includes 400 to 400b

517304322

$36.99

128

Foam

517304885

$19.99

129

Foam

517304886

$19.99

130

Foam

517304882

$19.99

131

Console Nut

517304518

$15.99

132

White Hood

517304492

$164.99

135

Gauge Support

517304578

$58.99

139

Windshield 450 | Bright White

517304766

$164.99

144

Hood Foam

517304913

$22.49

146

Heat Shield | Europe

517305451

$2.39

149

Push Nut

732610072

$2.29
