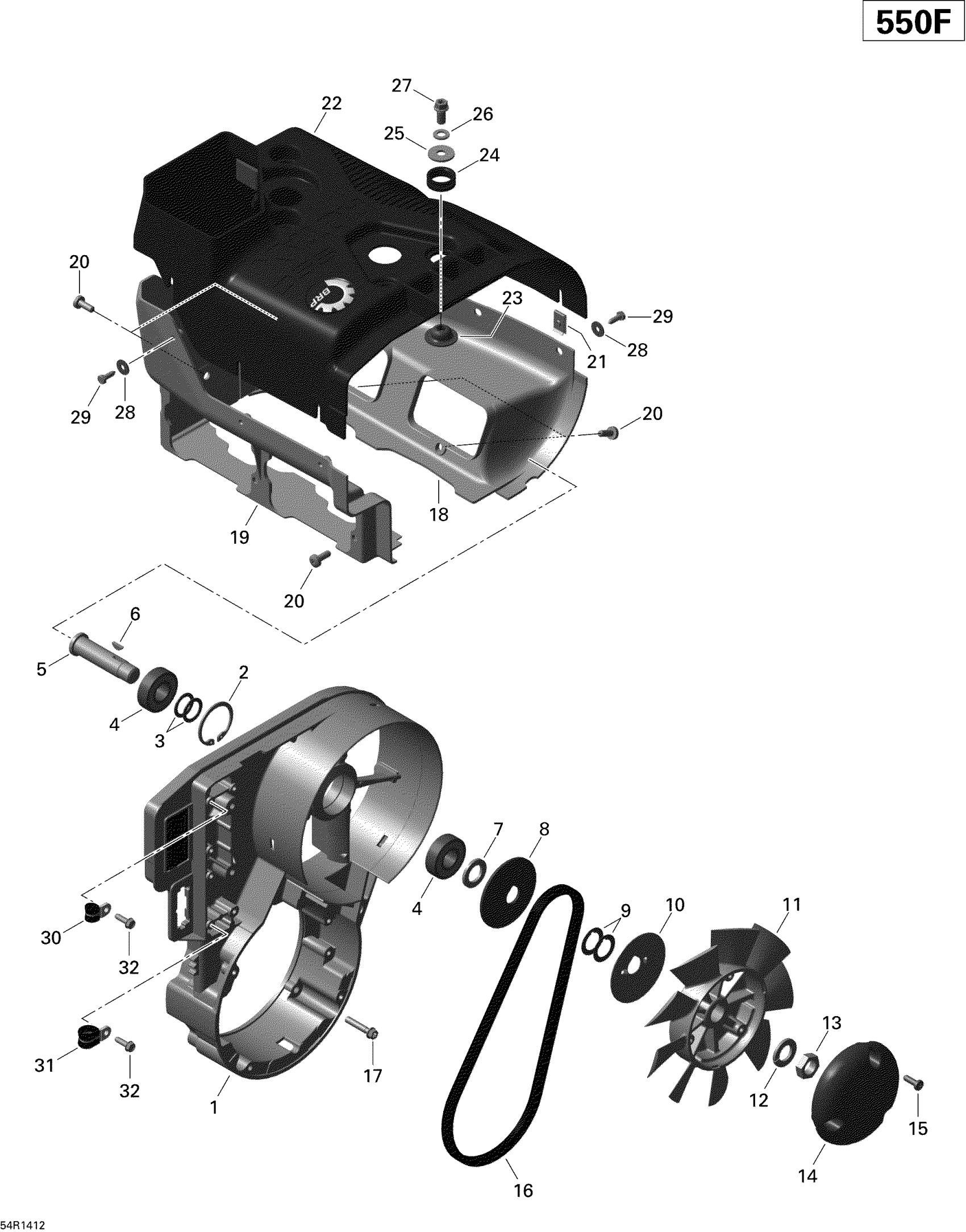

Ski-Doo EXPEDITION SPORT 550F XP, 2014 Fan And Cylinder Cowls Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$447.73

2

Lock Ring

420945880

$4.15

3

Shim

420244585

$1.78

4

Ball Bearing

420832161

$33.55

5

Fan Axle This part replaces 420937940.

420937941

$13.18

6

Woodruff Key

420246015

$3.01

7

Spacer Bushing

420827650

$10.96

8

Flange

420980496

$13.18

9

Shim 0.5 mm

420827080

$2.00

9

Shim 0.2 mm

420827082

$3.01

9

Shim 0.5 mm

420827080

$2.00

9

Shim 0.2 mm

420827082

$3.01

10

Protection Washer

420980523

$11.18

11

Fan

420866294

$91.01

12

Lock Washer

420945756

$3.01

13

Nut M16 This part replaces 420942285.

420942289

$9.03

14

Fan Cover

420975900

$13.18

15

Screw

420841971

$2.82

16

V-Belt

420980514

$36.54

17

Torx Flange Screw M6 X 30

420440647

$1.91

18

Lower Cowling | 550 F.

420811392

$177.58

19

Lower Cowling

420812605

$81.31

20

Torx Screw M6 X 16

420640324

$2.00

21

Spring Nut

420842390

$1.79

22

Lower Cowling

420910837

$268.63

23

Cup Washer

420827817

$13.18

24

Rubber Bushing

420460210

$1.96

25

Washer This part replaces 420227935.

420227936

$3.19

26

Washer-Lock Din.128

420945832

$1.06

27

Torx Flange Screw M8 X 16

420440852

$3.88

28

Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185.

420841492

$1.78

29

Tapping Screw M4.8 X 16

417300006

$0.69

30

Clamp

420851110

$12.15

31

Clamp

420851250

$9.03

32

Taptite Screw M5 X 16

420941928

Unavailable
