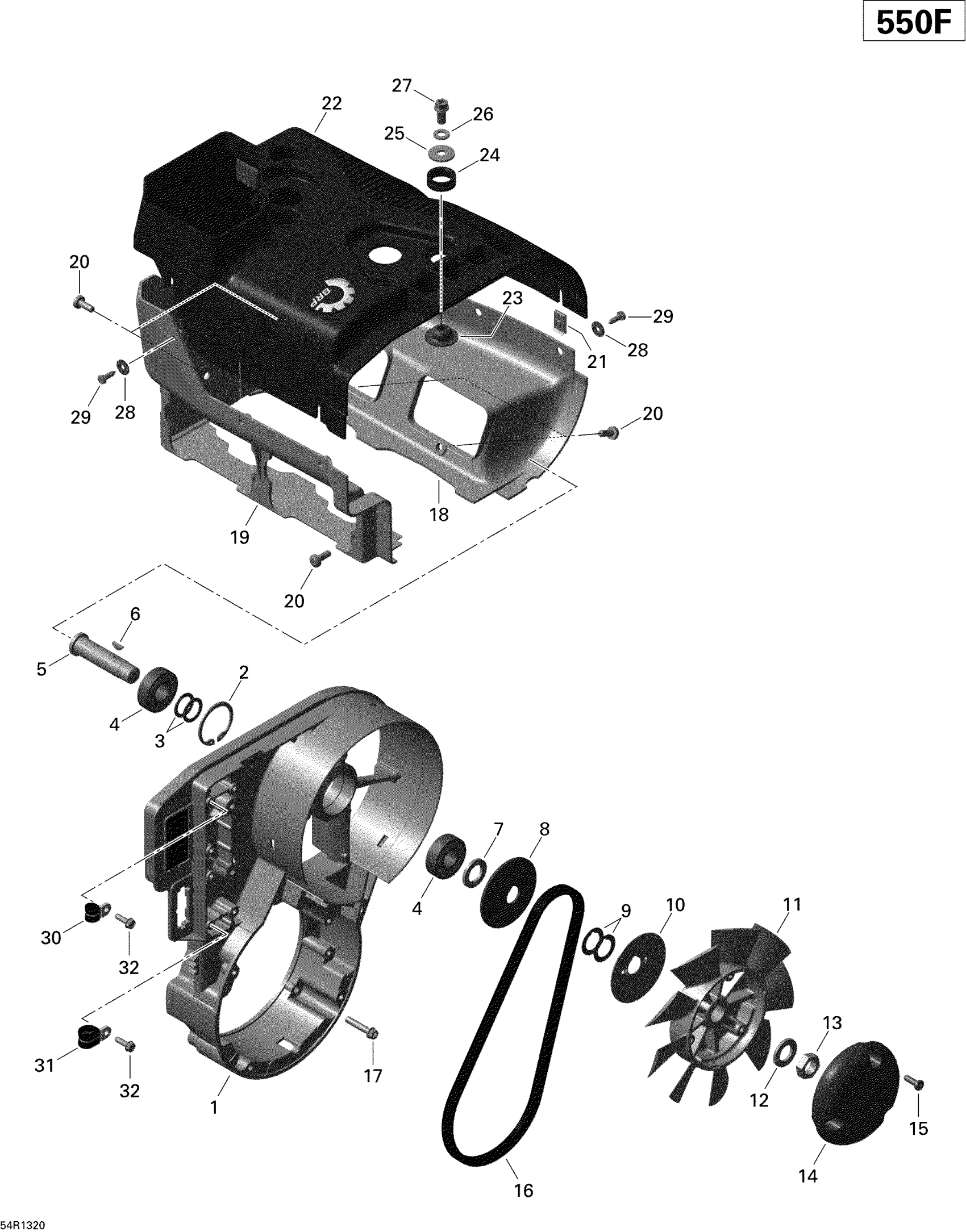

Ski-Doo EXPEDITION SPORT 550F XP, 2013 01- Fan And Cylinder Cowls Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$476.49

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

9

Shim 0.2 mm

420827082

$3.17

9

Shim 0.5 mm

420827080

$2.11

9

Shim 0.2 mm

420827082

$3.17

10

Protection Washer

420980523

$13.16

11

Fan

420866294

$96.49

12

Lock Washer

420945756

$3.17

13

Nut M16 This part replaces 420942285.

420942289

$10.33

14

Fan Cover

420975900

$14.28

15

Screw

420841971

$2.96

16

V-Belt

420980514

$38.99

17

Torx Flange Screw M6 X 30

420440647

$2.00

18

Lower Cowling | 550 F.

420811392

$190.49

19

Lower Cowling

420812605

$85.99

20

Torx Screw M6 X 16

420640324

$2.11

21

Spring Nut

420842390

$1.90

22

Lower Cowling

420910837

$285.99

23

Cup Washer

420827817

$14.28

24

Rubber Bushing

420460210

$2.11

25

Washer This part replaces 420227935.

420227936

$3.38

26

Washer-Lock Din.128

420945832

$1.15

27

Torx Flange Screw M8 X 16

420440852

$4.12

28

Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185.

420841492

$1.90

29

Tapping Screw M4.8 X 16

417300006

$0.72

30

Clamp

420851110

$14.22

31

Clamp

420851250

$10.33

32

Taptite Screw M5 X 16

420941928

Unavailable
