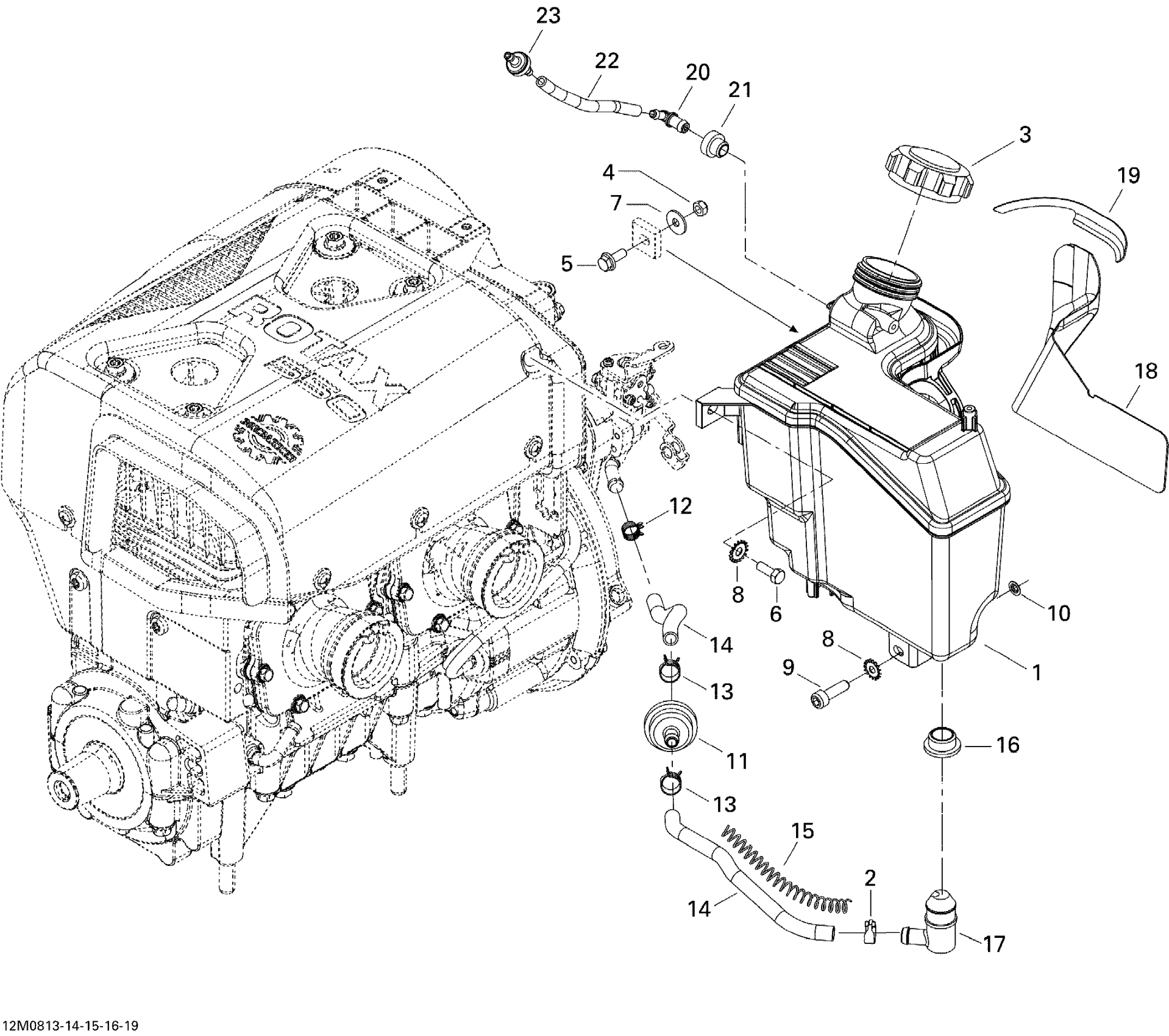

Ski-Doo Expedition Sport 550F, 2008 02- Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

Unavailable

2

Oetiker Clamp

293650042

$3.09

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Hex. Flange Screw M6 X 16

207661644

$0.74

6

Hex. Screw M6 X 18

207161844

$0.76

7

Flat Washer

250200082

$0.42

8

Lock Washer Serrated M6

250200041

$1.15

9

Torx Screw M6 X 25 | XT Models

250000728

$4.44

10

Push Nut

732610072

$2.19

11

Filter

414536500

$4.02

12

Spring Clamp

414420700

$0.72

13

Spring Clamp

414415200

$0.88

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

SPRING - Call your local BRP dealership

519000125

Unavailable

16

Insulating Ring

570023000

$5.61

17

Elbow Fitting 90°

519000124

Unavailable

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

20

Male Connector

414580700

$4.12

21

Grommet

513032908

$10.49

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Check Valve

275500398

$10.99
