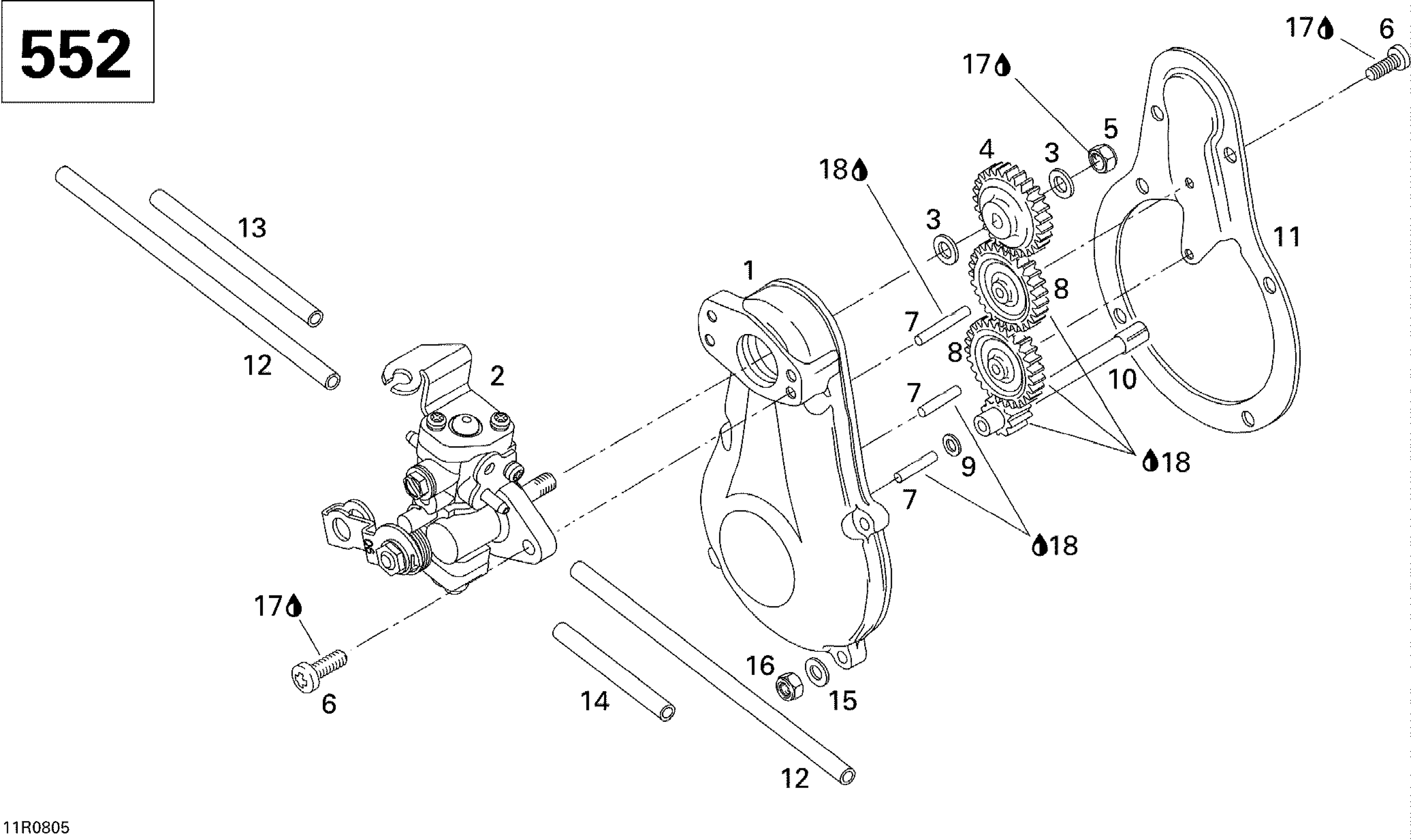

Ski-Doo Expedition Sport 550F, 2008 Oil Pump Diagram

#

Description
Price

1

FLANGED PUMP - Call your local BRP dealership

420810110

$75.35

2

Oil Pump Ass'y

420889072

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

4

Oil Pump Gear, 27 Teeth

420935930

$14.54

5

Elastic Stop Nut M6

232561414

$1.55

6

Screw

420841971

$2.91

7

Needle Pin

420232420

$3.86

8

OIL PUMP GEAR - Call your local BRP dealership

420834210

Unavailable

9

Flat Washer 4

420244072

$0.70

10

Gear, 9 Teeth

420935970

$15.35

11

FLANGED PUMP - Call your local BRP dealership

420810122

$71.51

12

Oil Hose 1500Mm Long

219704404

$13.62

13

Hose 6 Mm 15000Mm Long

219704360

$104.62

14

Hose 6 Mm 15000Mm Long

219704360

$104.62

15

WASHER - Call your local BRP dealership

420827800

Unavailable

16

NUT M5 - Call your local BRP dealership

420942025

$1.00

17

Loctite 243, 10 ml

293800060

$20.77

18

Dow Corning 111, 150 g

413707000

$57.82
