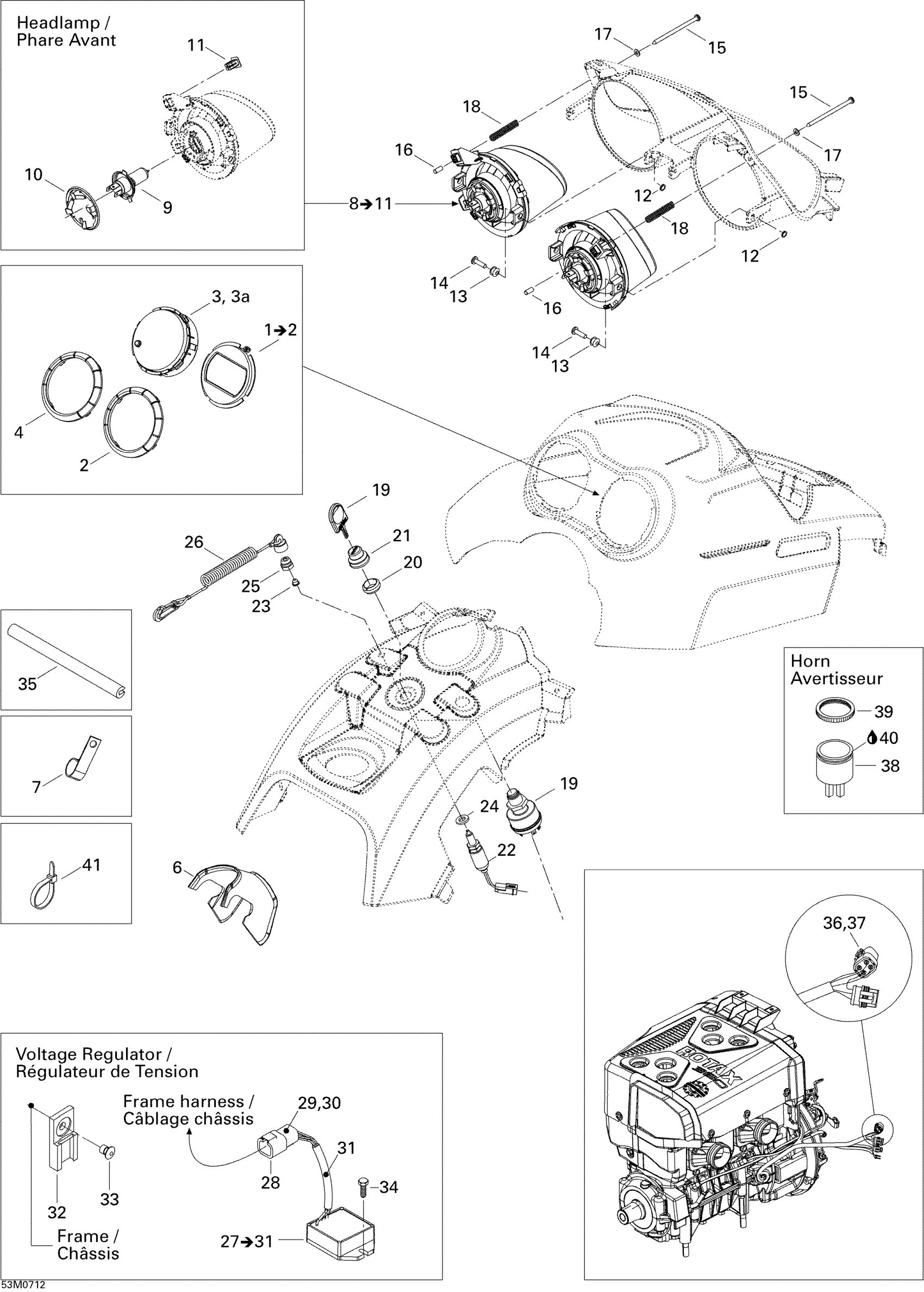

Ski-Doo Expedition Sport 550F, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

GAUGE BOTTOM RING ASS'Y - Call your local BRP dealership | Includes 1 to 2

515176373

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

3a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

4

Gauge Ring This part replaces 515176242.

515179005

$13.99

6

PROTECTOR - Call your local BRP dealership

515176321

Unavailable

7

Clamp

515176457

Unavailable

8

RH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176168

Unavailable

8

LH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176169

Unavailable

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

10

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

11

Plastic Insert

515176339

Unavailable

12

Push Nut

389804300

$0.53

13

HEADLAMP BUSHING - Call your local BRP dealership

515176289

Unavailable

14

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

15

PHILLIPS SCREW #8 X 3 - Call your local BRP dealership

250000244

Unavailable

16

Cap

515176370

$4.69

17

Flat Washer M5, Stainless

234051600

$0.77

18

SPRING - Call your local BRP dealership

515176353

Unavailable

19

IGNITION SWITCH - Call your local BRP dealership

515176484

Unavailable

20

FACE NUT - Call your local BRP dealership

410112100

Unavailable

21

Switch Boot

570013700

$11.49

22

Brake Switch

515175653

$19.49

23

Plunger Cap

570151100

$9.85

24

WASHER - Call your local BRP dealership

503183500

Unavailable

25

Switch Nut

515145900

$12.12

26

Cap Ass'y

515178283

$38.99

27

Voltage Regulator | Includes 34 to 40

515176189

$149.99

28

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

29

Male Terminal

515175568

$9.12

30

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

31

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

32

Clip

270000141

$11.49

33

Avdel Rivet 3/16"

293150037

$0.56

34

Hex. Flange Screw M6 X 12

210261250

$1.90

35

TRIM - Call your local BRP dealership

509000263

Unavailable

36

Female Terminal Housing, 4 Circuits

278001473

$26.99

37

Female Lock, 4 Circuits

278001474

$3.49

38

HORN - Call your local BRP dealership

515176035

Unavailable

39

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

Tie-Rap 180 mm

414115200

$0.11

41

Tie Wrap 142 mm

293750002

$1.25

41

Tie Wrap 368 mm

293750008

$1.04

41

Tie-Rap 173 mm

293750009

$1.04
