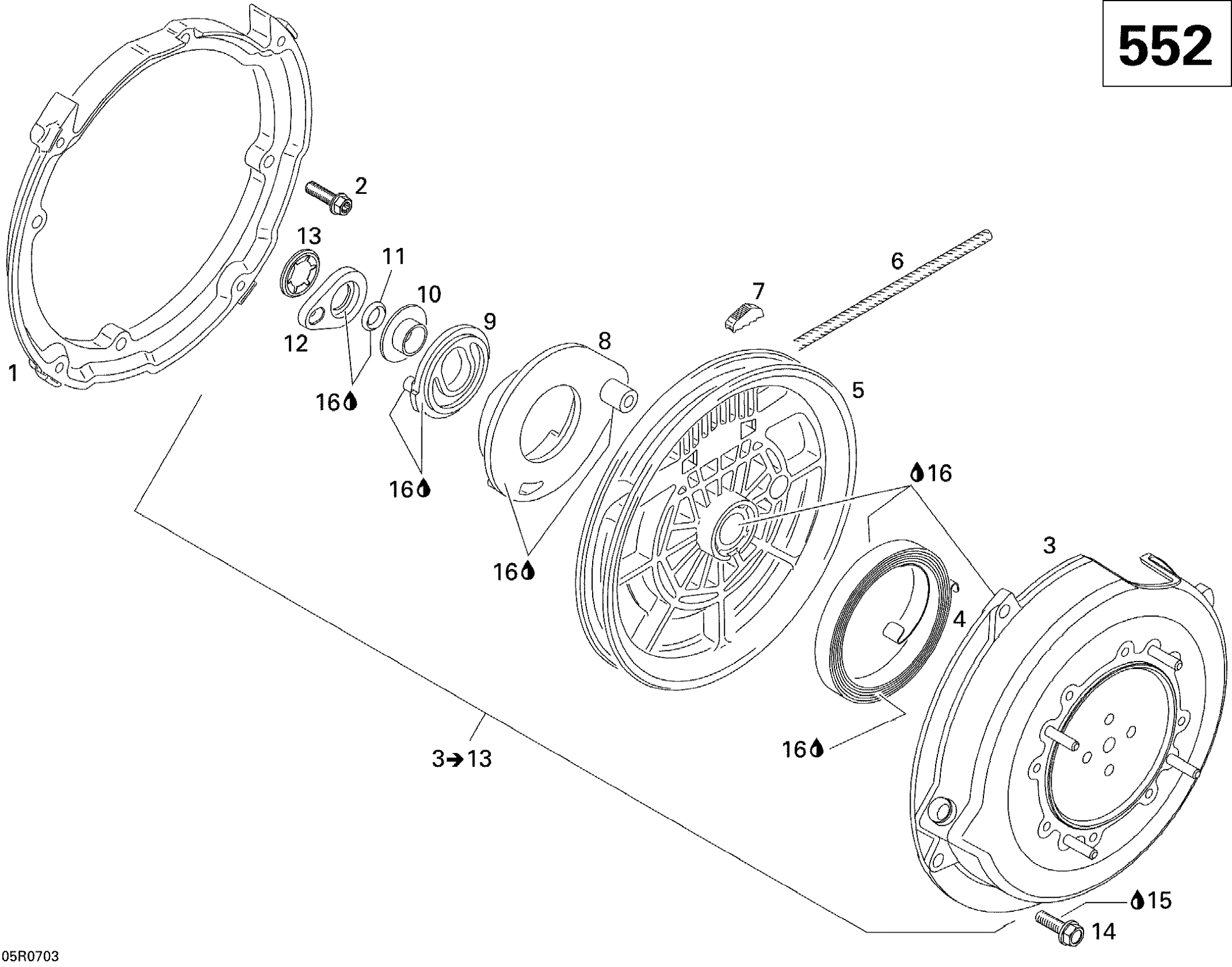

Ski-Doo Expedition Sport 550F, 2007 Rewind Starter Diagram

#

Description
Price

1

Flange Connector

420810955

$102.21

2

Torx Flange Screw M6 X 20

420440207

$2.54

3

Rewing Starter Ass'y | Includes 3a to 13

420890170

$176.84

3

Rewing Starter Ass'y | Includes 3a to 13

420890170

$176.84

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852480

$65.64

6

Was 412500100 Rope-Starter

219704403

$9.85

7

Key Clamp

420852070

$3.50

8

Pawl

420852296

$18.63

9

Pawl Lock | Includes no. 8-9

420852640

$5.34

10

Stage Sleeve

420847926

$14.10

11

O-Ring

420250400

$5.06

12

Lock Ring

420852520

$8.09

13

Locking Element

420845560

$1.97

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

15

Loctite 243, 10 ml

293800060

$20.77

16

Molykote PG 54, 10 g

420899763

$18.82
