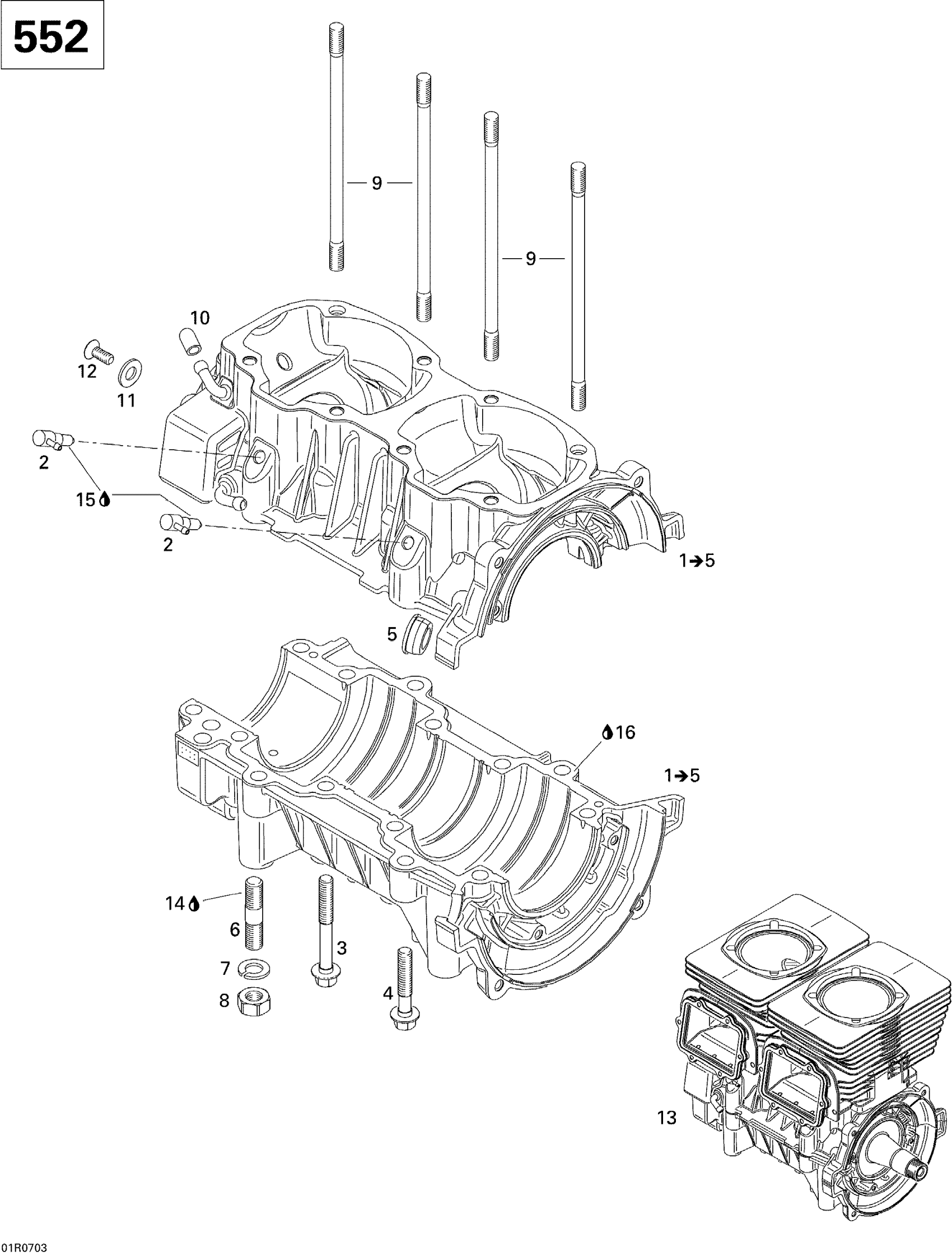

Ski-Doo Expedition Sport 550F, 2007 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$755.99

2

Check Valve

420956511

$35.99

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

4

Hex. Collar Screw M8 x 45

420640432

$8.57

5

Cable Grommet

420860962

$13.16

6

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Stud M8 X 173.5

420840556

$15.89

10

CAP - Call your local BRP dealership

420960772

Unavailable

11

Flat Washer 8.4 mm

420250315

$1.15

12

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.11

13

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

13

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Sealant Loctite 648

219703000

$45.99

16

Loctite 5910, 300 ml

293800081

$57.99
