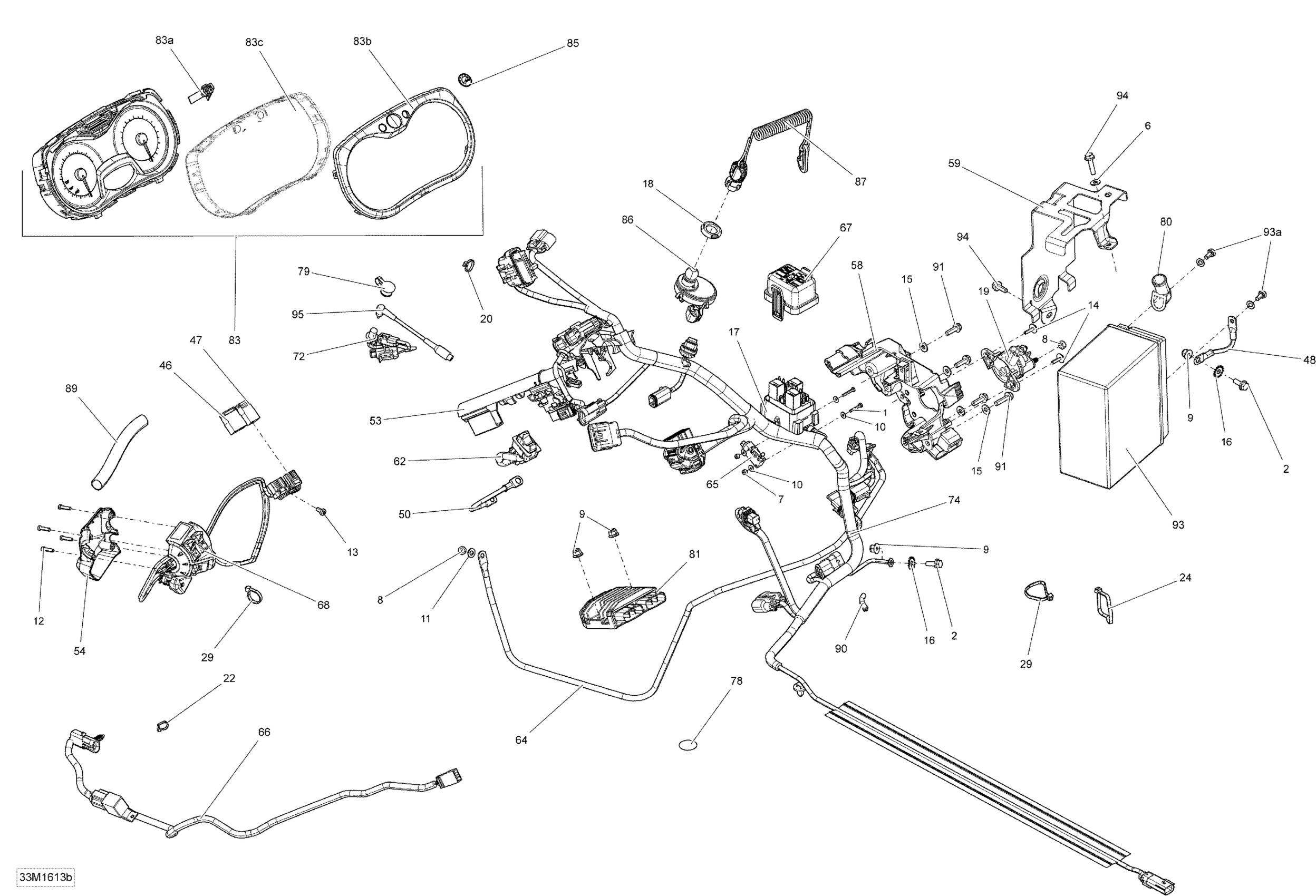

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Electrical System - 900 ACE Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.00

2

Hex. Flange Screw M6 X 16

207661644

$0.70

5

Hex. Flange Screw M6 X 20

210262040

$2.00

6

Flat Washer

224061121

$0.51

7

Elastic Stop Nut M3

232531423

$0.52

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Flat Washer M3, Stainless

234032600

$0.52

11

Flat Washer 6 mm

234061410

$1.19

12

Torx Screw

250000671

$0.96

13

Pan Screw Forming, 7500C

250000690

$2.00

14

Screw M4 X 16

250000725

$3.30

15

Flat Washer

250200039

$0.70

16

Lock Washer Serrated M6

250200041

$1.06

17

Case Ass'y with seal, 24 positions

278002824

$33.55

18

Safety Nut (DESS Switch)

278002963

$3.12

19

Starter Relay

278003012

$40.27

20

Tie Wrap 94 mm | 4X4

293750001

$0.96

22

Tie Wrap 142 mm

293750002

$1.01

23

Tie Wrap 368 mm

293750008

$0.97

29

Tie-Rap 180 mm

414115200

$0.10

46

Male Terminal Housing, 6 Circuits

515175662

$8.31

47

Male Terminal Housing, 4 Circuits

515175846

$8.31

48

Ground Wire

515176358

$25.34

50

Ground Wire

515177014

$14.90

53

Connector Plate

515177134

$13.60

54

Housing Plate

515177147

$17.13

58

Plate

515177347

$13.40

59

Battery Support

515177348

$29.07

62

Switch

515177394

$73.10

64

Battery Wire

515177427

$28.33

65

Switch Ass'y

515177460

$47.73

66

Fan Harness

515177646

$49.97

67

Fuse Box Cover

515177671

$10.55

68

LH Housing

515178198

$258.93

72

Visor Harness

515177837

$31.31

74

Main Harness | EXPEDITION

515177988

$409.67

78

Adhesive Patch

518325560

$4.21

79

Cap

572103300

$9.36

80

Protector Cap

710000495

$9.84

83

Indicator

515177912

$501.46

83a

Speedometer Button | XTP

415129355

$13.52

83b

Gauge Ring

415129370

$10.34

83c

Lens | XTP

415129349

$22.36

85

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

86

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

87

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

87

Key

860201162

$67.13

89

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

90

Trim 1000Mm Long

219704354

$14.30

91

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

93

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

93a

Battery Bolt Kit

250000282

$3.39

94

Hex. Flange Screw M6 X 25

250000793

$2.00

95

Extension

515175851

$10.55
