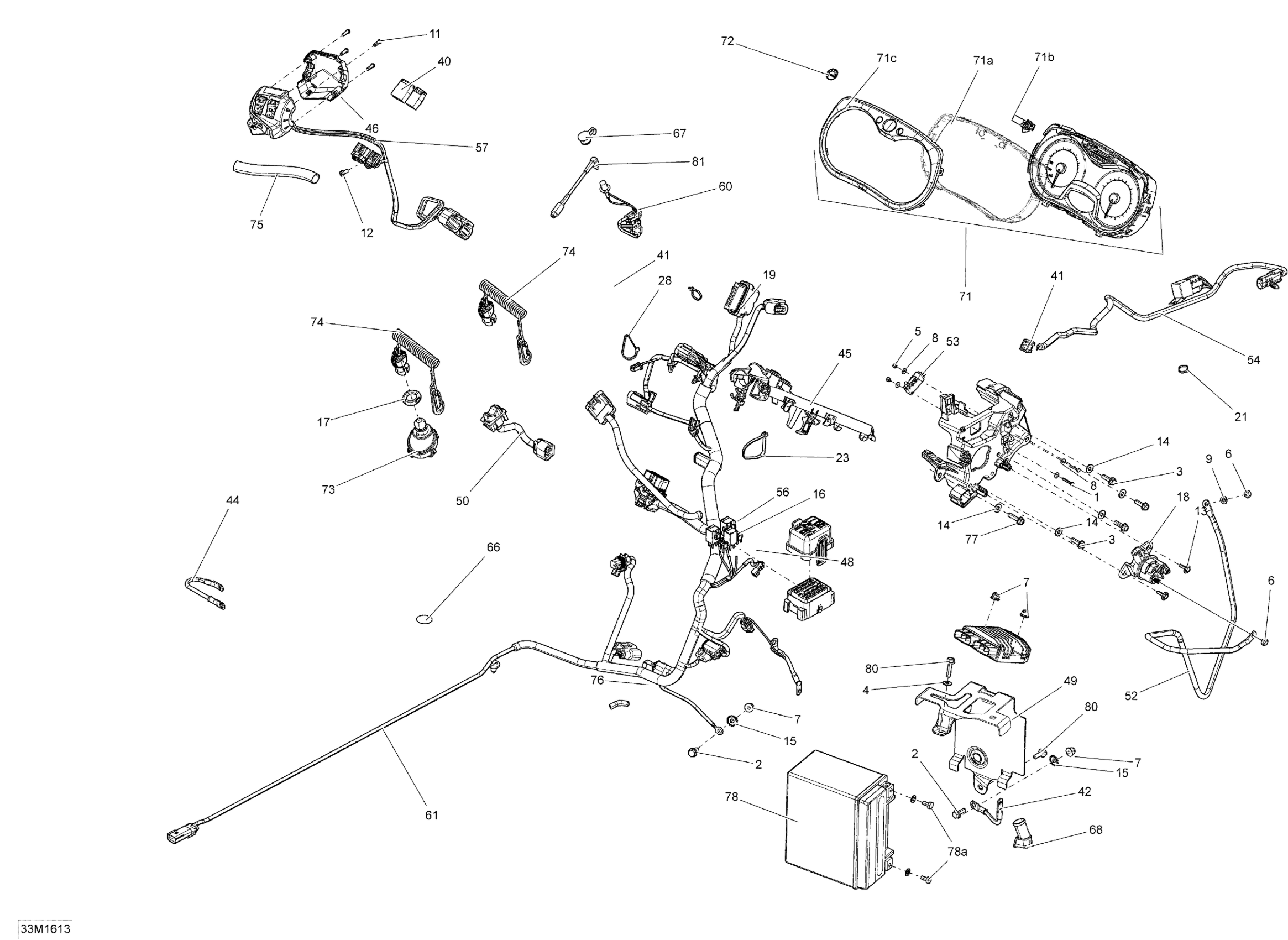

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Electrical System - 600 ACE Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.00

2

Hex. Flange Screw M6 X 16

207661644

$0.70

3

Hex. Flange Screw M6 X 20

210262040

$2.00

4

Flat Washer

224061121

$0.51

5

Elastic Stop Nut M3

232531423

$0.52

6

Elastic Stop Nut M6

232561434

$1.78

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

8

Flat Washer M3, Stainless

234032600

$0.52

9

Flat Washer 6 mm

234061410

$1.19

11

Torx Screw

250000671

$0.96

12

Pan Screw Forming, 7500C

250000690

$2.00

13

Screw M4 X 16

250000725

$3.30

14

Flat Washer

250200039

$0.70

15

Lock Washer Serrated M6

250200041

$1.06

16

Case Ass'y with seal, 24 positions

278002824

$33.55

17

Safety Nut (DESS Switch)

278002963

$3.12

18

Starter Relay

278003012

$40.27

19

Tie Wrap 94 mm | 4X4

293750001

$0.96

21

Tie Wrap 142 mm

293750002

$1.01

23

Tie Wrap 368 mm

293750008

$0.97

28

Tie-Rap 180 mm

414115200

$0.10

40

Male Terminal Housing, 6 Circuits

515175662

$8.31

41

Male Terminal Housing, 4 Circuits

515175846

$8.31

42

Ground Wire

515176358

$25.34

44

Ground Wire

515177014

$14.90

45

Connector Plate

515177134

$13.60

46

Housing Plate

515177147

$17.13

47

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

48

Plate

515177347

$13.40

49

Battery Support

515177348

$29.07

50

Switch

515177394

$73.10

52

Battery Wire

515177427

$28.33

53

Switch Ass'y

515177460

$47.73

54

Fan Harness

515177646

$49.97

56

Fuse Box Cover

515177671

$10.55

57

LH Housing

515178198

$258.93

60

Visor Harness

515177837

$31.31

61

Main Harness | EXPEDITION

515177988

$409.67

66

Adhesive Patch

518325560

$4.21

67

Cap

572103300

$9.36

68

Protector Cap

710000495

$9.84

71

Indicator

515177911

$499.22

71a

Lens | XTP

415129349

$22.36

71b

Speedometer Button | XTP

415129355

$13.52

71c

Gauge Ring

415129370

$10.34

72

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

73

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

74

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

75

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

76

Trim 1000Mm Long

219704354

$14.30

77

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

78

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

78a

Battery Bolt Kit

250000282

$3.39

80

Hex. Flange Screw M6 X 25

250000793

$2.00

81

Extension

515175851

$10.55
