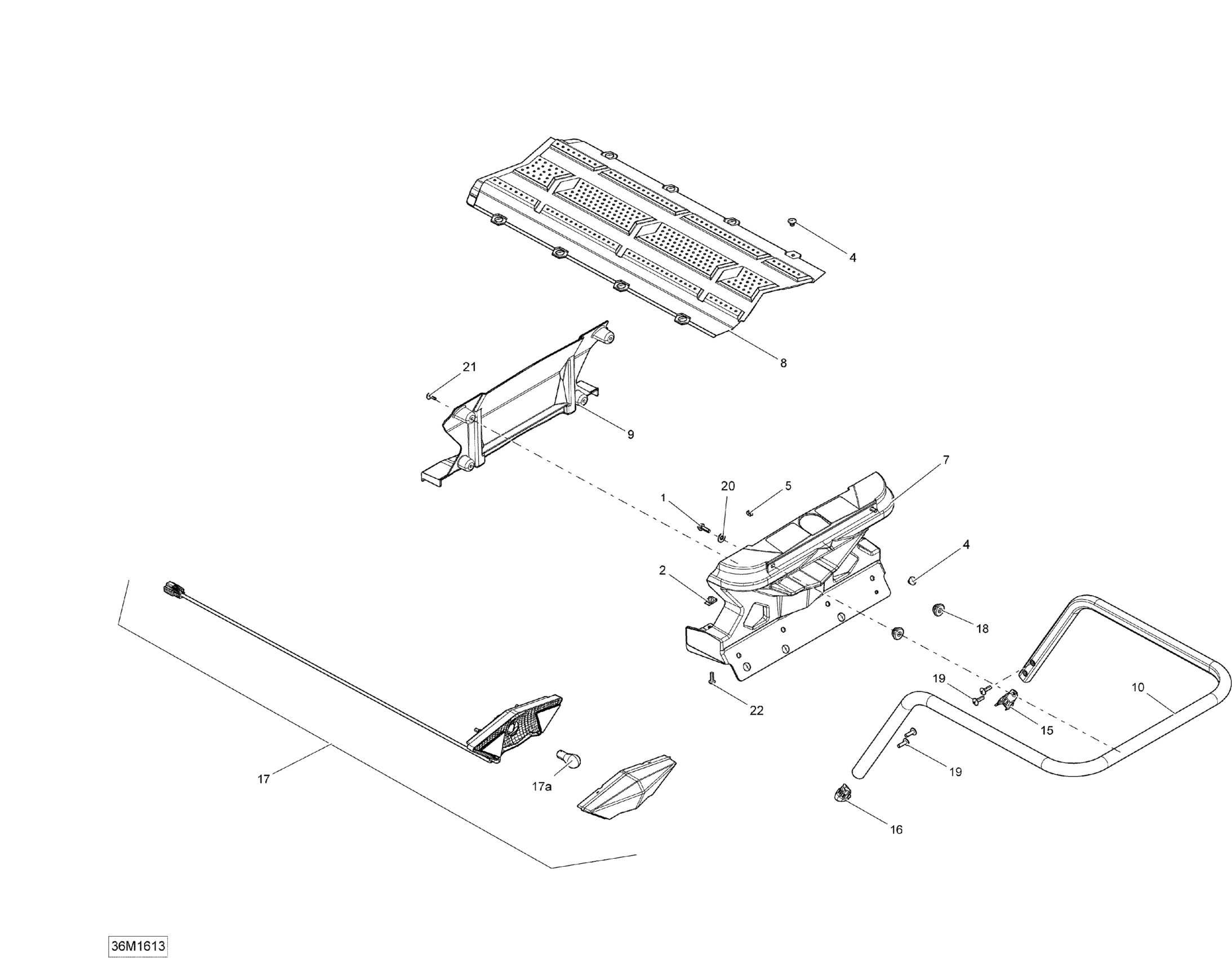

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Luggage Rack Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Panel Nut M5 X 0.8

250000958

$4.23

4

Pop Rivet 3/16"

293150103

$0.55

5

Tie Wrap 142 mm

293750002

$1.25

7

Rear Light Support

511000625

$45.99

8

Radiator Cover, 154'' | LT

511000681

$36.99

9

Rear Cover Support | Not Shown

511000701

$37.99

10

Luggage Rack

511000705

$121.99

15

RH Cap

520000985

$19.99

16

LH Cap

520000986

$18.49

17

Rear Light | Includes 200 to 200a

520001559

$93.49

17a

Bulb

520000758

$9.10

18

Stopper Rubber

705014429

$5.95

19

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

20

Flat Washer 6 mm

234062410

$0.77

21

Screw M4 X 16

250000725

$3.49

22

Torx Screw M5 X 20

250000724

$1.69
