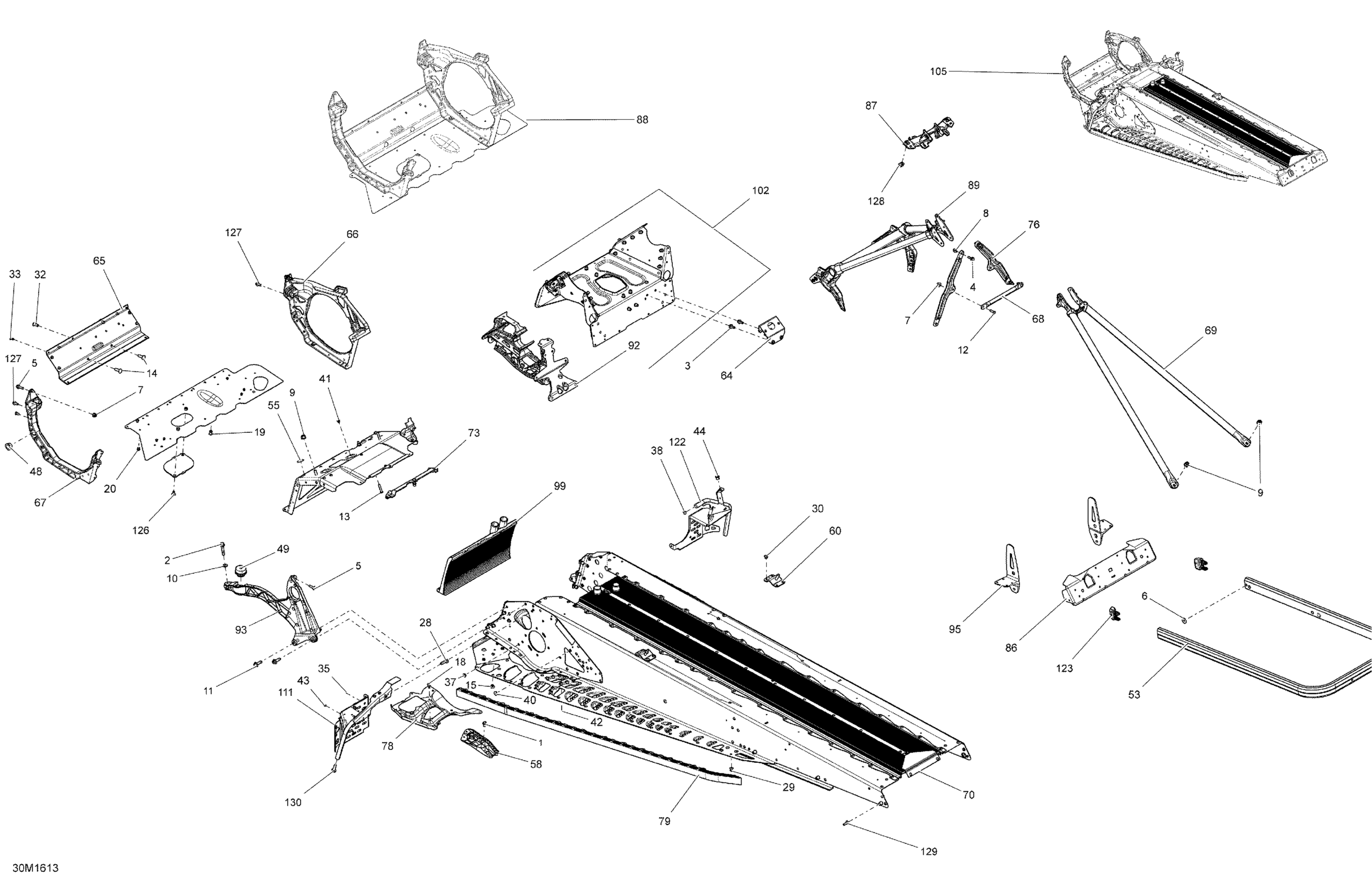

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

Hex. Flange Screw, Scotch Grip

207584034

$2.00

3

Hex. Flange Screw M6 X 16

207661644

$0.70

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Screw M6 X 25

207662544

$0.61

6

Flat Washer

224061201

$1.27

7

Hex. Flange Nut M6

233161414

$2.00

8

Elastic Flange Nut M6 X 1.0

233261416

$2.00

9

Hex. Flange Elastic Nut M8

233281414

$1.31

10

Conical Spring Washer M8

234281474

$1.43

11

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

12

Clinch Stud M6 X 20

250300027

$1.87

13

Clinch Stud M6 X 30

250300031

$1.87

14

Clinch Stud

250300038

$3.88

15

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

18

Hemlock Rivet, 6.5 mm

293150119

$3.88

19

Hemlock Rivet 6.5 mm

293150120

$7.01

20

Stavex Rivet

293150144

$0.75

28

Henrob Rivet

293150146

$1.87

29

Ornit Rivet 6,5 X 14.5

293150266

$1.88

30

Hemlock Rivet, 6.4 mm

293150174

$6.24

32

Monobolt Rivet 6.4

293150182

$2.82

33

Monobolt Rivet, 4.8 mm

293150191

$0.93

35

Insert M5 X 0.8

293450268

$1.90

37

Full Moon Dart 8 mm

293730041

$2.06

38

Full Moon Dart 5 mm

293730042

$2.06

40

Full Moon Dart 10 mm

293730059

$4.28

41

Pop Rivet 3/16"

390402400

$0.28

42

Avex Rivet

390909100

$0.28

43

Avex Rivet

390909200

$0.28

44

Insert

293450275

$11.36

48

Leg Cushion

505073317

$5.75

49

Vibration Damper

512061516

$55.94

53

Clear Rear Bumper

518325579

$106.69

55

Adhesive Patch

518325560

$4.21

58

RH Deflector, Black Polypropylene

518325782

$11.42

58

LH Deflector, Black Polypropylene

518325783

$11.42

60

RH Rear Base

518325973

$17.88

60

LH Rear Base | Includes 10v to 10x

518325974

$17.88

64

Engine Support

518326178

$61.16

65

Front Member

518326198

$58.18

66

RH Side Member

518326328

$252.21

67

LH Side Member

518326330

$252.21

68

Center Column Support

518326355

$20.12

69

Rear Member

518326559

$237.28

70

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$679.07

73

Seal

518326656

$8.18

76

Upper Column Support

518326848

$12.67

78

RH Reinforcement, Running Board

518326937

$24.60

78

LH Reinforcement, Running Board

518326938

$24.60

79

RH Roller

518328098

$175.34

79

LH Roller

518328099

$175.34

86

Rear Cap

518327105

$20.12

87

Sub A Support

518327145

$76.84

88

E Module | Includes 10ad to 10ap

518328078

$461.16

89

Front Member

518327565

$306.69

92

Front Suspension Support

518327487

$259.67

93

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

95

RH Suspension Bracket

518327605

$44.75

95

LH Suspension Bracket

518327606

$44.75

99

Front Radiator Ass'y | Includes 10a to 10b

518327907

$502.21

102

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

105

FRAME 154 EXPEDITION - Call your local BRP dealership | Includes 10 to 10aw

415130266

Unavailable

111

LH Stirup | Includes 10s to 10t

518328528

$155.94

122

RH Stirup | Includes 10p to 10q

518328942

$155.94

123

Full Moon RH Cap

520000711

$8.34

123

Full Moon LH Cap

520000712

$8.34

126

Torx Truss Screw M6 X 12

250000767

$1.91

127

Hex. Flange Screw M6 X 16

210261650

$1.40

128

Panel Nut M5 X 0.8

250000958

$4.00

129

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

130

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81
