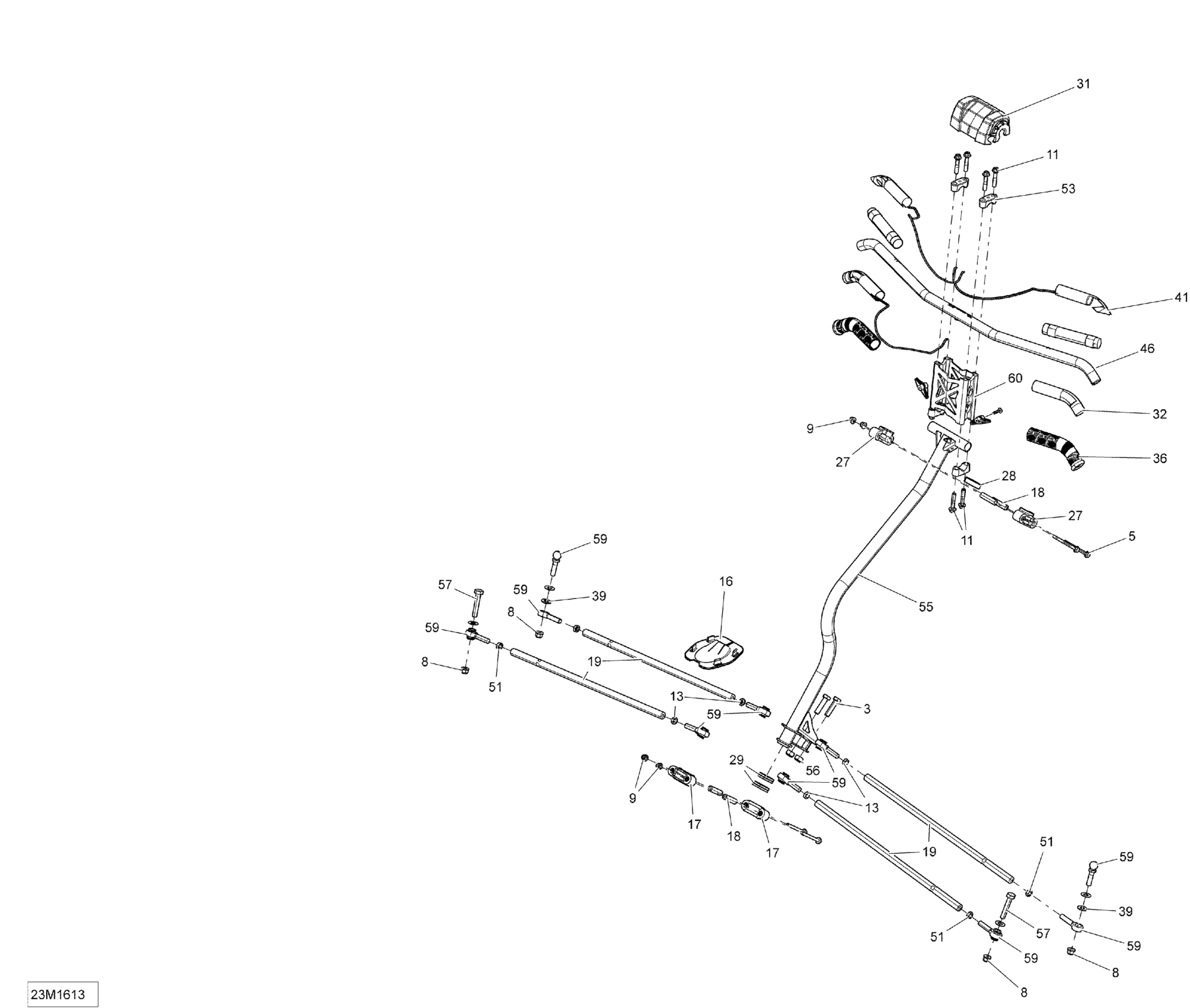

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Steering Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

11

Hex. Flange Screw M8 X 40

250000352

$3.26

13

LH Threaded Hex. Jam Nut M10

250100016

$0.72

16

Plate

506152163

$10.23

17

Lower Half-Housing

506152217

$5.57

18

Housing Bushing

506152297

$10.23

19

Tie-Rod

506152498

$36.89

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

$4.52

31

Deep Black, Steering Pad

506152541

$42.28

32

Thermal Insulation

506153176

$5.71

36

Grip 148mm

506152560

$16.12

39

Washer

506152582

$4.42

41

Heating Element 32 Watt 3 Wires

506152798

$49.20

41

Heating Element 32 Watt 2 Wires

506152758

$43.82

41

RH Heating Element 32 Watt

506152799

$35.35

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

51

RH Threaded Hex. Jam Nut M10

732610010

$0.72

53

Steering Support | Includes 40 to 40a

506152751

$10.09

53

Steering Support | Model-Extreme

548873704

$12.69

55

Steering Column

506152964

$189.20

56

Elastic Locking Nut M10

233601466

$1.74

57

Hex Screw M10 X 1.5 X 55

207005554

$6.18

59

RH Threaded Ball Joint

506152019

$39.97

59

LH Thread Ball Joint

506152081

$39.97

60

Riser Kit

860200820

$86.99

60

Riser Kit

860200820

$86.99

60

Riser Kit

860200820

$86.99
