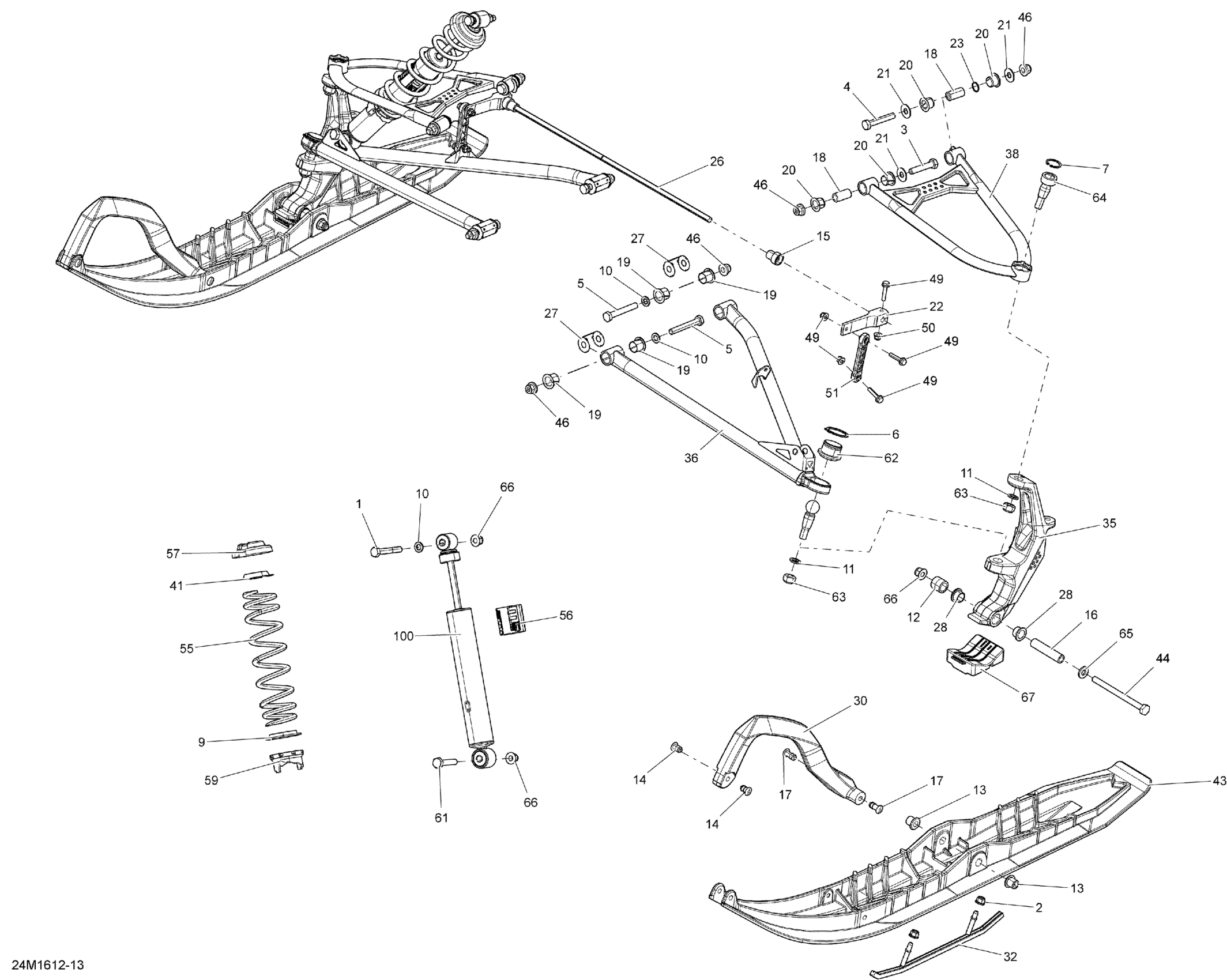

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Front Suspension And Ski Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

2

Hex. Flange Elastic Nut M8

233281414

$1.47

3

Screw Hex. M10 X 50

250001022

$1.69

4

Screw Hex. M10 X 60

250001023

$2.11

5

Screw Hex. M10 X 70

250001024

$2.11

6

Circlip

293370035

$2.64

7

Circlip

293370070

$8.99

9

Spring Guide

503187500

$10.49

10

Washer

503189564

$0.74

11

Washer

503192491

$4.54

12

Spacer

503193651

$9.69

13

Ski Bushing

505071781

$16.18

14

Retainer 17mm long

505071812

$5.95

15

Bushing

505072064

$2.32

16

Spacer

506133300

$23.99

17

Retainer 23mm Long

505072133

$6.78

18

Sleeve

505072143

$9.00

19

Bushing

505072208

$3.28

20

Bushing

505072250

$3.28

21

Washer

505072392

$4.76

22

Stabilisator Lever

505072394

$18.73

23

O-Ring

505072448

$2.32

26

Stabilisator

505072602

$68.99

27

Wear Plate

505072634

$6.29

28

Leg Bushing

505072690

$12.49

30

Black, Handle

505072976

$35.99

32

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

35

White, LH Ski Leg

505073559

$249.99

35

White, RH Ski Leg

505073560

$249.99

36

Black, LH Lower Arm

505072498

$204.99

36

Black, RH Lower Arm

505072497

$204.99

38

LH Upper Arm 39"

505073468

$154.99

38

RH Upper Arm 39"

505073469

$154.99

41

Cap

706200785

$4.69

57

Spring Stopper

706200881

$12.99

43

Black, Ski

505073227

$179.99

44

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

46

Hex. Flange Elastic Nut M10

250100165

$0.85

49

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

50

Hex. Flange Elastic Nut M6

233261466

$2.00

51

Sway Bar Double Joint Link

505072204

$21.99

55

Full Moon Spring | Europe Models

505072518

$67.99

55

Full Moon Spring

505072897

$67.99

55

Full Moon Spring

505073521

$67.99

56

Shock Decal "HPG" | Europe Models

516005533

$14.99

56

Shock Decal "Mc"

516005535

$12.99

59

Adjustment Cam

505073625

$12.99

61

Hex Screw M10 X 1.5 X 55

207005554

$7.51

62

Ball Joint

505073636

$51.99

63

Hex Elastic Nut M12 X 1.25

232521464

$2.11

64

Upper Ball Joint

505072913

$72.99

65

Washer

503192496

$0.77

66

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

67

Ski Stopper

505072594

$18.49

100

Front Shock | Europe Models

505073139

$248.99

100

Front Shock

505073181

$164.49
