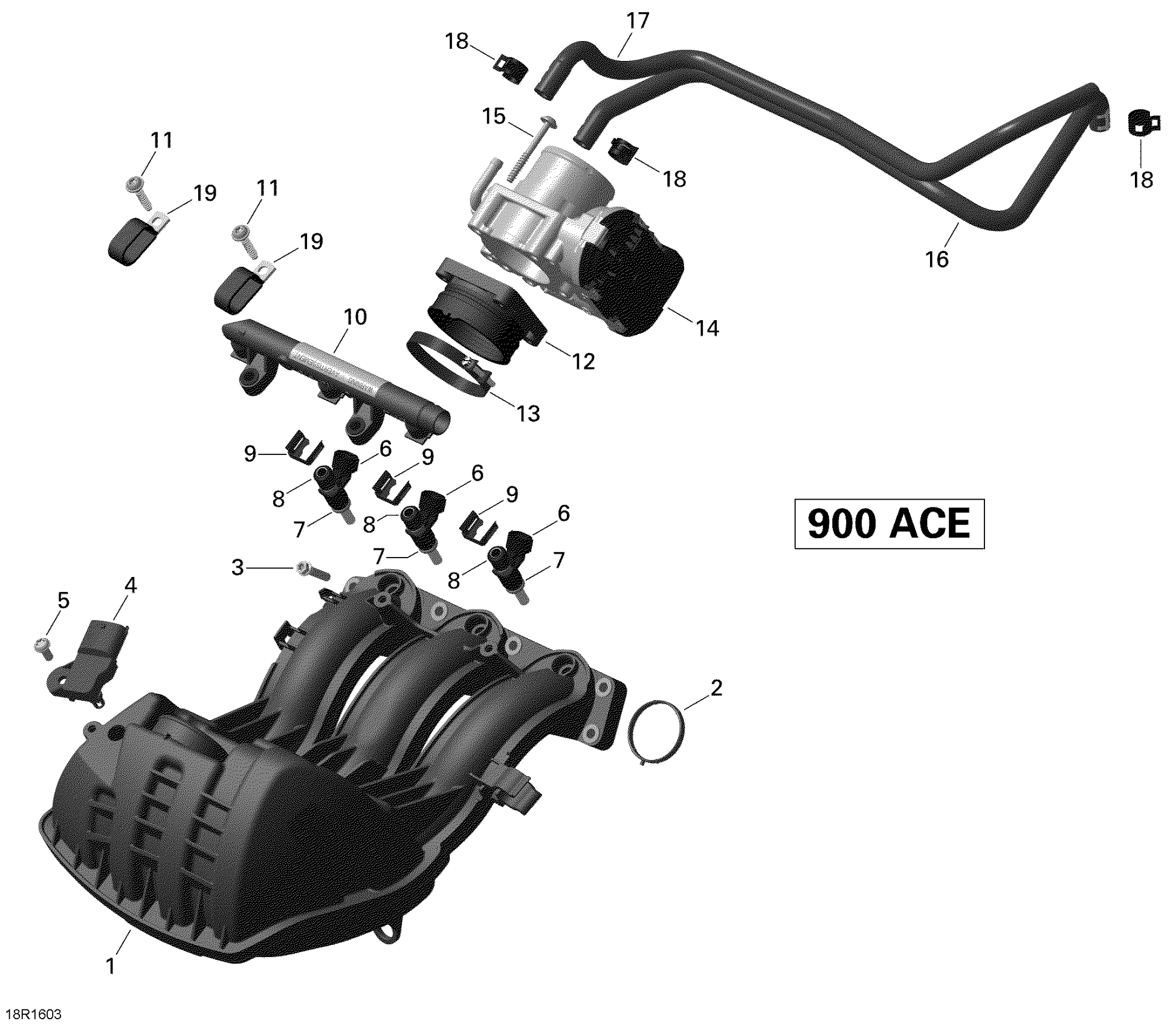

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 Air Intake Manifold and Throttle Body - 900 ACE Diagram

Description

Price

Air Intake Manifold Ass'y | Includes 1 to 2

420867340

Unavailable

Gasket | Included in gasket kit

420431662

$7.87

Torx Flange Screw M6 X 30

420440647

$1.91

Pressure And Temperature Sensor

707000995

$70.82

Torx Flange Screw M6 X 16

420641588

$1.74

Injection Valve Ass'y | Includes 18 to 20

420874847

$114.37

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

Injector Clip

420853030

$2.46

Fuel Rail

420874965

$13.10

Torx Screw 6X30

420441575

$2.54

Intake Neck

420867110

$34.30

Hose Clamp

420251830

$13.10

Throttle Body

420893148

$354.45

Torx Flange Screw M6 X 50

420441588

$3.61

Molded Hose

420201505

$29.07

Molded Hose

420201500

$23.85

Clamp

420853511

$7.09

Double Clamp

420951830

$12.15
