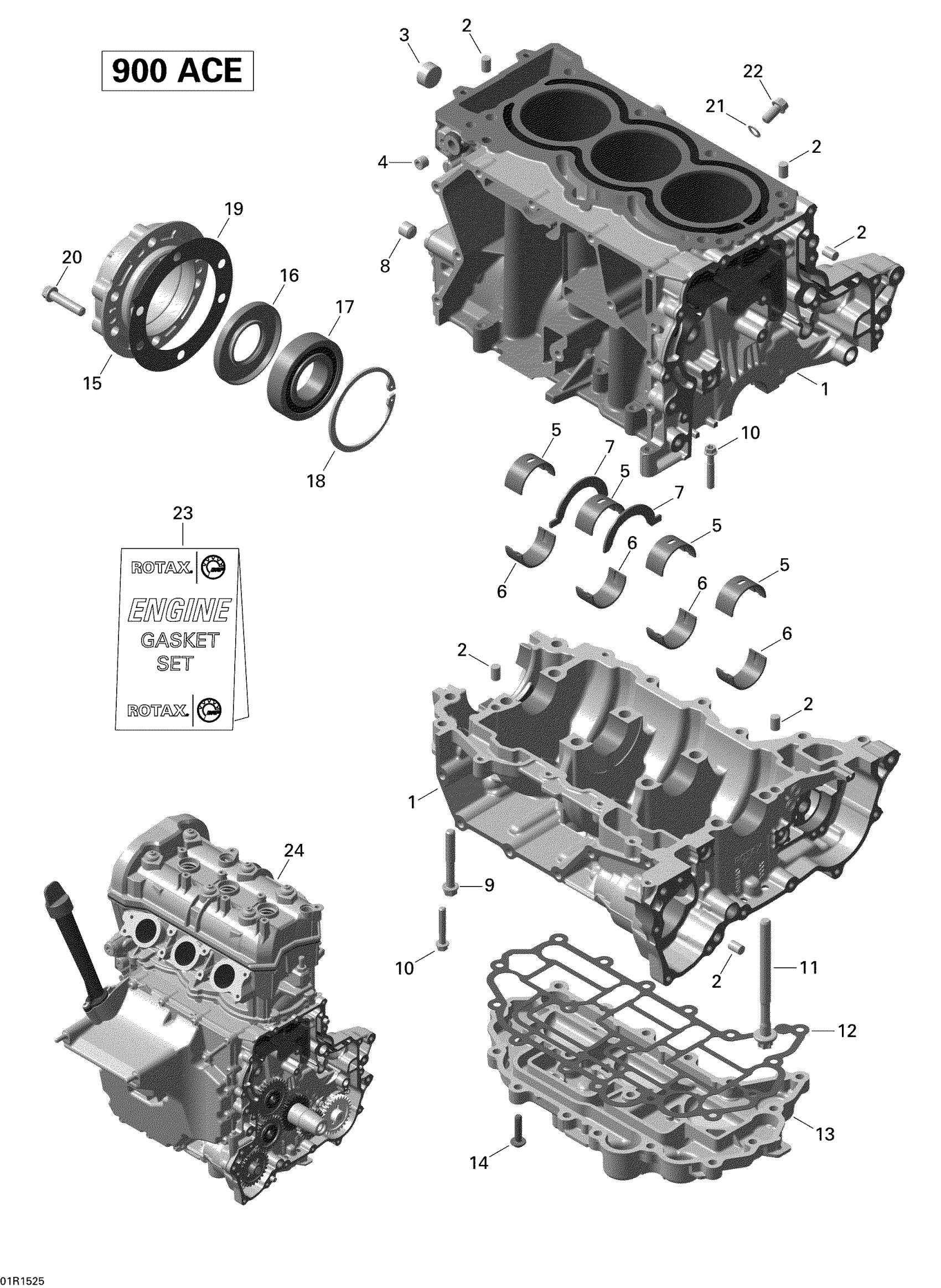

Ski-Doo EXPEDITION - SPORT 4-STROKE, 2016 01- Crankcase - 900 ACE Diagram

#

Description
Price

1

Engine Block Ass'y | Includes no. 1-6

420893138

$2.00

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Cushion

420933180

$17.58

6

Cushion

420933185

$18.49

7

Ring Half

420933140

$11.60

8

Threaded Pin

420840500

$7.65

9

Torx Flange Screw M8 X 55

420641213

$7.41

10

Torx Flange Screw M6 X 35

420440274

$1.01

11

Torx Flange Screw M9 X 113

420940945

$13.70

12

Gasket

420431820

$15.89

13

Oil Sump

420912380

$96.49

14

Torx Flange Screw M6 X 25

420841549

$2.00

15

PTO Cover | Includes no. 15-18

420911845

$103.99

16

Oil Seal

420431402

$19.49

17

Ball Bearing

420832232

$13.16

18

Retaining Ring

420845790

$7.51

19

PTO Cover Gasket

420450080

$7.65

20

Torx Flange Screw M8 X 35

420641188

$7.41

21

Sealing Ring

420950141

$2.00

22

Torx Flange Screw M8 X 16

420440852

$4.12

23

Engine Gasket Set

420686235

$572.49

24

Long Block 903 | Except Europe

420090301

$4.00
