Description

Price

1

Hex. Flange Elastic Nut M5

233251414

$1.04

2

Flat Washer 4 mm, Stainless

234042600

$1.15

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Rubber Washer 5 mm

250200024

$2.19

5

Washer M5

250200025

$0.74

6

Black, Cap

275500241

$3.49

7

RH Panel Clip

513033471

$7.19

8

LH Panel Clip

513033472

$5.99

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

10

Cap

515176498

$12.99

11

Rubber Cap Protector

219800280

$19.49

12

White Console | Bright White

517305274

$219.99

13

RH Air Deflector

517303604

$43.99

14

LH Air Deflector

517303605

$43.99

15

Windshield Support

517303607

$34.99

16

Deep Black, RH Panel

517304029

$211.99

17

Deep Black, LH Panel

517304030

$211.99

18

RH Panel Latch

517303612

$9.99

19

Grille

517303622

$31.99

20

Deep Black RH Moulding Panel

517303671

$28.99

21

Deep Black, LH Moulding Panel

517303673

$28.99

22

Grommet

517303756

$4.09

23

LH Panel Latch

517303808

$11.49

25

Black Latch Kit | Includes 390 to 400

860200239

$16.88

26

Panel Latch

517303981

$12.99

27

RH Panel Rear Foam

517304884

$19.99

28

LH Panel Center Foam

517304887

$27.99

29

LH Panel Lower Foam

517304888

$22.49

30

LH Panel Upper Foam

517304889

$21.99

31

LH Panel Rear Foam

517304890

$17.99

32

Foam

517304891

$21.99

33

RH Decal

517304103

$19.99

34

LH Decal

517304104

$19.99

35

Console Decal

517304105

$13.99

36

Torx Truss Screw M6 X 20

250000705

$2.11

37

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

38

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

39

Latch Support

517304221

$9.19

40

RH Center Foam

517304883

$43.99

41

Black, RH Console | Includes 400 to 400b

517304322

$35.99

43

Foam

517304885

$19.99

44

Foam

517304886

$19.99

45

Foam

517304882

$19.99

46

Console Nut

517304518

$15.29

47

White Hood

517304492

$164.99

49

Gauge Support

517304578

$58.99

50

Windshield 450 | Bright White

517304766

$164.99

51

Hood Foam

517304913

$22.49

52

Heat Shield | Europe

517305451

$2.29

53

Push Nut

732610072

$2.19

54

Panel Nut M6 X 1.0

250100198

$2.11

55

Torx Truss Screw M6 X 16

250000721

$1.69

58

Screw M4 X 16

250000725

$3.49

61

Torx Screw K50 X 16

250000720

$1.69

62

Torx Screw M5 X 20

250000792

$2.11

62

Torx Truss Screw M6 X 20

250000705

$2.11

66

Torx Truss Screw M6 X 20

250000705

$2.11

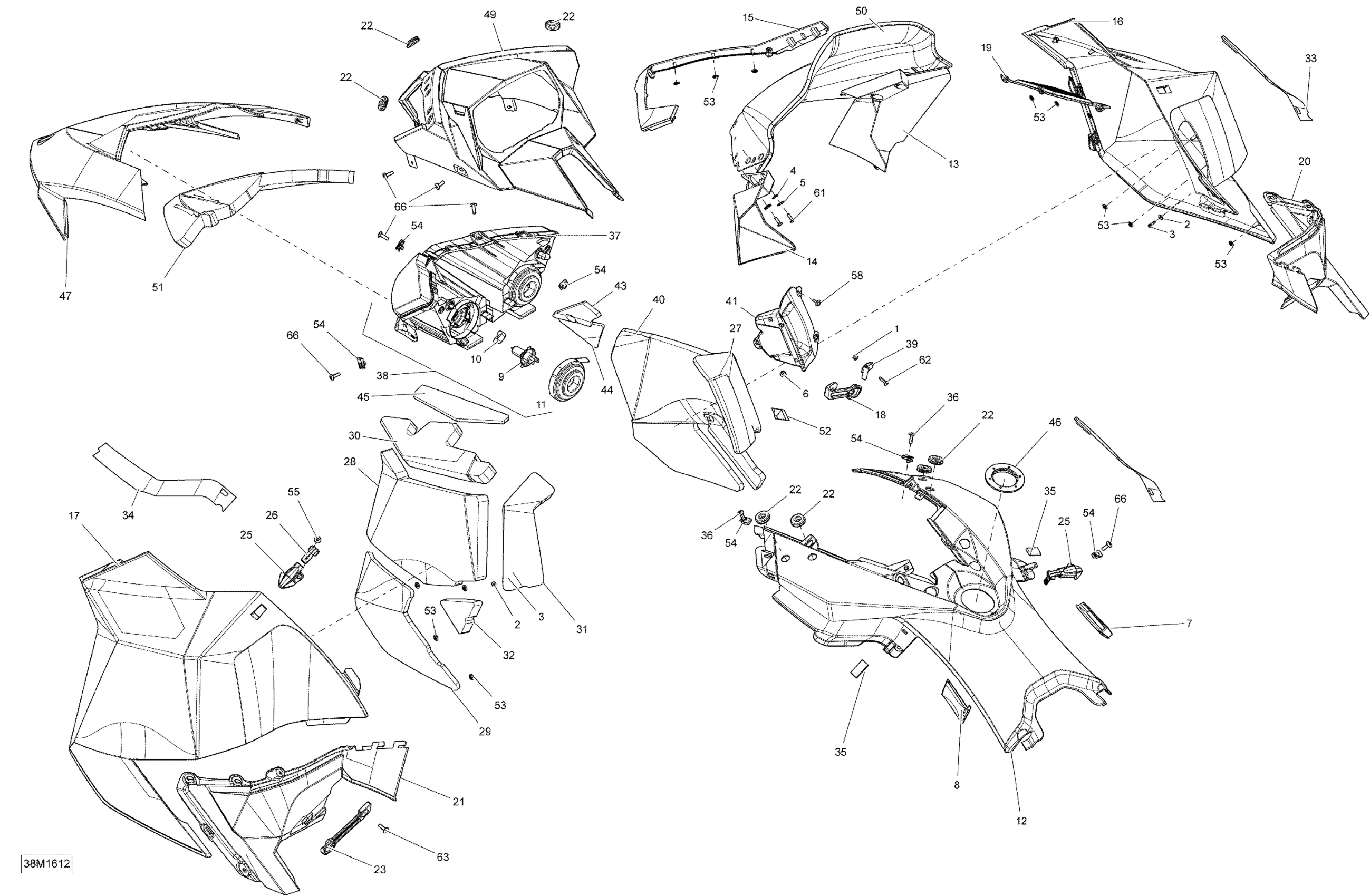

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 09- Hood Diagram

Hex. Flange Elastic Nut M5

Flat Washer 4 mm, Stainless

Hex. Flange Screw K40 X 16

Rubber Washer 5 mm

Washer M5

Black, Cap

RH Panel Clip

LH Panel Clip

Halogen Bulb, 60/55 W, 12 V ( H4 )

Cap

Rubber Cap Protector

White Console | Bright White

RH Air Deflector

LH Air Deflector

Windshield Support

Deep Black, RH Panel

Deep Black, LH Panel

RH Panel Latch

Grille

Deep Black RH Moulding Panel

Deep Black, LH Moulding Panel

Grommet

LH Panel Latch

Black Latch Kit | Includes 390 to 400

Panel Latch

RH Panel Rear Foam

LH Panel Center Foam

LH Panel Lower Foam

LH Panel Upper Foam

LH Panel Rear Foam

Foam

RH Decal

LH Decal

Console Decal

Torx Truss Screw M6 X 20

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Latch Support

RH Center Foam

Black, RH Console | Includes 400 to 400b

Foam

Foam

Foam

Console Nut

White Hood

Gauge Support

Windshield 450 | Bright White

Hood Foam

Heat Shield | Europe

Push Nut

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Screw M4 X 16

Torx Screw K50 X 16

Torx Screw M5 X 20

Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
