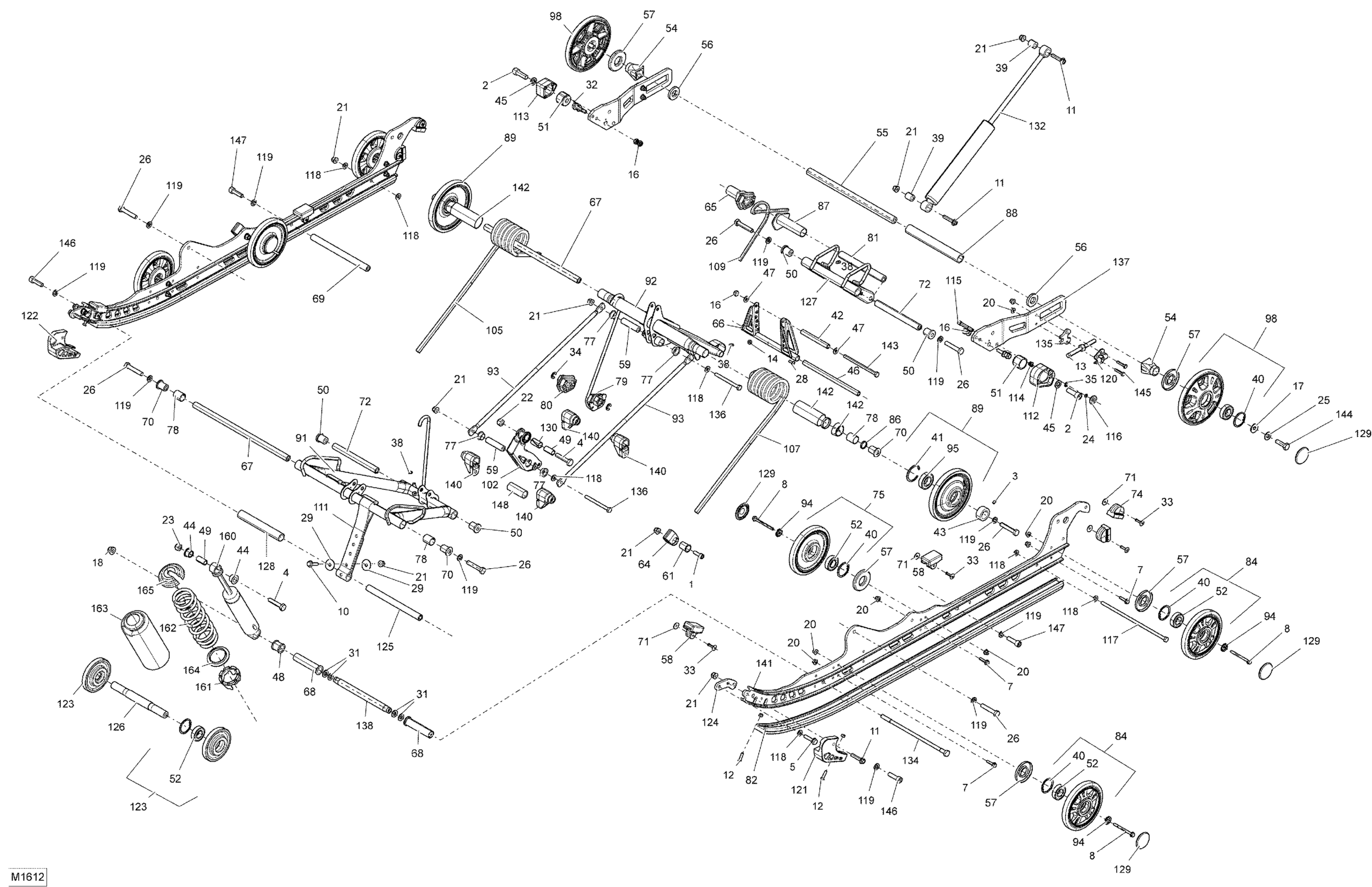

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Rear Suspension Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$2.00

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

3

Socket Set Screw M6 X 8

206260844

$1.43

4

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5

Hex. Flange Screw M8 X 35

250000986

$2.00

7

Hex. Flange Screw M6 X 25

207662556

$4.15

8

Hex. Flange Screw M6 X 70

207667056

$4.15

9

Hex. Flange Screw M8 X 25

207682534

$1.03

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

11

Hex. Flange Screw M8 X 40

207684044

$1.43

12

Phillips Screw M6 X 25

208562531

$2.00

13

Hex Screw M10 x 100

230100054

$6.07

14

Hexagonal Nut M6

232061404

$0.31

15

Elastic Stop Nut M6

232561434

$1.78

16

Hex. Elastic Stop Nut M8

232581414

$0.54

17

Washer

503191910

$2.18

18

Flange Elastic Nut M10

233201466

$3.01

20

Hex. Flange Elastic Nut M6

233261466

$1.91

21

Elastic Flange Nut M8

233281466

$0.96

22

Elastic Locking Nut M10 X 1.5

233601416

$1.63

23

Elastic Locking Nut M10

233601466

$2.00

24

Flat Washer M5

234051410

$0.51

25

Conical Spring Washer 10 mm

234201474

$1.60

26

Hex. Screw S.Grip M10 X 55

250000605

$7.09

28

Torx Screw M5 X 14

250000742

$1.37

29

Flat Washer 8 mm

250200128

$2.00

31

Flat Washer

250200143

$3.01

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

33

Pop Rivet 3/16"

293150013

$1.27

34

E-Circlip

293370013

$0.60

35

Circlip

293370068

$0.90

36

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Grease Fitting

408200700

$3.21

39

Bushing

414936000

$11.21

40

Retaining Ring

415129371

$8.66

41

Retaining Ring

415129780

$13.46

42

Upper Axle, Pivot Arm

503144300

$10.84

43

Retaining Ring

503168800

$12.27

44

Urethane Bushing

503189117

$6.67

45

Washer | 7415/7416. 7417/7418.

503189148

$2.64

46

Pivot Arm Axle

503189156

$20.12

47

Washer

503189157

$3.10

48

Bushing

503189271

$10.15

49

Bushing | Includes 240d to 240d1

503189282

$4.06

50

Bushing

503189324

$10.84

51

Block Guide

503189488

$36.54

52

Ball Bearing | Package-STD

503190396

$8.18

54

Rear Wheel Spacer

503190428

$5.88

55

Rear Axle

503190429

$58.18

56

Washer

503190432

$12.15

57

Labyrinth Seal

503190434

$4.16

58

Rubber Stopper

503190576

$9.93

59

Axle Bar (Long)

503190643

$14.90

61

Spring Support Kit

861805547

$7.90

64

Spring Support Kit

861805547

$7.90

65

RH Spring Cam

503191190

$13.37

66

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

67

Upper Shaft

503191215

$35.04

68

Center Bushing

503191259

$8.70

69

Axle Strap

503191260

$28.33

70

Bushing

503191262

$13.19

71

Washer

503191273

$1.03

72

Lower Shaft

503191279

$26.84

74

Rubber Stopper

503191291

$17.88

75

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

77

Swivel Bushing

503191555

$5.54

78

Extended Bushing

503191556

$5.54

79

LH Cam Adjuster

503191565

$13.54

80

RH Cam Adjuster

503191566

$13.54

81

Cam Axle

503191608

$14.58

82

Black Slider, 154"

503192618

$32.06

84

Full Moon Wheel Ass'y, 147 mm

503191624

$44.75

86

Washer

503191651

$7.27

87

LH Spring Cam

503191668

$9.88

88

Rear Spacer, Long

503191736

$14.90

89

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

91

Front Arm | Includes 2000a to 2000b

503191752

$344.75

92

Rear Arm | Includes 3000a to 3000a7

503191762

$91.01

93

Link Rod

503191765

$17.13

94

Wheel Cup M6

503191820

$4.52

95

Ball Bearing

503193548

$16.39

98

Full Moon Wheel Ass'y, 165 mm

503192130

$48.48

102

Rocker

503192211

$76.09

105

Black, RH Spring Square

503192270

$76.09

107

Black, LH Spring Square

503192271

$76.09

109

Spring

503194624

$29.07

111

Stopper Strap

503192360

$19.37

112

LH Block

503192426

$12.31

113

RH Block

503192427

$12.31

114

Compression Spring

503192436

$36.54

115

Rode

503192437

$5.67

116

Handle

503192438

$4.52

117

Bolt M8 X 248mm

503192440

$29.07

118

Washer

503192494

$3.01

119

Washer

503192496

$0.73

120

Tensioner

503192583

$5.67

121

LH Protector

503192609

$26.09

122

RH Protector

503192610

$26.09

123

Black, Wheel Ass'y, 100 mm

503192611

$31.31

124

Plate

503192612

$11.10

125

Axle Strap

503192613

$33.55

126

Front Wheel Axle

503192644

$141.76

127

Runner Pivot | Includes 100c to 100c3

503192647

$50.72

128

Spacer

503196943

$7.36

129

Black, Wheel Cap

503192771

$2.21

130

Bushing

503193037

$14.90

132

Rear Shock HPG Seal

503193193

$231.31

134

Bolt M10 X 251MM

503193227

$15.64

135

Spacer

503193250

$13.54

136

Screw M8 X 90

503193372

$4.15

137

Black, RH Pivot Support Long

503195759

$81.31

137

Black, LH Pivot Support Long

503195760

$81.31

138

Pivot Axle

503193435

$37.28

140

Casted Support

503193894

$12.37

141

Runner

503193723

$217.13

142

Bushing

572080700

$14.81

143

Bolt M8, Short

732601197

$14.61

144

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

145

Hex. Cap Screw M6 X 30

207063054

$5.06

146

Socket Head Screw M10 X 35

205503554

$7.09

147

Socket Head Screw M10 X 35

205503554

$7.09

148

Bushing

503191552

$5.54

160

Center Shock

503192266

$152.96

161

Adjustment Cam

505073625

$11.82

162

Black, Spring

503191882

$58.18

163

Protector

503193663

$34.30

164

Spring Guide

503191872

$2.12

165

Spring Stopper

706200881

$11.82
