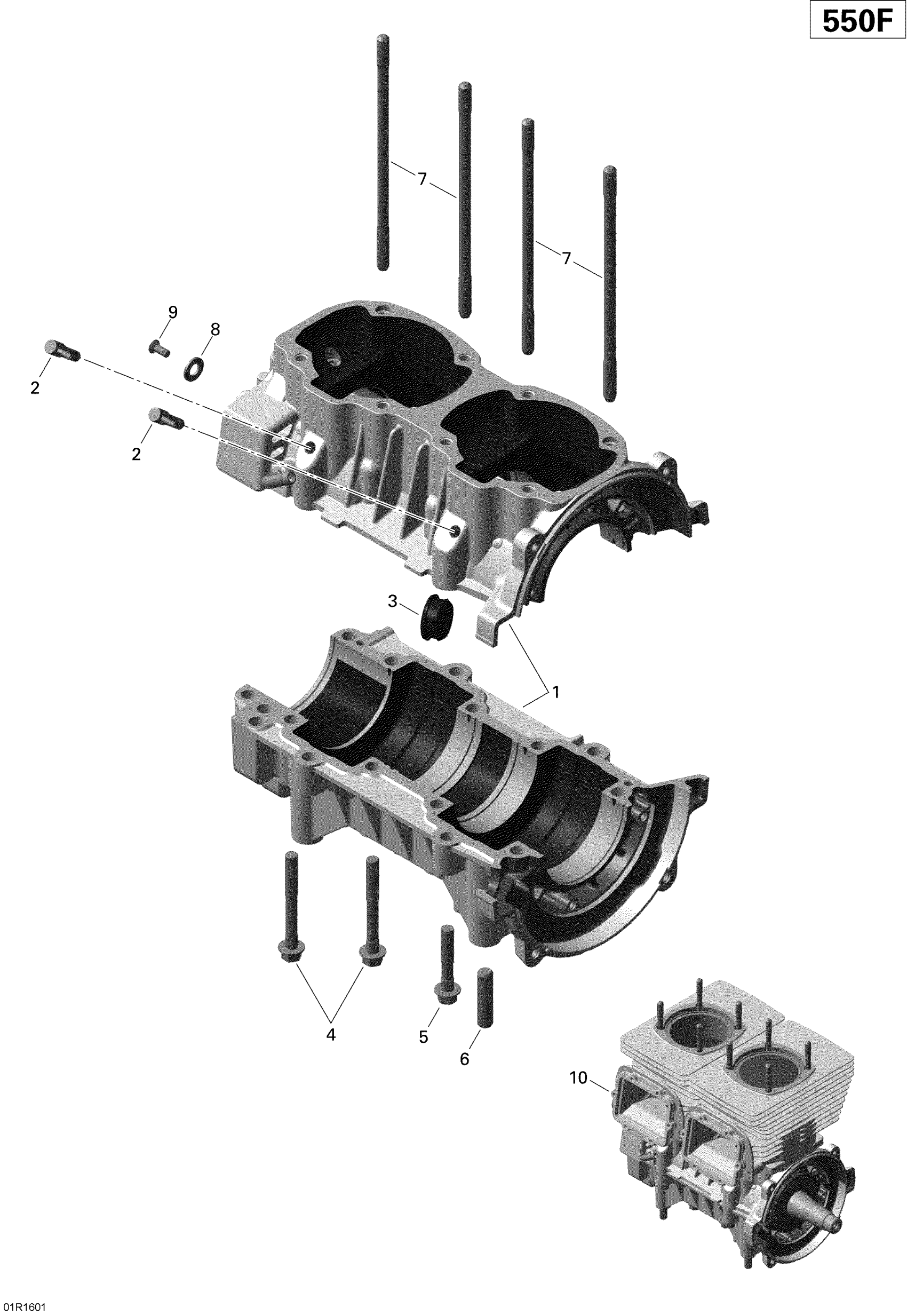

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Crankcase - 550F Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$755.99

2

Check Valve

420956511

$35.99

3

Cable Grommet

420860962

$13.16

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

5

Hex. Collar Screw M8 x 45

420640432

$8.57

6

Stud M10 X 45

420840266

$13.16

7

Stud M8 X 173.5

420840556

$15.89

8

Flat Washer 8.4 mm

420250315

$1.15

9

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.11

10

Short Block 552 XP

420055208

$1.00

10

Short Block 552 XP

420055208

$1.00
