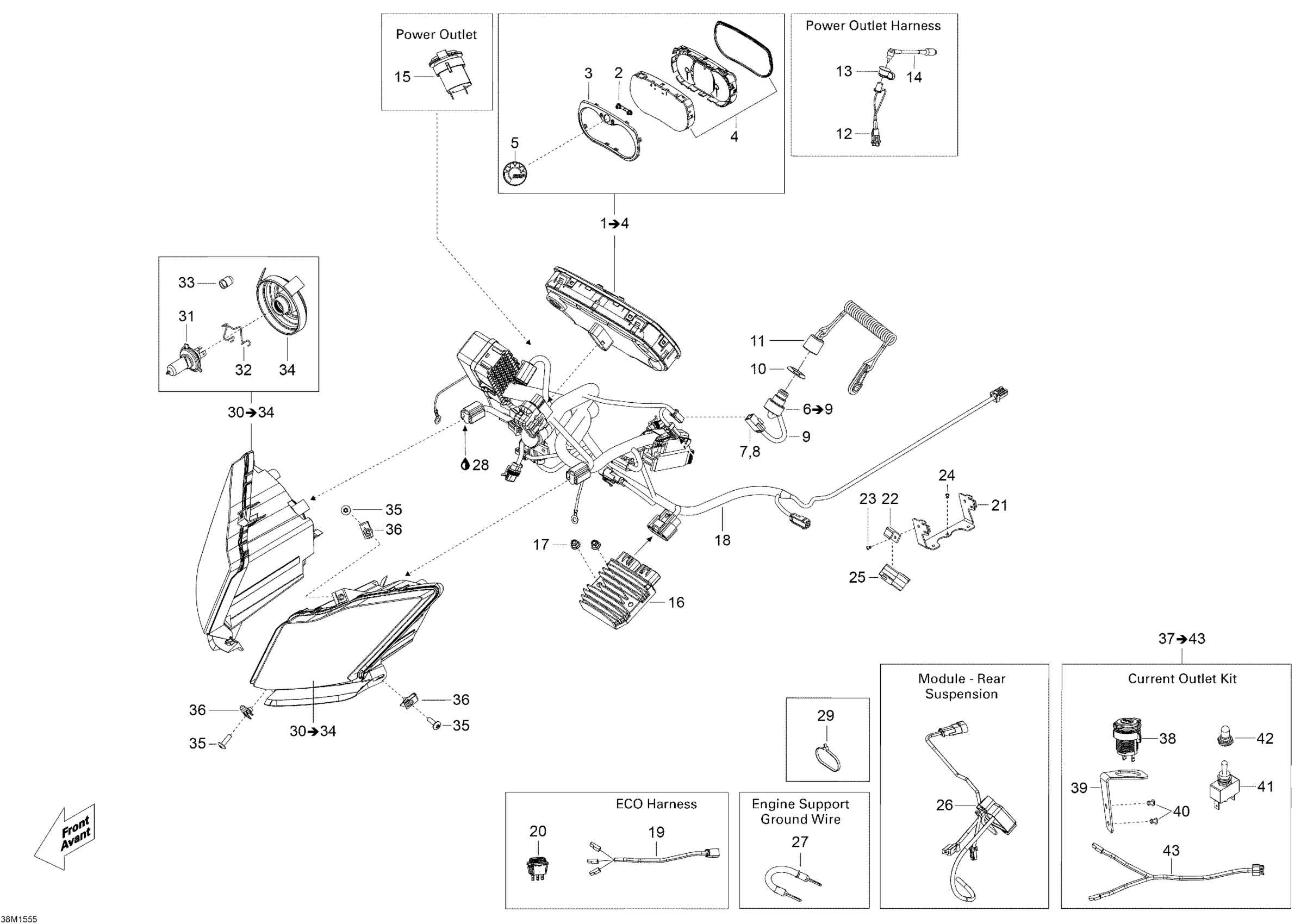

Ski-Doo Expedition SE 900 ACE, 2015 Electrical System _38M1555 Diagram

#

Description
Price

1

Indicator | Except Package SWT

515177913

$569.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Male Terminal

515175232

$1.58

8

Male Housing, 3 Circuits

515175494

$16.18

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.28

11

DESS

515178284

$84.99

11

DESS CAP (LEARNING KEY) - Call your local BRP dealership

860200907

Unavailable

12

Visor Harness

515177837

$33.99

13

Cap

572103300

$10.49

14

Extension

515175851

$11.12

15

DC Outlet

710001248

$37.99

16

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Main Harness | Includes 1 To VMS

515177482

$669.99

19

Eco Switch Wiring Harness This part replaces 515177568.

515179615

$104.99

20

ECO Rocker Switch

515177569

$19.49

21

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

22

Clip

270000141

$11.49

23

Avdel Rivet 3/16"

293150037

$0.56

24

Pop Rivet 3/16"

390402200

$0.35

25

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

26

Compressor Module | With Air Suspension

515177125

$539.99

27

Ground Wire

515176883

$28.99

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Tie-Rap 180 mm

414115200

$0.11

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tie Wrap 142 mm

293750002

$1.25

30

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

30

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

31

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Cap

515176498

$12.99

34

Rubber Cap Protector

219800280

$19.49

35

Torx Screw M6 X 20

250000722

$1.68

36

Panel Nut M6 X 1.0

250100198

$2.11

37

CURRENT OUTLET KIT - Call your local BRP dealership | Includes 20 to 20,007

860200285

Unavailable

38

DC Outlet

710001248

$37.99

39

CURRENT OUTLET BRACKET - Call your local BRP dealership

515176801

Unavailable

40

Rivet

36108

$1.90

41

Heat Grip Switch

410110700

$31.99

42

Switch Cover

515175281

$15.99

43

Harness

515176802

$38.99
