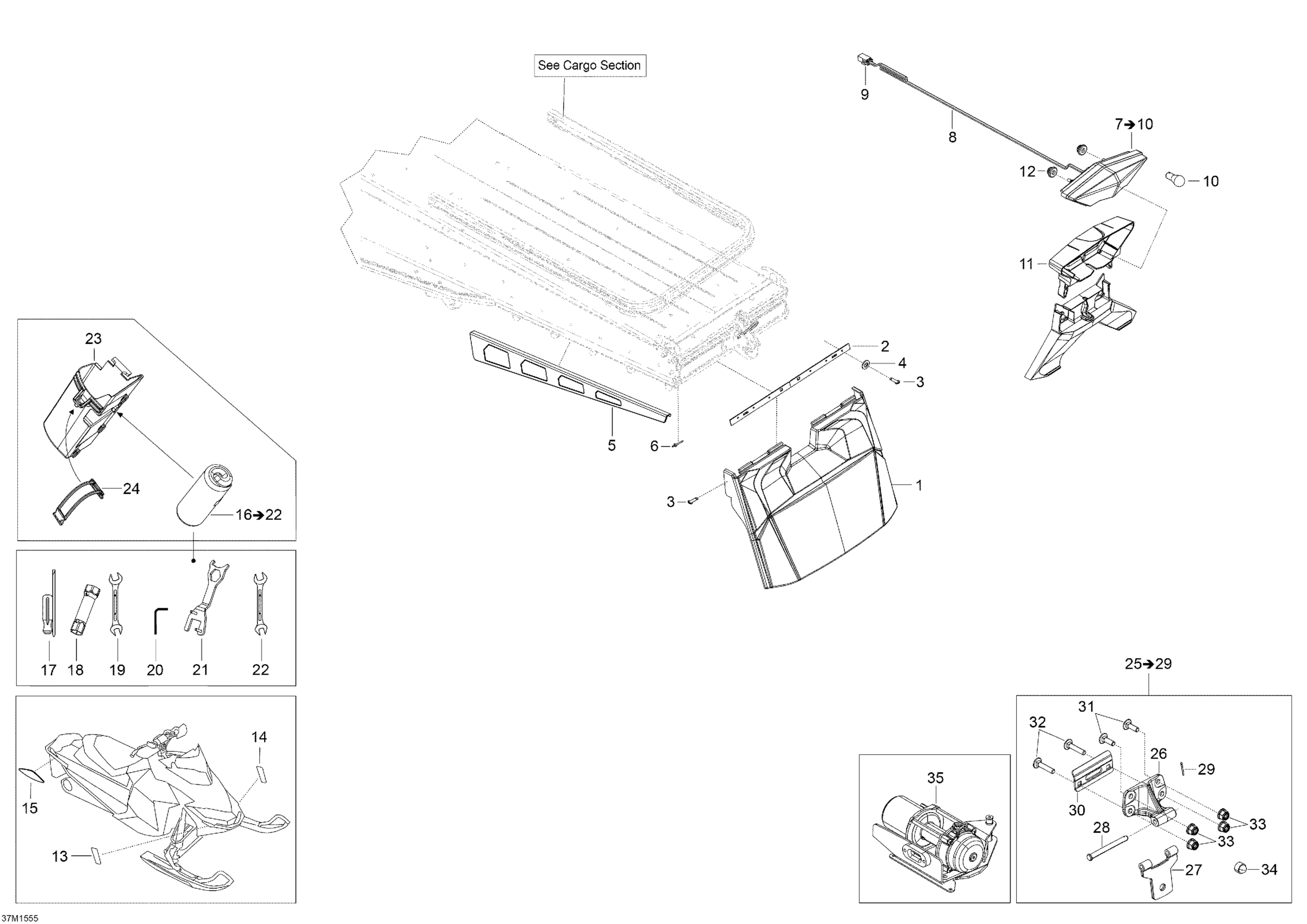

Ski-Doo Expedition SE 900 ACE, 2015 09- Utilities _37M1555 Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Yellow, RH Reflector

520001600

$33.99

14

Yellow, LH Reflector

520001601

$33.99

15

Red, Lateral Reflector

705003412

$15.49

16

Tool Kit | Includes 16 To 22

529000066

$45.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Spacing Tool

520001142

$10.52

21

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

22

Wrench

34017

Unavailable

23

Tool Kit Rack

520000894

$14.99

24

Latch

520000528

$7.69

25

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

29

Cotter Pin

41031

$7.65

30

Plate

520000727

$36.99

31

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

32

Bolt Carriage M8 X 40

207784044

$1.15

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Cover | Model-T3

28056

$5.89

35

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable
