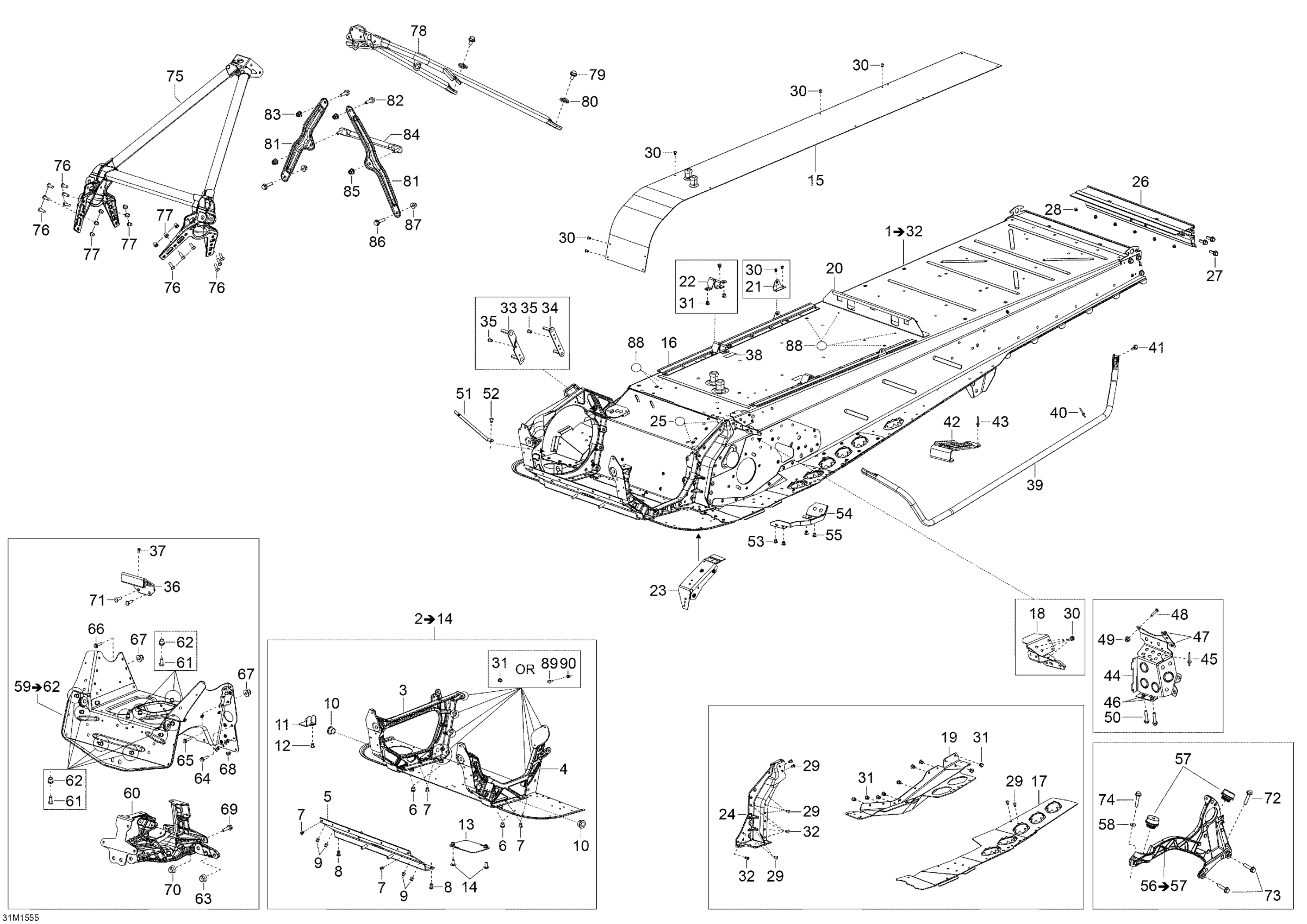

Ski-Doo Expedition SE 900 ACE, 2015 Frame _31M1555 Diagram

#

Description
Price

1

Frame | Includes 1 to 32

518328205

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 14

518328188

Unavailable

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler Support

518327983

$17.88

12

Rivet Hucklok

293150163

$2.73

13

Oil Plate | Not Shown

518328317

$10.39

14

Torx Truss Screw M6 X 12

250000767

$1.91

15

Tunnel Radiator | Includes 10p to 10q

509000976

$640.27

16

Fastening rail

518326107

$14.90

17

FOOTREST LH - Call your local BRP dealership

518326564

Unavailable

17

FOOTREST RH - Call your local BRP dealership

518326565

Unavailable

18

Fastening Bracket

605355235

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

21

Seat Box Bracket

518327457

$29.07

22

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

22

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

23

Clinch Nut plate

518326430

$44.75

24

LH Frame Corner

518325524

$50.72

24

RH Frame Corner

518328024

$50.72

25

Adhesive Patch

518325560

$4.21

26

Rear Profile

518328748

$211.16

27

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

28

Hemlock Rivet, 6.4 mm

293150174

$6.24

29

Avex Rivet

390909100

$0.28

30

Avex Rivet

390909200

$0.28

31

Hemlock Rivet, 6.5 mm

293150119

$3.88

32

Rivet

293150183

$2.00

33

Gearbox Front Plate

518326123

Unavailable

34

Gearbox Rear Plate

518326124

$14.81

35

Pop Rivet 3/16"

390402200

$0.30

36

Engine Support

518326178

$61.16

37

Hemlock Rivet, 6.4 mm

293150174

$6.24

38

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

39

LH Footboard Support Tube

518326963

$123.10

39

RH Footboard Support Tube

518326964

$123.10

40

Avex Rivet

390909100

$0.28

41

Hex. Flange Screw M6 x 20

207662056

$0.96

42

Black Rear Footrest

520001208

$17.88

43

Rivet 3/16"

293150102

$0.69

44

Toe hold L.H. | Package SE

518327375

Unavailable

44

Black RH Toe Hook

518327376

$38.78

45

Avex Rivet

390909200

$0.28

46

Clinch Nut M6 Hexsert

605636003

$4.00

47

Clinch Nut M6 Hexsert

605636003

$4.00

48

Hex. Flange Screw M6 x 20

207662056

$0.96

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

50

Torx Screw M6 X 16

250000223

$2.00

51

SPRING BRACKET - Call your local BRP dealership

514054828

Unavailable

52

Avex Rivet

390909200

$0.28

53

Avex Rivet

390909200

$0.28

54

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

55

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

56

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

57

Vibration Damper

512061516

$55.94

58

Conical Spring Washer M8

234281474

$1.43

59

Module S | Package SE

518328395

$549.22

60

Front Suspension Support

518327487

$259.67

61

Hex. Flange Screw M6 X 20

207662044

$1.91

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

63

Hex. Flange Elastic Nut M8

233281414

$1.31

64

Hexagonal Head Screw

210262050

$2.00

65

Hex. Flange Screw M6 X 25

207662544

$0.61

66

Hex. Flange Screw M6 X 25

207662544

$0.61

67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

68

Rivet Hucklok

293150163

$2.73

69

Hex. Flange Screw M6 X 20

207662044

$1.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

71

Hex. Flange Screw M6 X 16

207661644

$0.70

72

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

73

Hex. Flange Screw M8 X 35

250000986

$2.00

74

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

75

Front Member

518326975

$344.75

76

Hex. Flange Screw M6 X 20

207662044

$1.91

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

78

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

79

Hex. Flange Screw M6 x 20

207662056

$0.96

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Upper Column Support

518326848

$12.67

82

Hex. Flange Screw M6 x 20

207662056

$0.96

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

84

Center Column Support

518326355

$20.12

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

86

Hex. Flange Screw M6 X 25

207662556

$4.15

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

88

Adhesive Patch

518325560

$4.21

89

Hex. Flange Screw M6 X 20

207662044

$1.91

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
