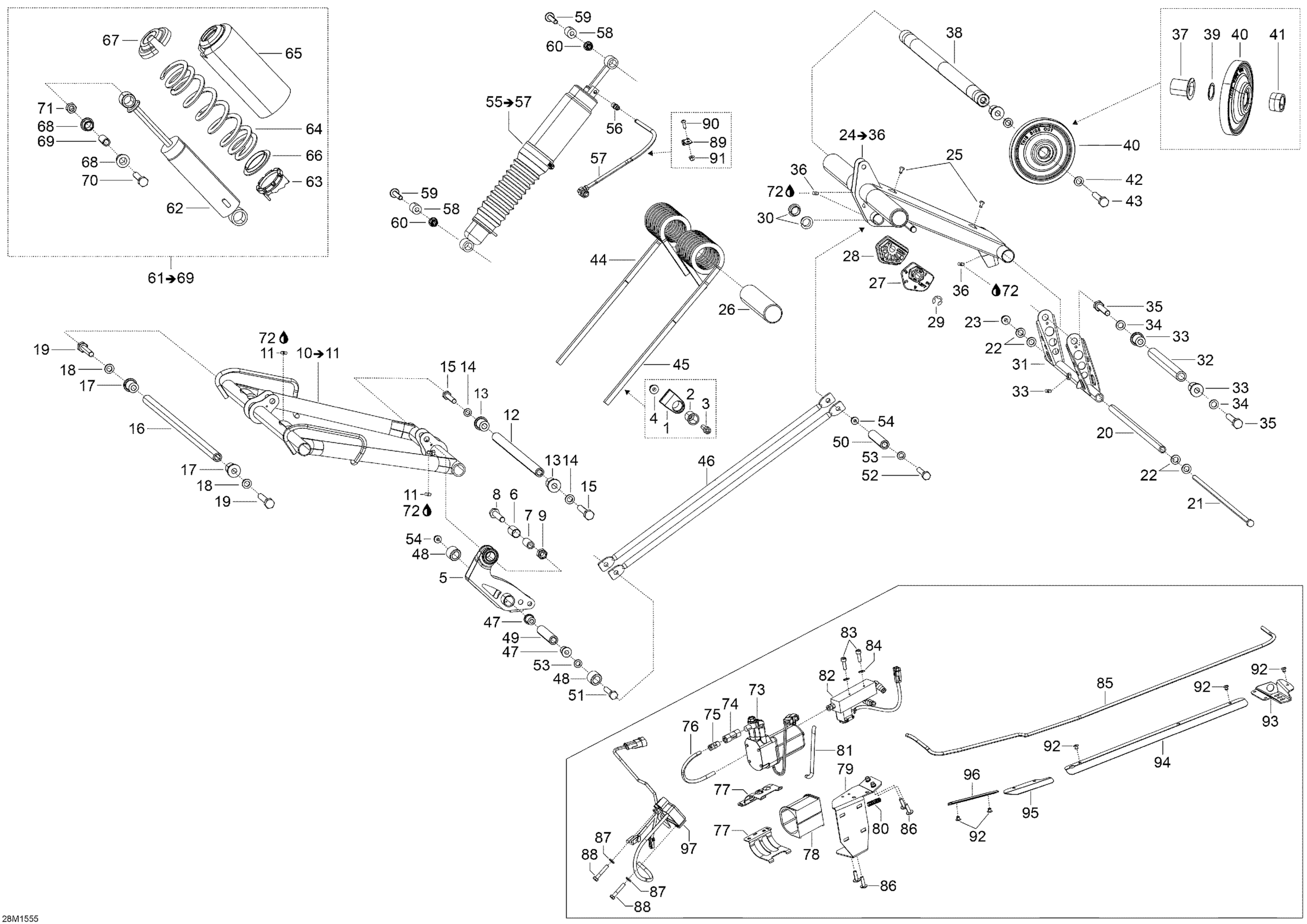

Ski-Doo Expedition SE 900 ACE, 2015 08- Rear Suspension B _28M1555 Diagram

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Rocker

503192211

$83.99

Bushing

503193037

$16.18

Bushing | Includes 240d to 240d1

503189282

$4.34

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

Grease Fitting

408200700

$3.49

Lower Shaft

503191390

$28.99

Bushing

503189324

$14.15

Washer

503192496

$0.77

Hex. Screw S.Grip M10 X 55

250000605

$8.11

Upper Shaft

503191391

$36.99

Bushing

503189324

$14.15

Washer

503189564

$0.74

Hex. Screw S.Grip M10 X 55

250000605

$8.11

Axle Pivot

503191396

$80.49

Bolt 369MM

503195156

$25.99

Washer

503189157

$3.28

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

Black, Dart

414644300

$0.98

Not Available As Spare Part - Friction Washer

Unavailable

LH Cam Adjuster

503191565

$16.49

RH Cam Adjuster

503191566

$16.49

E-Circlip

293370013

$0.65

Swivel Bushing

503191555

$7.83

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

Lower Shaft

503192330

$45.99

Cushion

503191640

$5.93

Washer | 7415/7416. 7417/7418.

503189148

$2.85

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

Grease Fitting

408200700

$3.49

Cushion

503191451

$14.15

Upper Shaft

503191405

$94.99

Washer

503190328

$12.65

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

Retaining Ring

503191099

$8.29

Washer

503192491

$4.54

Socket Screw M12 X 35

250000484

$7.51

Black RH Square Spring

503192377

$111.49

Black LH Square Spring

503192378

$111.49

Link Rod

503193026

$28.99

Swivel Bushing

503191555

$7.83

Spacer

503190114

$19.99

Bar Axle (Short)

503190113

$38.99

Axle Bar (Long)

503190643

$17.39

Hex. Screw M8 X 130

230083044

$7.41

Hex. Screw M8 X 90

207089044

$3.48

Washer

503189157

$3.28

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

Male Pneumatic Connector

503191939

$44.49

Pneumatic Hose Ass'y

503192649

$134.99

Bushing

414936000

$13.99

Hex. Flange Screw M8 X 40

207684044

$1.48

Hex. Flange Elastic Nut M8

233281414

$1.47

Not Available As Spare Part - Friction Washer

Unavailable

Center Shock

503192266

$164.49

Adjustment Cam

505073625

$12.99

Black, Spring

503189686

$67.99

Protector

503193663

$37.99

Spring Guide

503191872

$2.29

Spring Stopper

706200881

$12.99

Urethane Bushing

503189117

$8.19

Bushing | Includes 240d to 240d1

503189282

$4.34

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Not Available As Spare Part - Friction Washer

Unavailable

Compressor

706001349

$469.99

Check Valve

706000940

$37.99

Connector

706000869

$34.99

Hose 4.32Mm 3000Mm Long

219704415

$55.99

Compressor Bracket

503193103

$4.69

Compressor Isolator

706000631

$13.99

SUPPORT - Call your local BRP dealership

503193484

Unavailable

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Air manifold Ass'y

503193009

$339.99

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Flat Washer 6 mm

234061410

$1.36

Tube

503193034

$18.73

Torx Screw M6 X 20

250000722

$1.68

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Screw M6 X 35

207063544

$1.37

Clamp

503193393

$8.32

Torx Screw M5 X 14

235551494

$7.51

Flange Elastic Nut M5

233251434

$2.00

Rivet 3/16"

293150102

$0.70

BRACKET - Call your local BRP dealership

503193004

Unavailable

Hose Protector

503193006

$12.99

Hose Protector

503193007

$11.49

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

Compressor Module | With Air Suspension

515177125

$539.99
