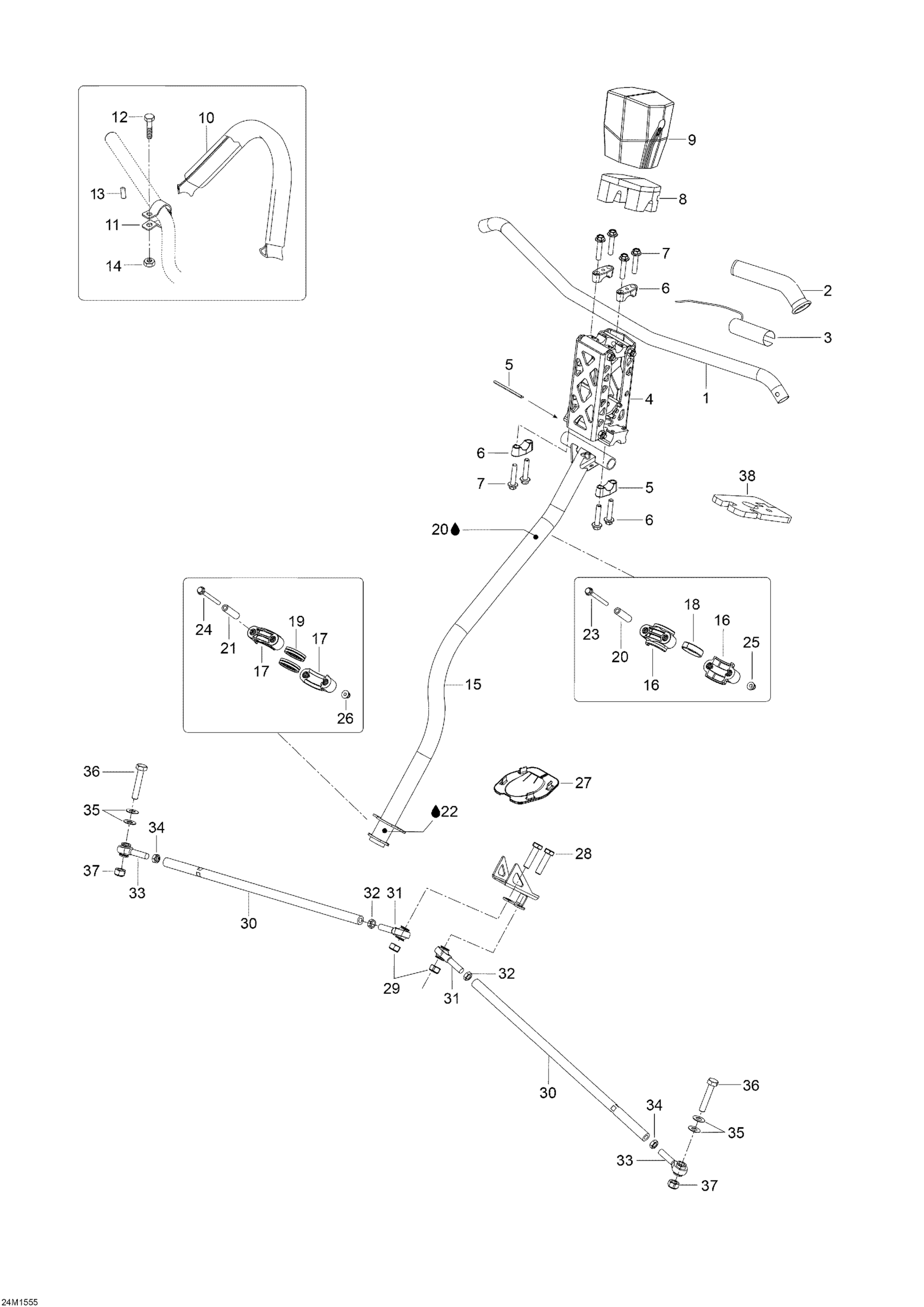

Ski-Doo Expedition SE 900 ACE, 2015 07- Steering _24M1555 Diagram

#

Description
Price

1

Handle Bar

506152722

$148.49

2

Grip | WAKE This part replaces M5340464.

506152483

$12.17

3

Heated Film, 25W

506152428

$39.99

4

Tilt Steering | Package SE

506152532

$275.49

5

Limiter Plate | Package SE

506152415

$88.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

7

Hex. Flange Screw M8 x 40

250000285

$0.82

8

Foam | Package SE

506152761

$39.99

9

Steering Cover | Package SE

506152381

$149.99

10

Strap Ass'y | Package XMR

506152115

$44.49

11

Black Support Plate

506152536

$9.19

12

Hex. Flange Screw M6 X 20

207662054

$1.01

13

Bushing | Package XMR

506152156

$5.61

14

Hex. Flange Elastic Nut M6

233261494

$1.58

15

Steering Column

506152964

$199.99

16

Upper Half-Housing

506152508

$9.23

17

Lower Half-Housing

506152217

$7.62

18

Upper Anti-Vibration Gasket

506152509

$4.79

19

Lower Vibration Ring

506152518

$4.79

20

Housing Bushing

506152297

$12.99

21

Housing Bushing

506152297

$12.99

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Hex. Flange Screw M6 X 70

207667056

$4.44

24

Hex. Flange Screw M6 X 70

207667056

$4.44

25

Elastic Flange Nut M6 X 1.0

233261416

$2.11

26

Elastic Flange Nut M6 X 1.0

233261416

$2.11

27

Plate

506152163

$12.99

28

Hex. Screw M10 X 40

207004044

$4.76

29

Elastic Stop Nut M10

232500416

$1.90

30

Tie-Rod

506152498

$38.99

31

LH Thread Ball Joint

506152081

$41.49

32

LH Threaded Hex. Jam Nut M10

250100016

$0.74

33

RH Threaded Ball Joint

506152019

$41.49

34

RH Threaded Hex. Jam Nut M10

732610010

$0.74

35

Washer

506152194

$4.55

36

Hex. Screw M10 X 55

207005544

$2.22

37

Elastic Stop Nut M10

232500416

$1.90

38

Cushion

506152404

$26.49
