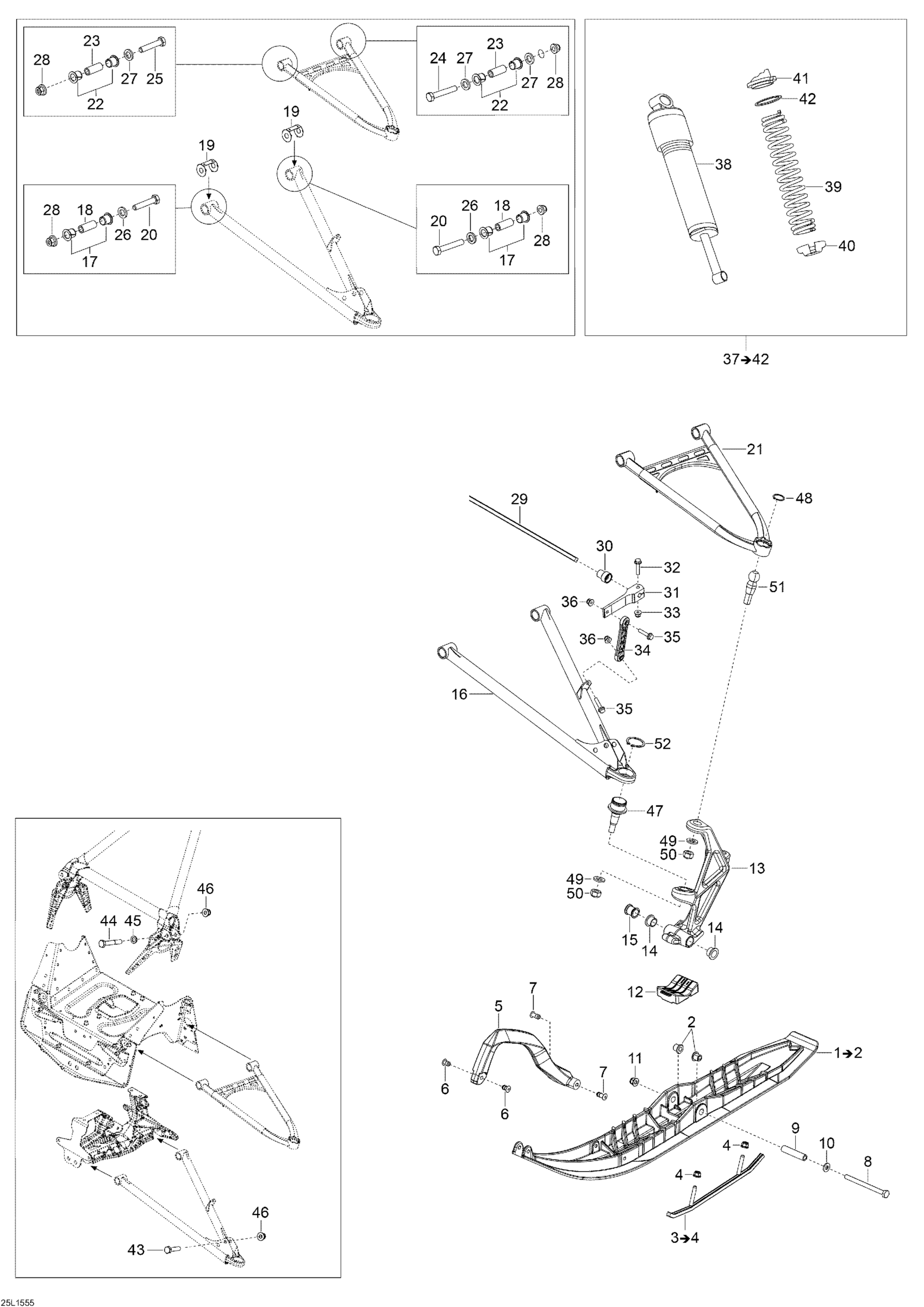

Ski-Doo Expedition SE 900 ACE, 2015 Front Suspension _25M1555 Diagram

#

Description
Price

1

Black, Ski

505073227

$175.35

2

Ski Bushing

505071781

$15.35

3

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Black, Handle

505072976

$35.35

6

Retainer 17mm long

505071812

$4.43

7

Retainer 23mm Long

505072133

$5.03

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Spacer

506133300

$19.97

10

Washer

732900049

$0.57

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505071779

$16.12

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$189.20

13

Clear RH Ski Leg

505073012

$233.05

14

Leg Bushing

505072690

Unavailable

15

Spacer

505071999

$12.69

16

Black, RH Lower Arm

505072497

$193.82

16

Black, LH Lower Arm

505072498

$193.82

17

Bushing

505073330

$7.40

18

Sleeve

505072209

$14.38

19

Wear Plate

505072634

$4.45

20

Screw Hex. M10 X 70

250001024

$1.74

21

LH Upper Arm 39"

505073468

$143.05

21

RH Upper Arm 39"

505073469

$143.05

22

Bushing

505073329

$7.40

23

Sleeve

505072143

$8.62

24

Screw Hex. M10 X 60

250001023

$1.74

25

Screw Hex. M10 X 50

250001022

$1.42

26

Washer

503189564

$0.72

27

Washer

505072392

$4.65

28

Hex. Flange Elastic Nut M10

250100165

$0.70

29

Stabilisator

505072602

$71.99

30

Bushing

505072064

$2.22

31

Stabilisator Lever

505072394

$16.12

32

Hex. Flange Screw M6 X 30

207663046

$1.42

33

Elastic Flange Nut M6 X 1.0

233261416

$1.74

34

Sway Bar Double Joint Link

505072204

$19.20

35

Hex. Flange Screw M6 X 30

207663046

$1.42

36

Elastic Flange Nut M6 X 1.0

233261416

$1.74

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Front Shock

505072517

$238.43

39

White Spring 300mm-18N/MM | Model Europe

505072879

$152.28

40

Spring Seat

230076

Unavailable

41

Adjustment Cam

505073625

$12.18

42

Spring Guide

503191872

$2.18

43

Hex. Screw M10 X 55

207005544

$1.85

44

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

45

Washer

503189564

$0.72

46

Hex. Flange Elastic Nut M10

233201414

$1.26

47

Ball Joint

505073636

$49.97

48

Circlip

293370070

$7.02

49

Flat Washer 12 mm

234021410

$0.68

50

Hex. Elastic Hex. Nut M12

250100089

$0.39

51

Upper Ball Joint

505072913

$69.97

52

Circlip

293370035

$2.55
