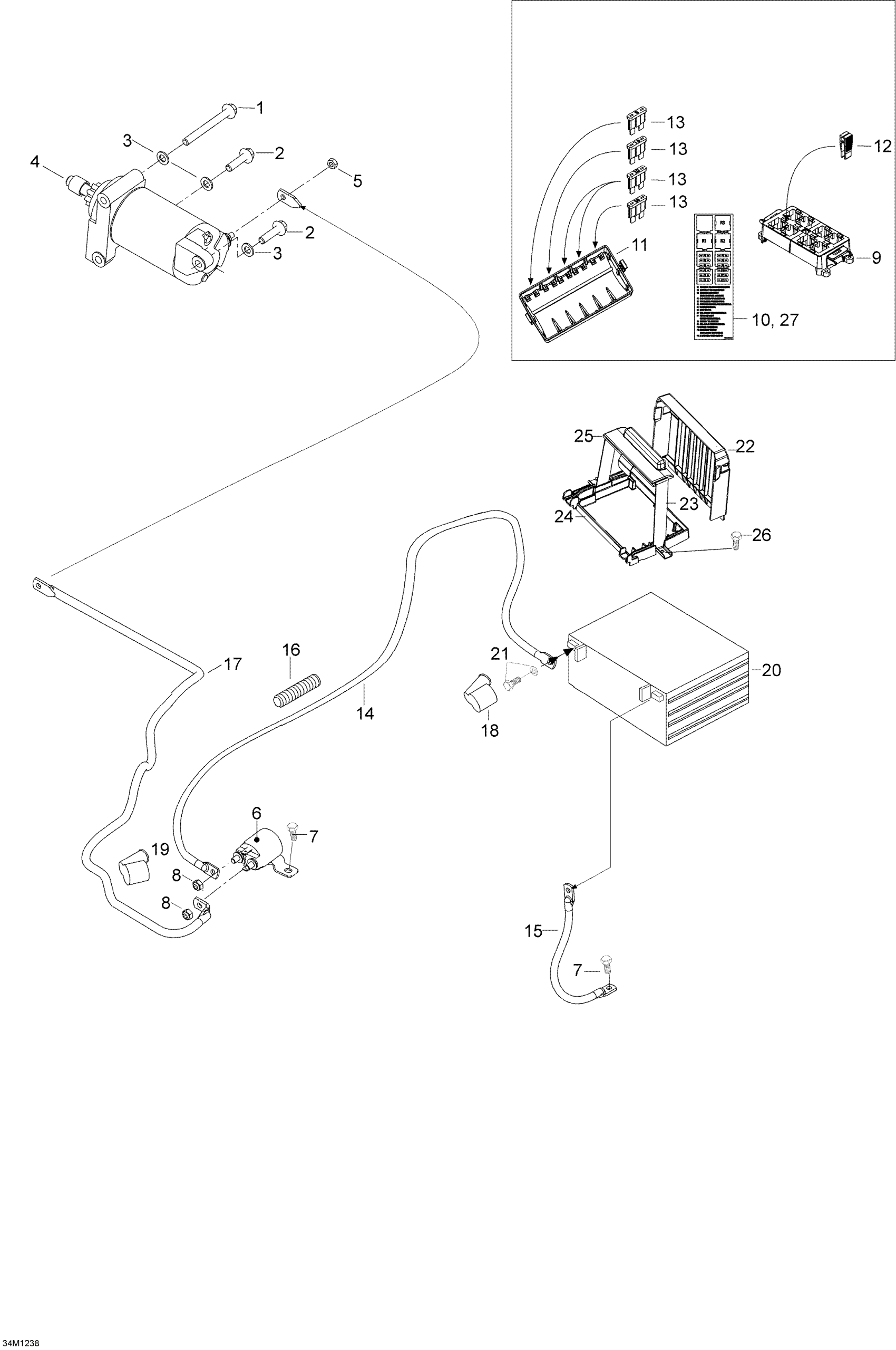

Ski-Doo Expedition SE 600HOETEC XU, 2012 Battery And Starter Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.49

2

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

3

Flat Washer With Teflon 8 mm

250200008

$3.89

4

Starter

515178473

$319.49

5

Elastic Stop Nut M6

232561414

$1.78

6

Starter Relay

515176011

$63.99

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Relay, 30 AMP

515176774

$21.99

11

Fuse Cover

710001026

$21.99

12

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

13

Fuse, 5 Amperes | CE

278000344

$3.39

13

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

13

Fuse, 20 Amperes

409003900

$3.39

13

Fuse, 30 Amperes

410917200

$3.39

13

Fuse 1 A

M42044

Unavailable

14

Battery Cable

515176805

$42.99

15

Ground Wire

515176780

Unavailable

16

HOUSING - Call your local BRP dealership

M28015

Unavailable

17

Start Cable

515176806

$38.99

18

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

19

Protection Cap

570151000

$21.99

20

Battery | Includes 900 to 900a

515176151

$209.95

21

Battery Bolt Kit

250000282

$7.49

22

Battery Cover

510005079

$19.49

23

Battery Strap | 30 ampere/hour

510005250

$84.99

24

Battery Support

515176804

$81.99

25

Strap Cover | 30 ampere/hour

605356094

$11.49

26

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

27

Relay, 50 AMP

515176775

$16.49
