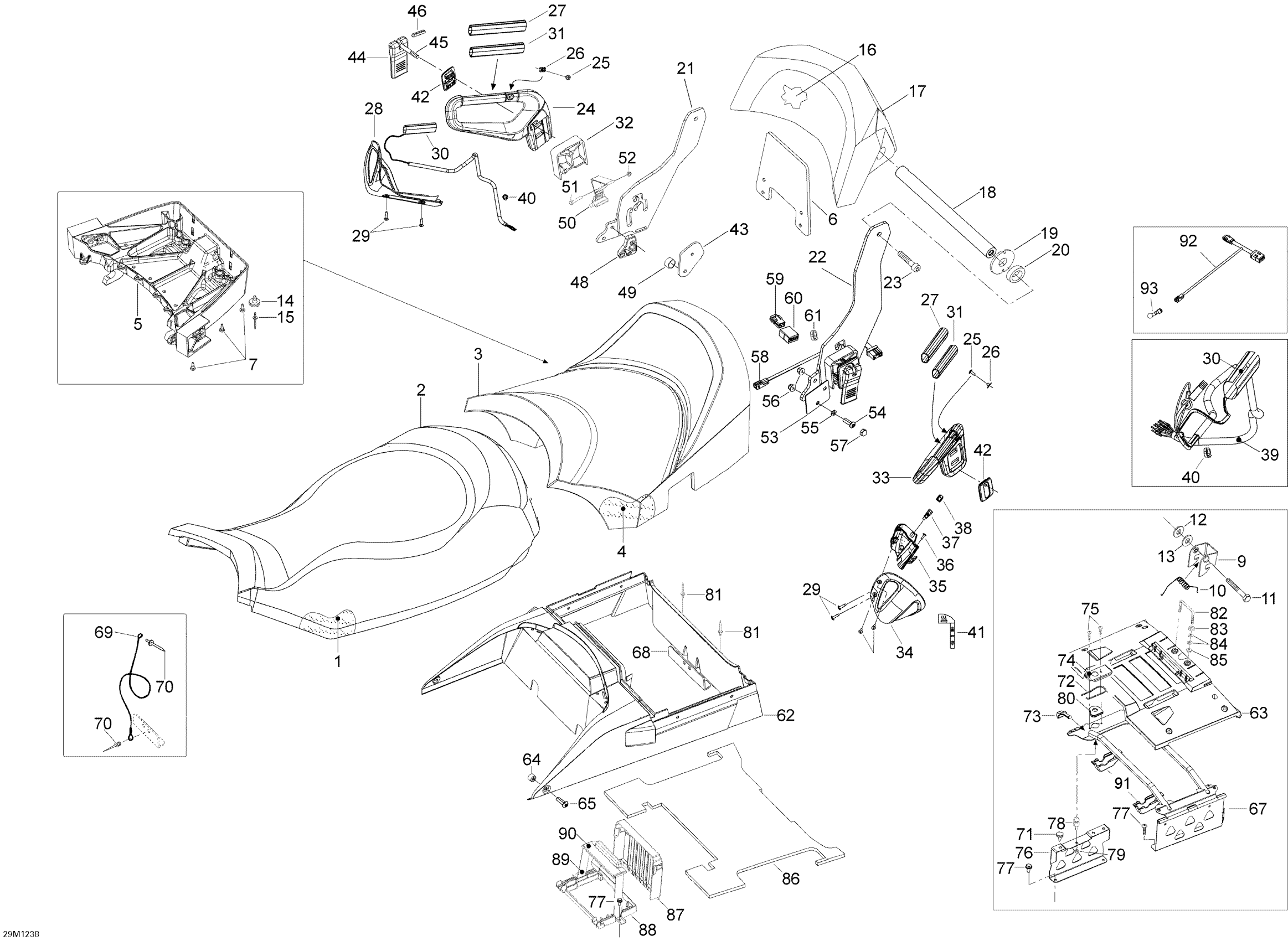

Ski-Doo Expedition SE 600HOETEC XU, 2012 Seat Diagram

Front Seat Foam | Model-550F

510005807

$459.99

Cover, front

510005722

$214.99

Rear Seat Cover XU

510005320

Unavailable

Rear Seat Foam | Model-550F

510005811

$419.99

Seat Base

510004816

$97.99

Backrest Plate

510005330

$71.99

Black, Dart

414644300

$1.49

Latch, Black

708000144

$12.49

Spring

708000369

$9.39

Hex. Screw M6 X 80

207068044

$4.19

Push Nut

732610072

$2.29

Flat Washer 6 mm

234061410

$1.49

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

Pop Rivet 1/8”

293150015

$1.49

FOAM BACKREST - Call your local BRP dealership

510005833

Unavailable

Backrest Cover

510005259

$239.99

Not Available As Spare Part - Friction Washer

Unavailable

LIMITER PLATE - Call your local BRP dealership

510005312

Unavailable

Rubber Shim

510004378

$11.49

RH ARM - Call your local BRP dealership

510004988

Unavailable

LH ARM - Call your local BRP dealership

510004989

Unavailable

Socket Screw BN.HD.ISO.7380

205402546

$4.49

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

Torx Truss Screw M6 X 16

250000721

$1.69

Nut Welded, M6

293100003

$9.29

Handle Grip

510004449

$12.99

RH Deflector

510004415

$28.99

Screw 25MM

250000961

$2.69

Heater

515176393

$64.99

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

Adapter

510004939

$18.49

LH Handle

510005862

$129.99

LH Deflector

510004416

$28.99

Switch Housing

510004566

$12.99

Torx Screw K50 X 16

250000720

$1.69

Rocker Switch

510004413

$8.99

Switch Protector

510004414

$7.99

LH Handle Harness

515176241

$31.99

Tie-Rap 180 mm

414115200

$1.49

Handle Heater Decal

516002835

$13.99

Passenger Handle Trim

510006602

$13.99

Counter Plate

510004990

$32.99

Lock Ass'y | Includes 54 to 57

510004992

$37.99

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

ADAPTER - Call your local BRP dealership

510005151

Unavailable

SLEEVE - Call your local BRP dealership

510005042

Unavailable

Security Lock

510005139

$59.99

Socket Screw HD.DIN.912

205064044

$2.19

Elastic Stop Nut M6

232561434

$1.99

COVER PLATE - Call your local BRP dealership

510004995

$12.49

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Flat Washer 8 mm

234081410

$1.49

Hex. Flange Elastic Nut M8

233281414

$1.49

Cover | Model-T3

28056

$5.99

Seat Wiring Harness This part replaces 515177209.

515179606

$104.99

Male Housing, 3 Circuits

515175494

$16.49

Male Terminal Housing, 8 Circuits

515175817

$8.99

Tie-Rap 180 mm

414115200

$1.49

Storage Box

510006243

$239.99

Storage Box Cover

510006244

$39.99

Bushing

510005147

$13.49

Torx Screw M6 X 12

250000454

$4.49

Lock tube

510005714

$439.99

Cable Support Plate

510005156

$19.49

Seat Retainer Cable

293750070

$13.49

Pop Rivet 3/16"

390402200

$1.49

Plug

605452114

$9.39

Latch Spring

269700017

$9.39

Puller

510005072

$21.99

Lock Pin Cover

510005698

$21.99

Forming Screw M5 x 16

250000676

$1.49

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

Elastic Flange Nut M6 X 1.0

233261416

$2.19

Lock Pin Guide

510005044

$16.49

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

Hex. Nut M6

250000135

$1.49

Washer

20117

$6.49

Elastic Stop Nut M6

232561434

$1.99

Foam

510005043

$71.99

Battery Cover

510005079

$19.49

Battery Support

515176804

$81.99

Battery Strap | 30 ampere/hour

510005250

$84.99

Strap Cover | 30 ampere/hour

605356094

$11.49

Cover

510004999

$18.99

Seat Wiring Harness This part replaces 515177210.

515179607

$104.99

Cap

572103300

$10.99
