Description

Price

1

Rear Light Support

511000559

$63.99

2

Rear Light Cover

511000764

$38.99

3

Black, Rear Bumper | Package SE

511000709

$174.99

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

Unavailable

6

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

7

Flat Washer 6 mm

234062410

$0.77

8

Cable Support Plate

510005156

$19.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Storage Box

510006243

$234.99

11

Storage Box Cover

510006244

$38.99

12

Bushing

510005147

$12.99

13

Torx Screw M6 X 12

250000454

$4.44

14

Cover

510004999

$18.99

15

Lock tube

510005714

$429.99

16

Pop Rivet 3/16"

390402200

$0.35

17

Bushing

510005147

$12.99

18

Latch Ass'y

269700109

$24.99

19

Puller

510005072

$21.99

20

Lock Pin Cover

510005698

$20.49

21

Forming Screw M5 x 16

250000676

$1.01

22

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

24

LOCK PIN - Call your local BRP dealership

605452035

$24.99

25

Elastic Flange Nut M6 X 1.0

233261416

$2.11

26

Lock Pin Guide

510005044

$15.80

27

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

28

Hex. Nut M6

250000135

$0.51

29

Washer

20117

$6.39

30

Elastic Stop Nut M6

232561434

$1.99

31

Seat Retainer Cable

293750070

$12.99

32

Pop Rivet 3/16"

390402200

$0.35

33

Foam

510005043

$69.99

34

Cargo Box Ass'y | Includes 10 to 10,015

619560023

Unavailable

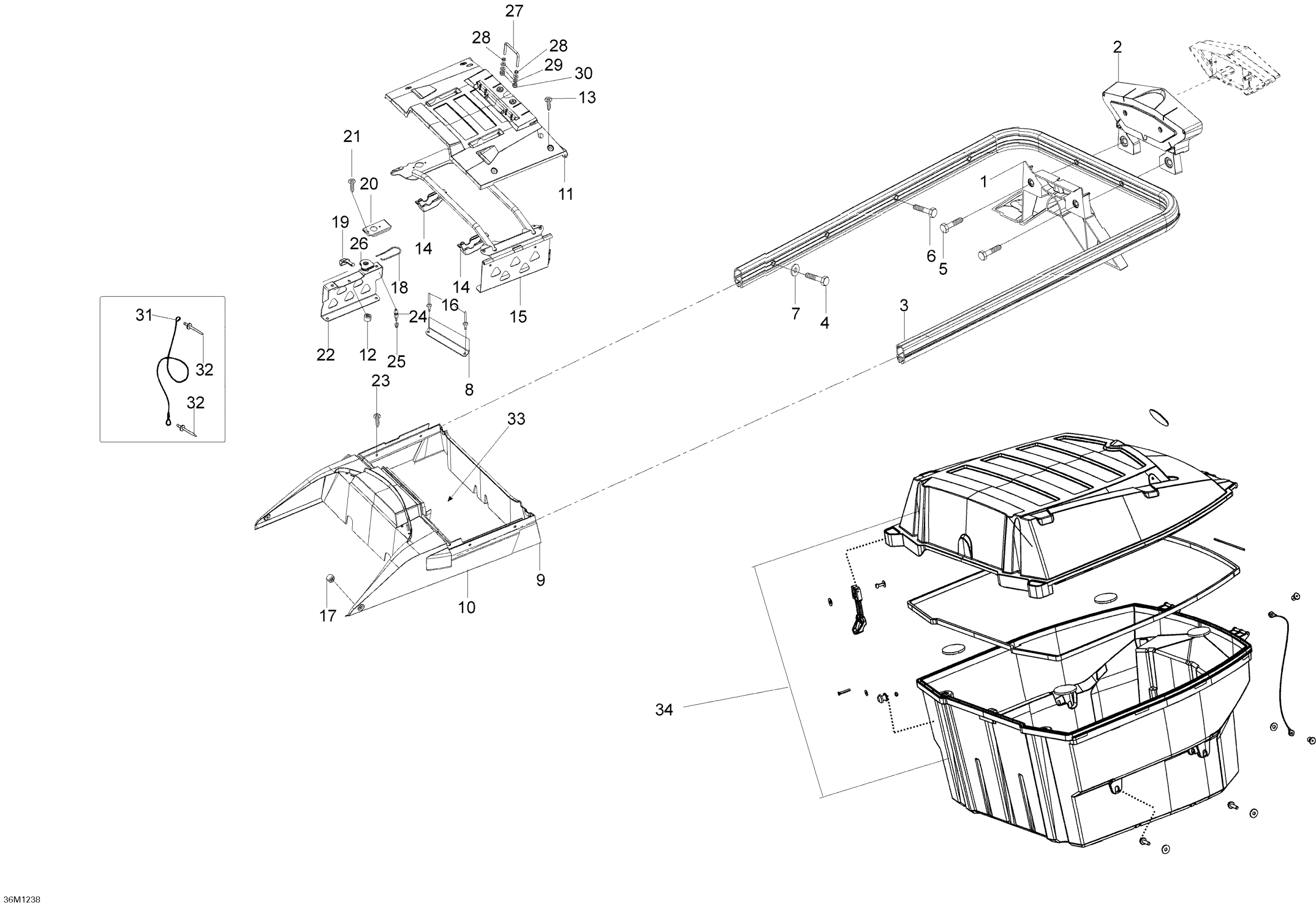

Ski-Doo Expedition SE 600HOETEC XU, 2012 09- Luggage Rack Diagram

Rear Light Support

Rear Light Cover

Black, Rear Bumper | Package SE

Hex. Flange Screw M6 X 16, Scotch Grip

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

Socket Head Screw M6 X 20, Scotch Grip

Flat Washer 6 mm

Cable Support Plate

Not Available As Spare Part - Friction Washer

Storage Box

Storage Box Cover

Bushing

Torx Screw M6 X 12

Cover

Lock tube

Pop Rivet 3/16"

Bushing

Latch Ass'y

Puller

Lock Pin Cover

Forming Screw M5 x 16

LOCKING PLATE (FRAME) - Call your local BRP dealership

Hex. Flange Screw M6 X 16, Scotch Grip

LOCK PIN - Call your local BRP dealership

Elastic Flange Nut M6 X 1.0

Lock Pin Guide

FASTENER PIN - Call your local BRP dealership

Hex. Nut M6

Washer

Elastic Stop Nut M6

Seat Retainer Cable

Pop Rivet 3/16"

Foam

Cargo Box Ass'y | Includes 10 to 10,015
