Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$239.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$209.99

4

Bushing

417223086

$36.99

6

Circlip

293370037

$3.29

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$15.49

13

Cotter Pin

250400060

$2.09

14

Lever Axle

417223164

$4.59

15

Spring Seat

417222312

$9.79

16

Tra Spring

414993000

$57.99

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.99

18

Bushing

417009204

$17.49

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.89

21

Lock Washer 8 mm

250200009

$2.19

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223441

Unavailable

23

Ramp 600

417222444

$36.99

24

Spring Pin M10 X 22

250400050

$3.09

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.19

26

Calibration Screw

417223501

$14.49

27

Flat Washer 6 mm

234061410

$1.49

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

29

O-Ring

732401030

$1.49

30

Slider Shoe This part replaces 420460045.

417223021

$5.99

31

Washer

417005600

$4.19

34

Serrated Hex. Flange Bolt M6

250000416

$4.29

36

Spring Washer 14 mm

250200006

$7.19

37

Drive Pulley Bolt

417120000

$66.99

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$459.99

40

Roller

417127189

$43.25

41

Pivot Stud

417127259

$21.99

42

Lock Washer 8 mm

250200009

$2.19

43

Circlip

414753500

$1.49

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

44b

Circlip

293370049

$5.09

45

Cam Ass'y

417127411

$164.99

46

Circlip

293370049

$5.09

47

Spring, White

417127243

$44.99

48

Torx Screw M8 X 25, Scotch Grip

250000283

$6.39

49

Calibration Ass'y

415129604

$22.49

50

Socket Screw M5 X 25

205052544

$1.69

51

Flat Washer M5

234051410

$1.49

52

Elastic Stop Nut M5

232551414

$1.49

53

Washer

417127155

$8.39

55

Ball Bearing

504152574

$35.99

57

Drive Belt

417300551

$179.99

58

Belt Guard

417300382

$92.99

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$7.49

61

Avex Rivet

390909200

$1.49

62

Guide

417300381

$11.99

63

Side Protector

417300356

$14.99

64

Pop Rivet 3/16"

293150103

$1.49

65

Belt Guard Bracket

417300364

$31.99

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

67

Belt Guard Bracket | Except Package SWT

417300363

$14.99

68

Hair Pin

114045200

$11.49

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

71

Protective Rubber

504153054

$17.49

72

PROTECTIVE RING - Call your local BRP dealership

504153034

Unavailable

73a

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

73b

Warning Decal | Europe

516003919

$8.29

74

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

75

Ring Gear_Starter This part replaces 417223738.

417225070

$216.39

76

Torx Screw M8 X 16

250000751

$6.29

77

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

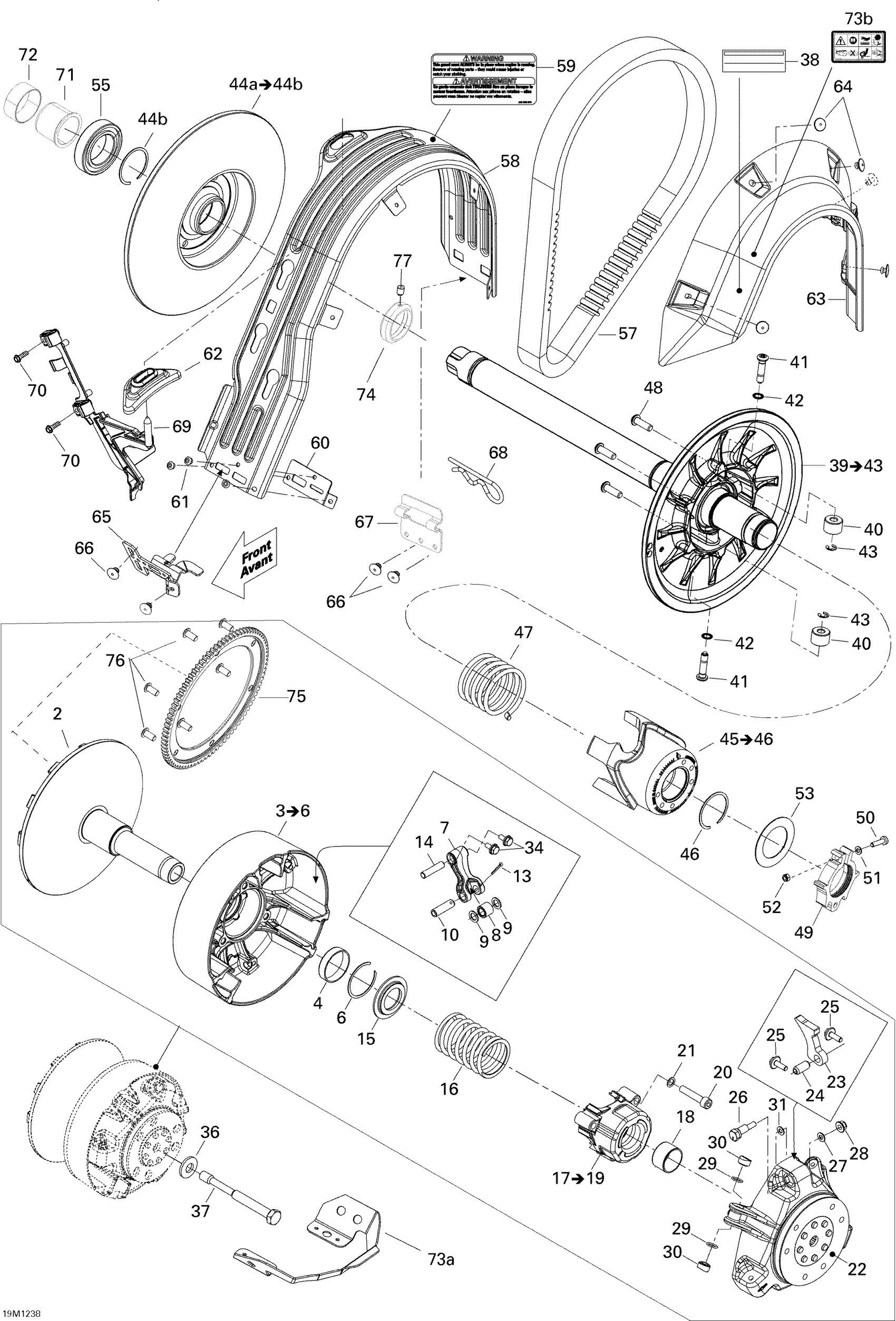

Ski-Doo Expedition SE 600HOETEC XU, 2012 Pulley System Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 10b to 10e

Bushing

Circlip

Lever | Includes 10f to 10g

Roller

Stopper Washer

Pin

Cotter Pin

Lever Axle

Spring Seat

Tra Spring

Spring Cover Ass'y | Includes 10r to 10t

Bushing

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

GOVERNOR CUP ASS'Y - Call your local BRP dealership

Ramp 600

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Flat Washer 6 mm

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Slider Shoe This part replaces 420460045.

Washer

Serrated Hex. Flange Bolt M6

Spring Washer 14 mm

Drive Pulley Bolt

DECAL - Call your local BRP dealership

Fixed Flange Ass'y | Inclus 38 à 44

Roller

Pivot Stud

Lock Washer 8 mm

Circlip

Sliding Flange Ass'y | Includes 100b to 100b3

Circlip

Cam Ass'y

Circlip

Spring, White

Torx Screw M8 X 25, Scotch Grip

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Security label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket

Pop Rivet 3/16" | DS 650 X

Belt Guard Bracket | Except Package SWT

Hair Pin

BELT GUARD BRACKET - Call your local BRP dealership

Hex. Flange Screw K50 X 2.24 X 16

Protective Rubber

PROTECTIVE RING - Call your local BRP dealership

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

Warning Decal | Europe

RETAINER RING - Call your local BRP dealership

Ring Gear_Starter This part replaces 417223738.

Torx Screw M8 X 16

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership
