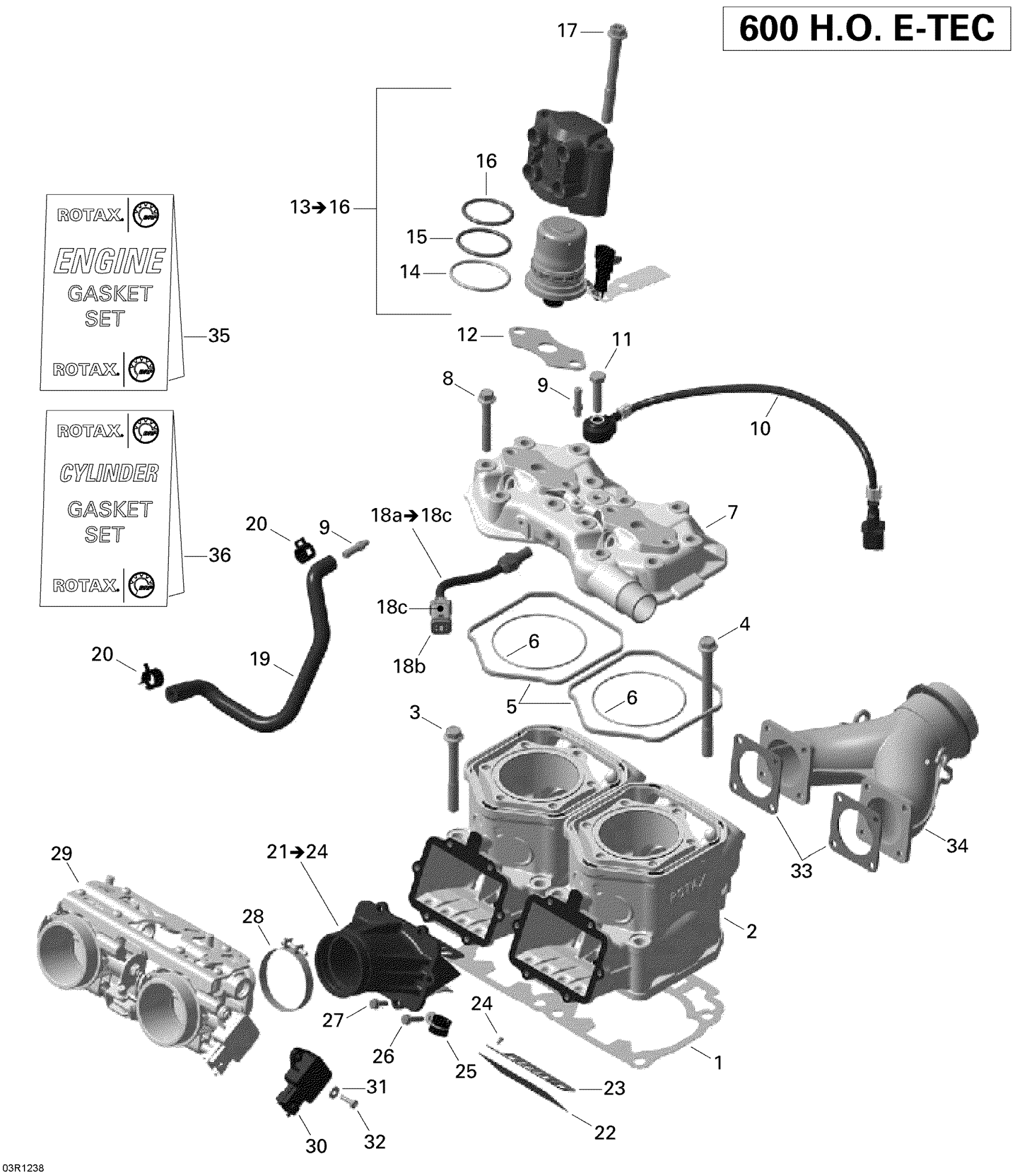

Ski-Doo Expedition SE 600HOETEC XU, 2012 Cylinder and Cylinder Head Diagram

Gasket 0.5 mm

420431160

$16.99

Gasket 0.6 mm

420431161

$24.49

Gasket 0.7 mm

420431162

$24.49

Double Gasket 0.8 mm

420431163

$24.49

Cylinder

420623263

$469.99

Cylinder

420623263

$469.99

Hex. Collar Screw

420640524

$13.49

Hex. Collar Screw

420640534

$14.49

Rubber Ring

420931590

$6.19

O-Ring This part replaces 420850540.

293300026

$3.39

HEAD CYLINDER COVER - Call your local BRP dealership This part replaces 420623294.

420623296

Unavailable

Hex. Screw M8 X 56.5

420941627

$8.79

Hose Nipple

420924724

$15.49

Noise Sensor

270000484

$84.99

Hex. Screw M8 X 35

207083544

$1.49

Gasket

420430930

$4.99

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

Crush Ring

415129497

$7.99

O-Ring

415129498

$13.49

O-Ring

415129499

$7.39

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

Temperature Sensor This part replaces 420664508.

420664509

$154.99

Female Terminal Housing, 2 Circuits

515175670

$8.59

Female Terminal

278000632

$2.19

Molded Hose

420460867

$19.99

Clamp

420853511

$7.69

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$239.99

Reed Pedal

420924680

$39.99

Reed Pedal Stop

420924695

$15.49

Phillips Screw M3 X 5

420941215

$1.69

Clamp

420851250

$10.99

Tapping Screw M5 X 22

420841550

$1.69

Taptite Screw M5 X 16

420941928

Unavailable

Clamp

420851065

$14.49

Throttle Body

420892135

Unavailable

Position Sensor

420866120

$99.99

Flat Washer 4 mm, Stainless

234041600

$1.49

Phillips Screw M4 X 16

208641660

$1.49

Gasket

420850552

$9.09

Exhaust Manifold This part replaces 420673420.

420673421

$294.99

Gasket Set, Engine

420889924

$194.99

Gasket Set, Cylinder

420889928

$169.99
