Description

Price

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1,029.99

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1,029.99

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.99

5

Lock Washer, 22 mm

420945759

$1.99

6

Hex. Nut, M22 X 1.5

420842239

$16.99

7

Ball Bearing | With drive pin

420832602

$94.00

8

Washer

420926190

$11.99

9

Ball Bearing | With drive pin

420832702

$89.99

10

Oil Seal | Included in gasket kit

420931284

$24.49

11

Woodruff Key

420246015

$3.29

12

Needle Bearing

420832445

$27.49

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$234.99

14

Semi-Trapez Ring

420815295

$65.99

15

Piston Pin

420916412

$31.99

16

Piston Circlip

420845106

$3.89

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$36.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, PTO Side

420890958

$319.99

22

Rod Repair Kit, MAG Side

420890959

$319.99

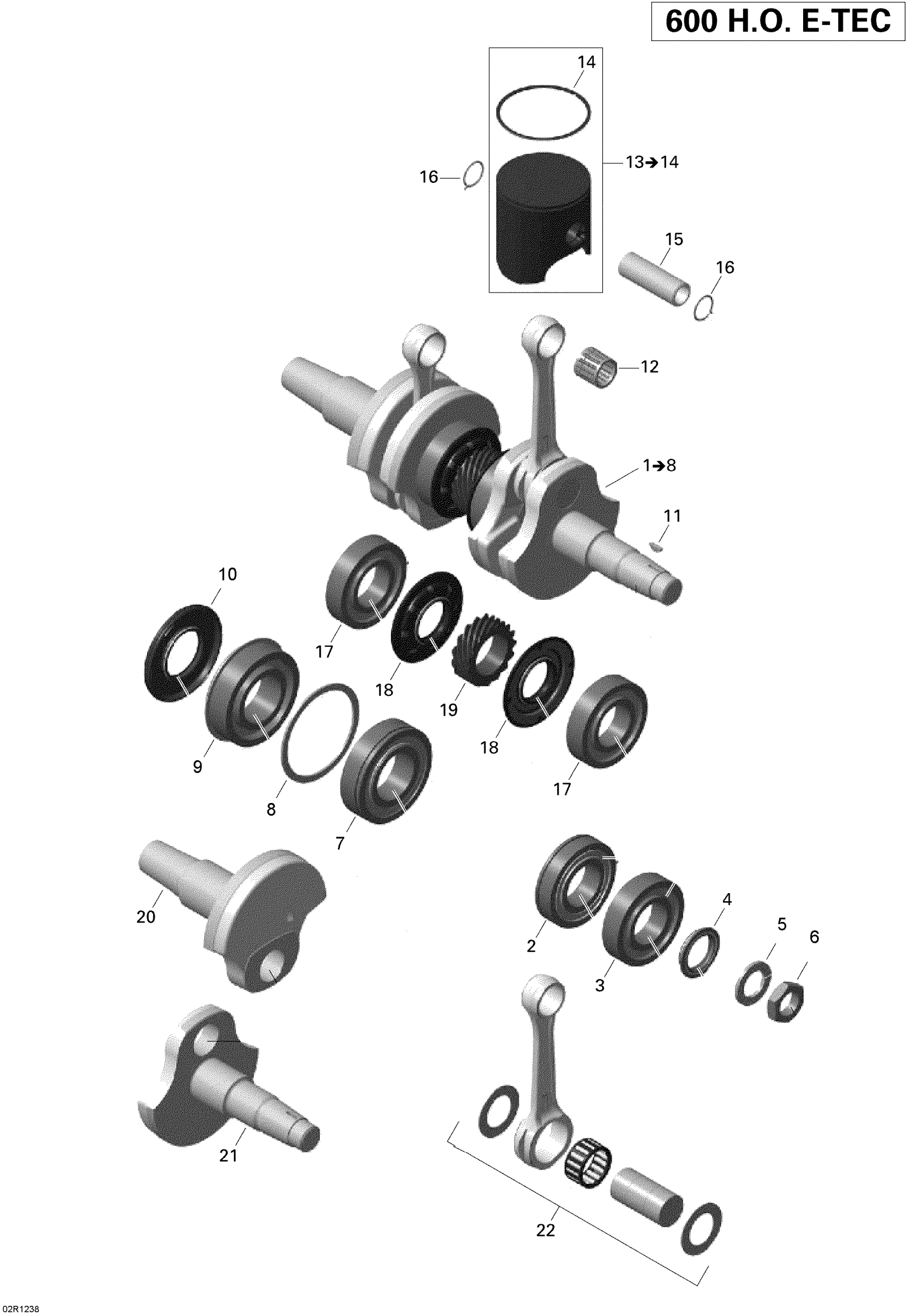

Ski-Doo Expedition SE 600HOETEC XU, 2012 Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes 1 to 8

Crankshaft Ass'y | Includes 1 to 8

Ball Bearing Sealed, 6207

Ball Bearing 6207 | With drive pin

Oil Seal

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Ball Bearing | With drive pin

Washer

Ball Bearing | With drive pin

Oil Seal | Included in gasket kit

Woodruff Key

Needle Bearing

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

Semi-Trapez Ring

Piston Pin

Piston Circlip

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Rod Repair Kit, PTO Side

Rod Repair Kit, MAG Side
