Description

Price

1

Engine Outlet Hose

509000595

$16.99

2

Aba Gear Clamp, 26-38 MM

509000443

$12.49

3

Aba Gear Clamp, 26-38 MM

509000443

$12.49

4

Bypass Hose

509000523

$63.99

5

Aba Gear Clamp, 26-38 MM

509000443

$12.49

6

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

7

Thermostat Housing

509000499

$43.99

8

Hose Radiator

509000737

$164.99

9

Not Available As Spare Part - Friction Washer

Unavailable

11

Air Radiator Hose

509000588

$63.99

12

Return Radiator Hose

509000589

$43.99

13

Aba Gear Clamp, 26-38 MM

509000443

$12.49

14

T-Fitting

509000372

$10.99

15

Engine Inlet Hose This part replaces 509000675.

509001067

$16.99

16

Filling Hose

509000736

$36.99

17

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

18

Hose 6 Mm 15000Mm Long

219704360

$134.99

19

Tridon Gear Clamp

293650170

$2.00

20

Crimp Clamp, 15.3-706R

293650047

$3.39

21

Coolant Tank

509000368

$94.99

22

Reservoir support

509000852

$69.99

23

Support

509000609

$24.49

24

Torx Screw K50 X 16

250000720

$1.69

25

Rivet

36005

$2.19

26

Support

509000609

$24.49

27

Knob

517303439

$4.69

28

Torx Screw K50 X 16

250000720

$1.69

30

Hose 5.2 mm

509000599

Unavailable

31

Pressure Cap

509000187

$31.99

32

Hex. Flange Screw M6 X 20

210262040

$2.19

34

Fan

509000837

$204.99

35

Crimp Clamp

293650099

$4.39

36

Velcro Strip

508000820

$8.79

37

Bumper

508000572

$7.69

38

Radiator

509000756

$184.99

39

Cooling Fan Shroud

509001173

$26.99

40

Foam

509000615

$27.99

41

Deflector

509001174

$21.99

42

Rubber Bumper

570044700

$13.49

43

Clip

710000992

$4.39

44

Hex. Flange Screw M6 X 12

207661244

$2.19

45

Screw plate

509000614

$24.99

46

Hex. Flange Screw M6 X 20

210262040

$2.19

47

Formed Hose

509000792

Unavailable

48

Crimp Clamp

293650053

$3.19

49

Radiator

509000975

$849.99

50

Crimp Clamp, 15.3-706R

293650047

$3.39

51

Hose

509001070

$13.49

52

Y-Fitting

293710140

$8.29

53

Oetiker Gear Clamp

293650025

$3.19

54

Warning Decal | Europe

516003923

Unavailable

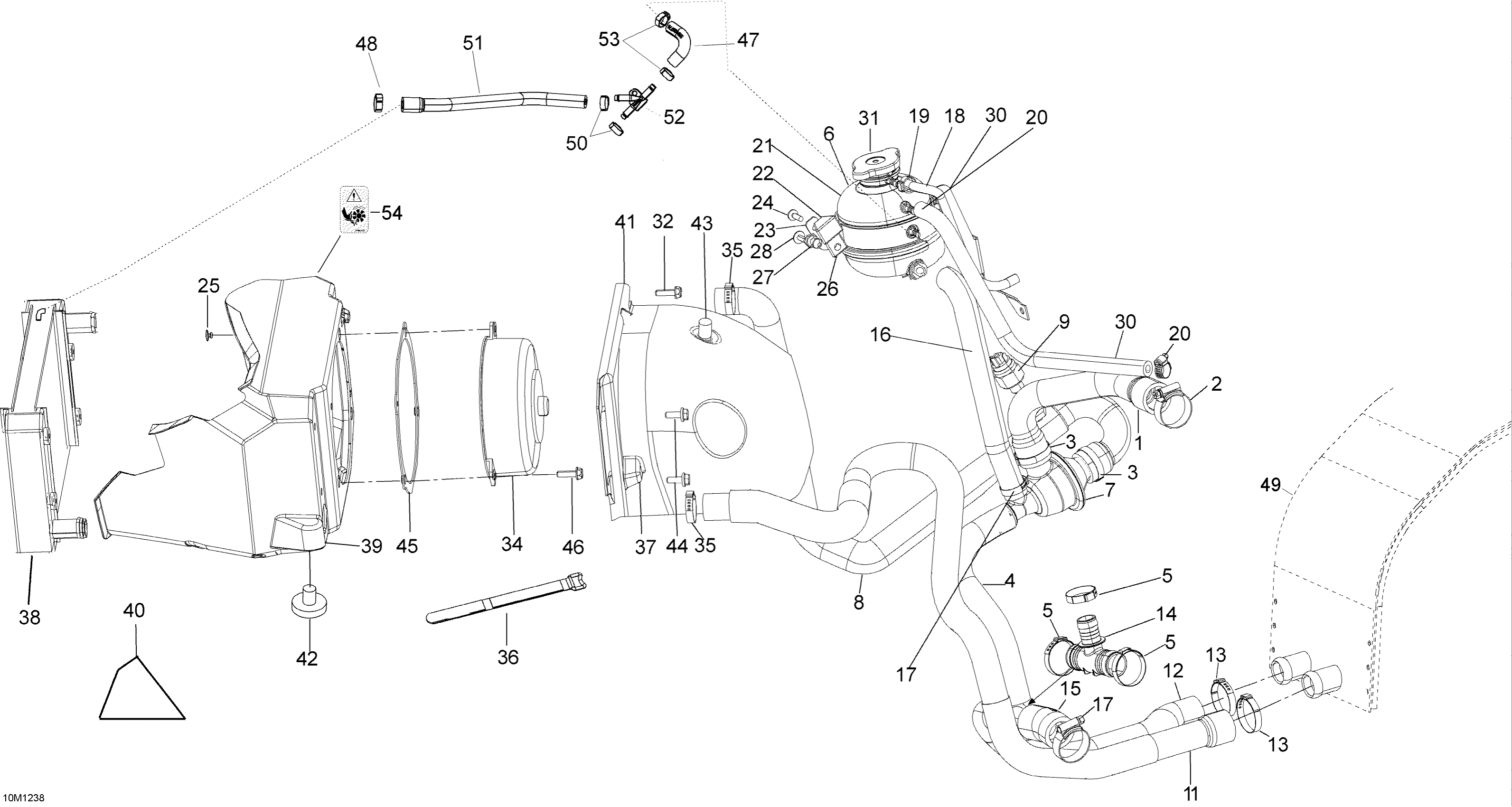

Ski-Doo Expedition SE 600HOETEC XU, 2012 Cooling System Diagram

Engine Outlet Hose

Aba Gear Clamp, 26-38 MM

Aba Gear Clamp, 26-38 MM

Bypass Hose

Aba Gear Clamp, 26-38 MM

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

Thermostat Housing

Hose Radiator

Not Available As Spare Part - Friction Washer

Air Radiator Hose

Return Radiator Hose

Aba Gear Clamp, 26-38 MM

T-Fitting

Engine Inlet Hose This part replaces 509000675.

Filling Hose

Oeticker Gear Clamp, 25.6-706R

Hose 6 Mm 15000Mm Long

Tridon Gear Clamp

Crimp Clamp, 15.3-706R

Coolant Tank

Reservoir support

Support

Torx Screw K50 X 16

Rivet

Support

Knob

Torx Screw K50 X 16

Hose 5.2 mm

Pressure Cap

Hex. Flange Screw M6 X 20

Fan

Crimp Clamp

Velcro Strip

Bumper

Radiator

Cooling Fan Shroud

Foam

Deflector

Rubber Bumper

Clip

Hex. Flange Screw M6 X 12

Screw plate

Hex. Flange Screw M6 X 20

Formed Hose

Crimp Clamp

Radiator

Crimp Clamp, 15.3-706R

Hose

Y-Fitting

Oetiker Gear Clamp

Warning Decal | Europe
