Description

Price

1

Rear Light Support

511000559

$64.99

2

Rear Light Cover

511000764

$39.99

3

Black, Rear Bumper | WT

511000563

$134.99

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

5

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

Unavailable

6

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.19

7

Flat Washer 6 mm

234062410

$1.49

8

Cable Support Plate

510005156

$19.49

9

Storage Box Ass'y

510004873

Unavailable

10

Storage Box

510006243

$239.99

11

Storage Box Cover

510006244

$39.99

12

Bushing

510005147

$13.49

13

Torx Screw M6 X 12

250000454

$4.49

14

Cover

510004999

$18.99

15

Lock tube

510005714

$439.99

16

Pop Rivet 3/16"

390402200

$1.49

17

Bushing

510005147

$13.49

18

Latch Ass'y

269700109

$25.99

19

Puller

510005072

$21.99

20

Lock Pin Cover

510005698

$21.99

21

Forming Screw M5 x 16

250000676

$1.49

22

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

24

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

25

Elastic Flange Nut M6 X 1.0

233261416

$2.19

26

Lock Pin Guide

510005044

$16.49

27

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

28

Hex. Nut M6

250000135

$1.49

29

Washer

20117

$6.49

30

Elastic Stop Nut M6

232561434

$1.99

31

Seat Retainer Cable

293750070

$13.49

32

Pop Rivet 3/16"

390402200

$1.49

33

Foam

510005043

$71.99

34

Cargo Box Ass'y | Model-SE

860200395

$359.99

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Seat Retainer Cable

293750070

$13.49

37

Pin

511000702

$25.99

38

Foam

510005273

$54.99

39

Flat Washer 6 mm

234062410

$1.49

40

BRP Logo 48 mm

219903305

$19.99

41

Washer M5

250200025

$1.49

42

Black, Rivet

M36036

$1.69

43

Counter Roller

605449087

$4.19

44

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.19

45

Washer

20037

$2.19

46

Black Rivet

36037

$1.49

47

Latch-Panel

517304572

$12.49

48

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

49

Not Available As Spare Part - Friction Washer

Unavailable

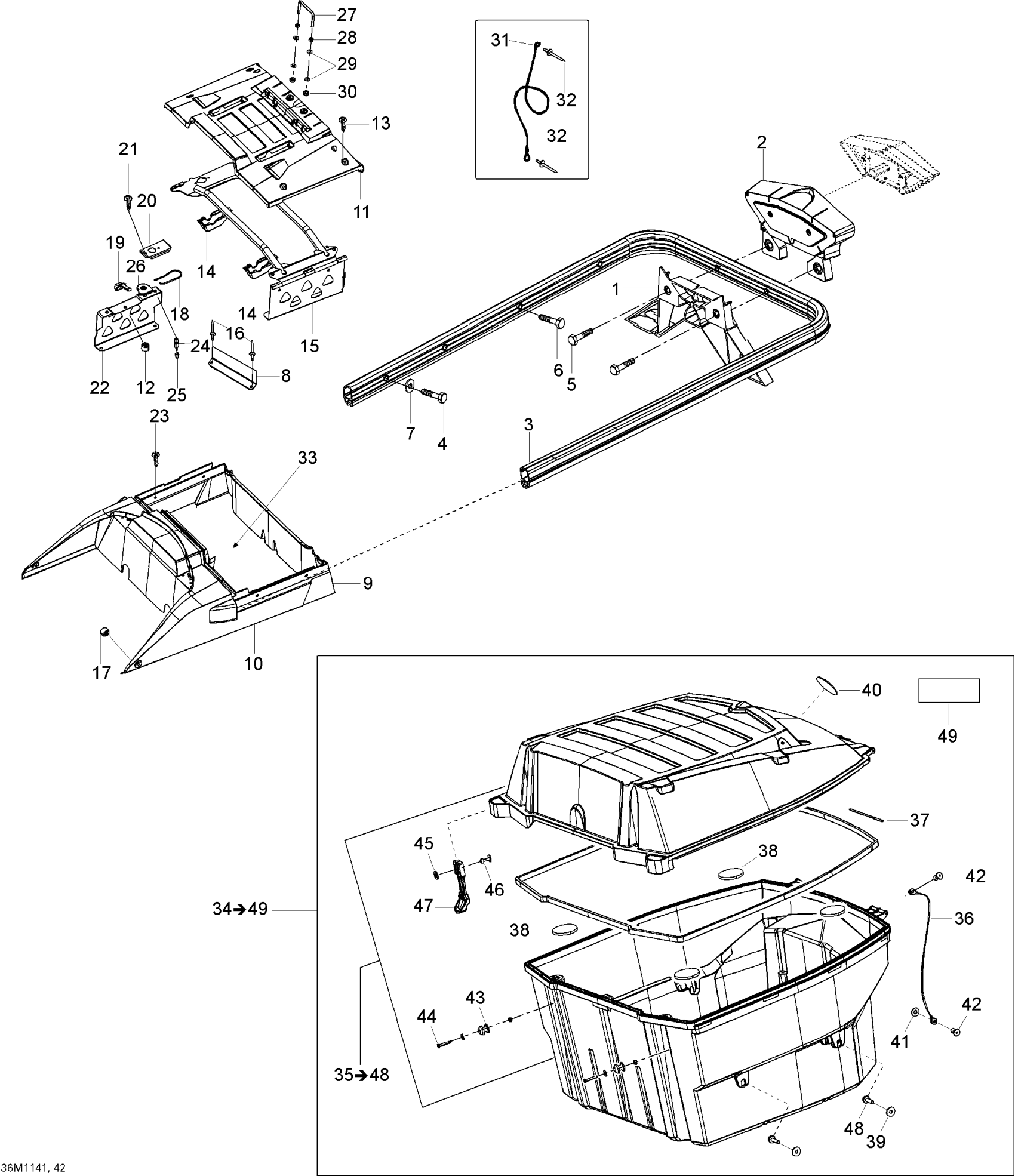

Ski-Doo Expedition SE 600HOETEC XU, 2011 Luggage Rack Diagram

Rear Light Support

Rear Light Cover

Black, Rear Bumper | WT

Hex. Flange Screw M6 X 16, Scotch Grip

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

Socket Head Screw M6 X 20, Scotch Grip

Flat Washer 6 mm

Cable Support Plate

Storage Box Ass'y

Storage Box

Storage Box Cover

Bushing

Torx Screw M6 X 12

Cover

Lock tube

Pop Rivet 3/16"

Bushing

Latch Ass'y

Puller

Lock Pin Cover

Forming Screw M5 x 16

LOCKING PLATE (FRAME) - Call your local BRP dealership

Hex. Flange Screw M6 X 16, Scotch Grip

LOCK PIN - Call your local BRP dealership

Elastic Flange Nut M6 X 1.0

Lock Pin Guide

FASTENER PIN - Call your local BRP dealership

Hex. Nut M6

Washer

Elastic Stop Nut M6

Seat Retainer Cable

Pop Rivet 3/16"

Foam

Cargo Box Ass'y | Model-SE

Not Available As Spare Part - Friction Washer

Seat Retainer Cable

Pin

Foam

Flat Washer 6 mm

BRP Logo 48 mm

Washer M5

Black, Rivet

Counter Roller

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

Washer

Black Rivet

Latch-Panel

Hex. Flange Screw M6 X 20, Scotch Grip

Not Available As Spare Part - Friction Washer
