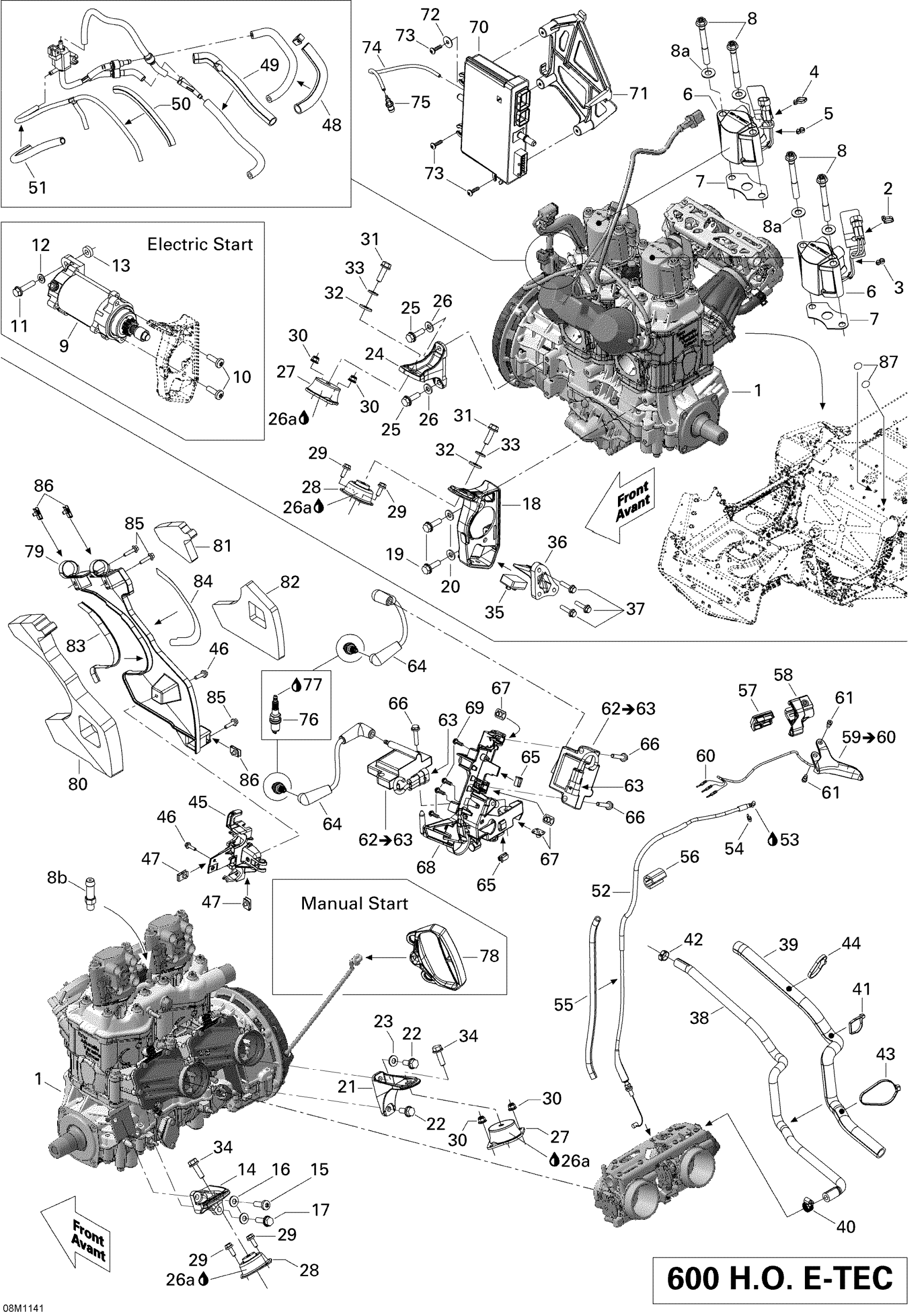

Ski-Doo Expedition SE 600HOETEC XU, 2011 01- Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie Wrap 94 mm | 4X4

293750001

$1.03

3

Tie Wrap 142 mm

293750002

$1.25

4

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

Tie Wrap 142 mm

293750002

$1.25

6

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

7

Gasket

420430930

$4.99

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

8a

Flat Washer 10 mm

234001410

$1.26

8b

Hose Nipple

420924724

$14.83

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Rear Support, PTO

512060478

$31.99

15

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

16

Conical Spring Washer M8

234281474

$1.48

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

18

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

19

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

20

Conical Spring Washer M8

234281474

$1.48

21

Rear Support, MAG

512060559

$31.99

22

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

23

Conical Spring Washer M8

234281474

$1.48

24

Front Support, MAG

512060469

$31.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Conical Spring Washer M8

234281474

$1.48

26a

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

27

Rubber Mount

512060729

$65.99

28

Rubber Mount

512060448

$51.99

29

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

32

Yellow, Washer

503183200

$3.19

33

Conical Spring Washer M8

234281474

$1.48

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

35

Stopper

512060627

$10.33

36

Stopper Support

512060576

$29.49

37

Hex. Flange Screw M6 X 25

207562544

$1.69

38

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

Unavailable

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Norma Clamp

293650084

$4.12

41

Tie-Rap 180 mm

414115200

$0.11

42

Oetiker Clamp

293650046

$2.89

43

Tie-Rap 180 mm

414115200

$0.11

44

Tie-Rap 180 mm

414115200

$0.11

45

Solenoid Support

512060298

$14.22

46

Hex.Flange Screw M5 X 20

207652044

$1.90

47

Panel Nut M5 X 0.8

250000958

$4.23

48

Was 409901800 Tubing (13 mm)

219704400

$14.49

49

Was 409901800 Tubing (13 mm)

219704400

$14.49

50

Tubing 10 MM 1000MM Long

219704407

$2.79

51

Tubing 10 MM 1000MM Long

219704407

$2.79

52

Throttle Cable

512060624

$110.99

53

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

54

Circlip

414274500

$0.90

55

Was 409901700 Tubing (9 mm)

219704399

$84.99

56

Protector

512060313

$10.33

57

Upper Housing Ass'y

512060198

Unavailable

58

Lower Housing

512060860

$17.53

59

Handle Ass'y

512061250

$124.99

60

Male Terminal

515175232

$1.58

61

Flange Screw

732601143

$4.12

62

Ignition Coil

512060953

$132.49

63

Housing

710000568

$11.12

64

Ignition Cable, 177mm long

512061126

$28.49

65

Clip

710000992

$4.29

66

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

67

Nut Welded, M6

293100003

$9.12

68

Ignition Coils Support

512060888

$11.60

69

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

70

Calibrated Module

512060780

$749.99

71

Calibrated Module Support

512060858

$14.22

72

Flat Washer

250200040

$1.90

73

Truss Head Torx Screw K50 X 20

250000297

$2.11

74

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

75

Male Connector

414814100

$2.22

76

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

77

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

78

Starter Grip

512060136

$14.83

79

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

80

Interior Noise Foam

512060343

$20.99

81

Upper Exterior Noise Foam

512060344

$10.33

82

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

83

Heat Shield

512060574

$7.79

84

Heat Shield

512060575

$8.59

85

Hex.Flange Screw M5 X 20

207652044

$1.90

86

Panel Nut M5 X 0.8

250000958

$4.23

87

Adhesive Patch

518325560

$4.69
