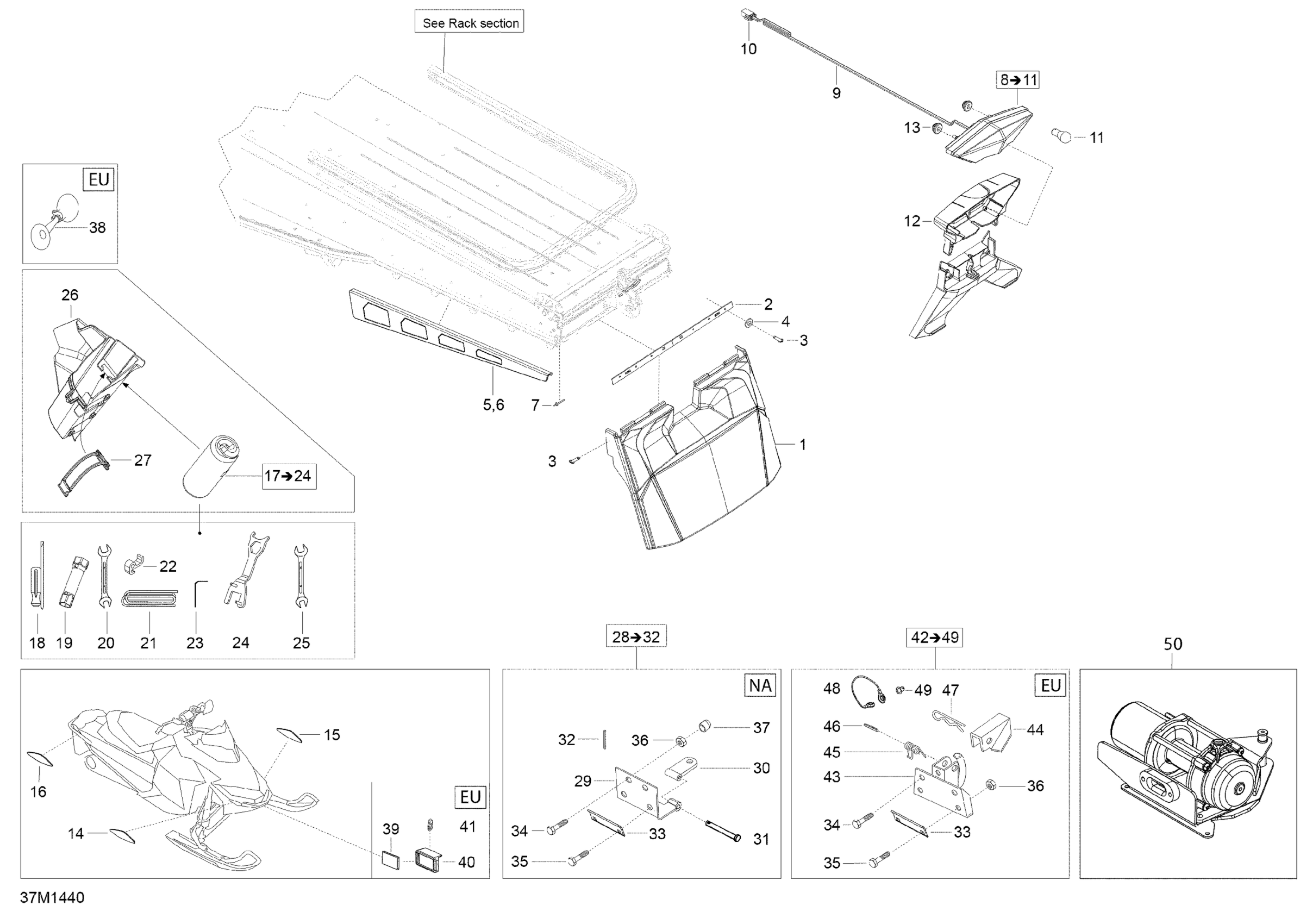

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 09- Utilities Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

1

Black, Snow Guard Long

520001410

$106.99

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

6

LH Protector

520000694

$52.99

7

Rivet Hucklok

293150163

$2.99

8

Rear Light | Includes 200 to 200a

520000848

$99.49

9

Rear Wiring Harness

520000849

$53.99

10

Male Housing, 3 Circuits

515175494

$16.18

11

Bulb

520000758

$9.10

12

Rear Light Cover

511000764

$38.99

13

Stopper Rubber

705014429

$5.95

14

Yellow, RH Reflector

520001600

$33.99

15

Yellow, LH Reflector

520001601

$33.99

16

Red, Lateral Reflector

705003412

$15.49

16

Amber, Lateral Reflector

705002423

$15.49

17

Tool Kit | Includes 20 To 28

529000065

$55.99

18

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

19

Set Key, 16/21 mm

529000046

$14.49

20

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

21

Was 412500100 Rope-Starter

219704403

$158.99

22

Starter Grip

529000060

$14.15

23

Spacing Tool

520001142

$10.52

24

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

25

Wrench

M34017

Unavailable

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$7.69

28

Hitch Ass'y | Model- North America

M5344152

Unavailable

29

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

30

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

31

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

32

Cotter Pin

41031

$7.65

33

Plate

520000727

$36.99

34

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

35

Bolt Carriage M8 X 40

207784044

$1.15

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Cover | Model-T3

28056

$5.89

38

Horn

549011291

$35.99

39

White Reflector | Model- EUROPE

M21118

$0.01

40

Deep Black, Reflector Support

520000871

$5.79

41

Tie Rap 2.4x200 | Model- EUROPE

M27120

Unavailable

42

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

43

Not Available As Spare Part - Friction Washer

Unavailable

44

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

45

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

46

Pin

41012

$6.39

47

Hair pin

41029

$4.44

48

RETAINER CABLE - Call your local BRP dealership | Model- EUROPE

M5446839

Unavailable

49

Avex Rivet

390909100

$0.30

50

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable
